Part Number # 170M6616
SKU # 2318618

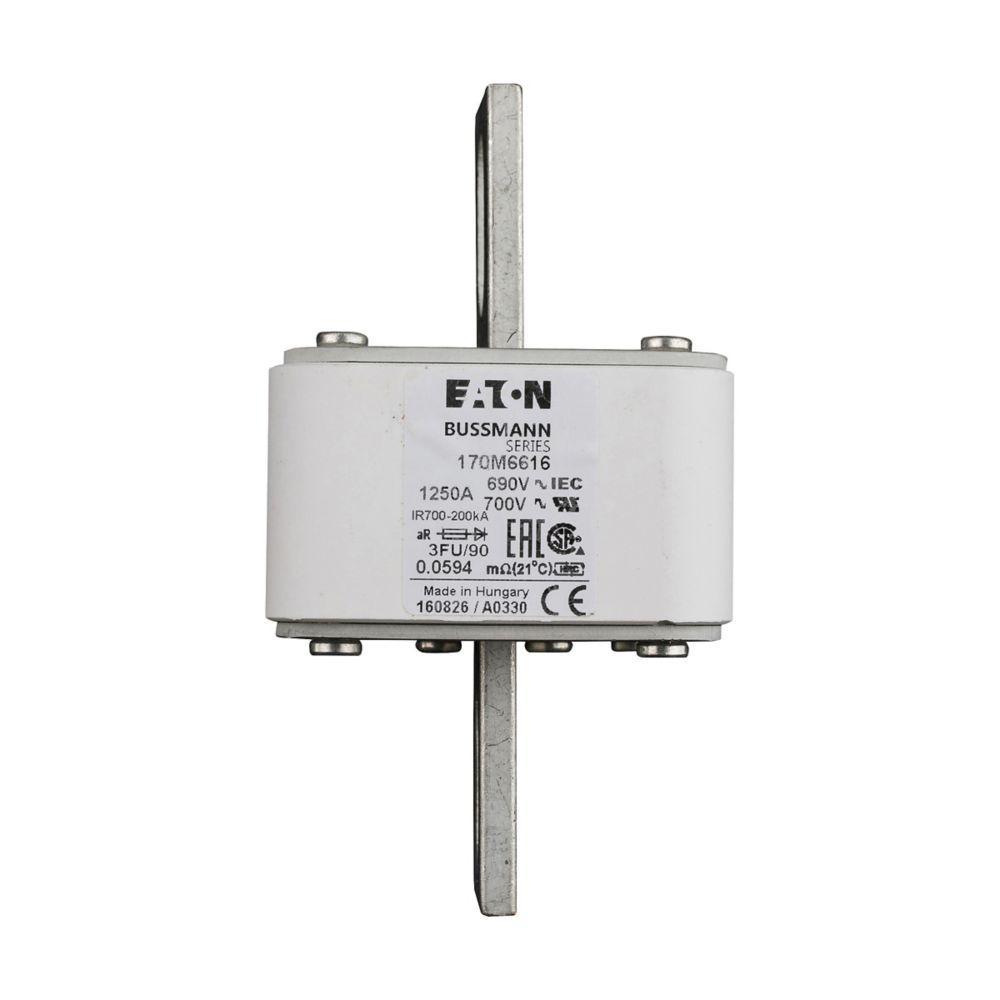

Image provided may only be a representation of
final product and may include optional equipment
170M6616
Bussmann 170M6616 High Speed Fuse
Part Number # 170M6616
SKU # 2318618
Bussmann 170M6616 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M6616 |
| SKU #: | 2318618 |
| Amperage Rating: | 1.25, 1250 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Type FU US Style |
| Country of origin: | HU |
| Material: | Ceramic |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712264846 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M6616 High Speed Fuse
Brand: Bussmann
Part Number: 170M6616
Bussmann High Speed Fuse, Type FU US Style, Series: 170M, Non-Indicating, 1250 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, Stud Mounting, Square Body, Ceramic, 135 mm L x 76 mm W x 92 mm H Body
Additional Description: BUSS-170M6616 (N) FUSE 1250A 690V 3FU/90 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 1250 A, AC 690 V, size 3, 76 x 92 x 135 mm, aR, IEC, UL
170M6616 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M6616 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Designated size 3
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M6616 Standards
UL Recognized ,IEC Rated ,IEC-Einstufung ,UL Recognized ,UL Recognized ,Classificazione IEC ,IEC nominaal ,UL Recognized ,UL Recognized ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,Homologué CEI ,Reconnu UL,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,Conforme a RoHS,Con marchio CE,RoHS-compliant,CE-markering,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Splňuje požadavky RoHS,Opatřeno značkou CE,Conformité RoHS,Marquage CESKU #2318618Part Number #170M6616UNSPSC39121625UPC00051712264846
