Part Number # 170M6766
SKU # 2220974
Image provided may only be a representation of
final product and may include optional equipment
170M6766

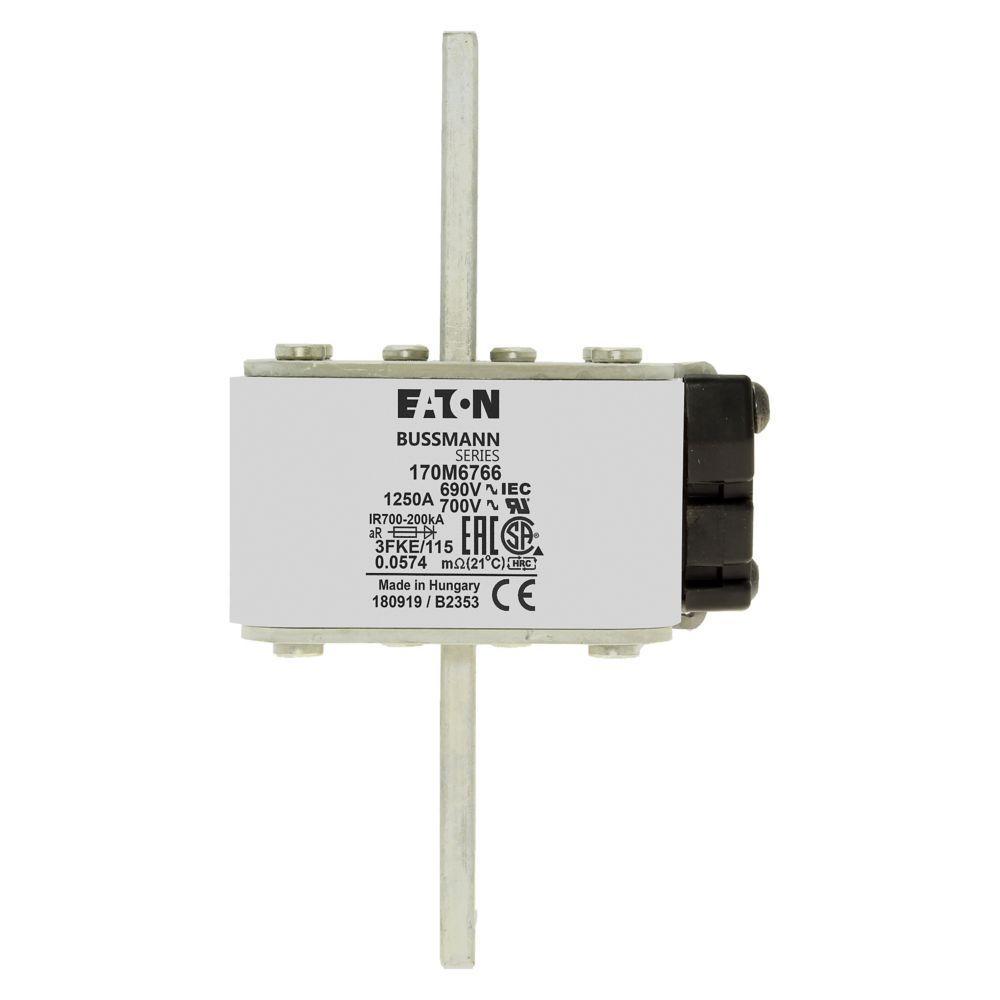

Bussmann 170M6766 High Speed Fuse
Part Number # 170M6766
SKU # 2220974
Bussmann 170M6766 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M6766 |
| SKU #: | 2220974 |
| Amperage Rating: | 1250 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End |
| Type: | Type FKE/115 US Style |
| Country of origin: | HU |
| Material: | Ceramic |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712812306 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M6766 High Speed Fuse
Brand: Bussmann
Part Number: 170M6766
Bussmann High Speed Fuse, Type FKE/115 US Style, Series: 170M, Non-Indicating, 1250 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, Stud Mounting, Square Body, Ceramic, 155 mm L x 76 mm W x 92 mm H Body
Additional Description: BUSS-170M6766 (N) FUSE 1250A 690V 3FKE/115 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 1250 A, AC 690 V, size 3, 76 x 92 x 139 mm, aR, IEC, UL, single indicator
170M6766 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M6766 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Designated size 3
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M6766 Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,UL Recognized ,IEC nominaal ,UL Recognized ,Classificazione IEC ,Zgodność z IEC ,UL Recognized ,UL Recognized ,Parametry dle IEC ,Reconnu UL ,Homologué CEI,RoHS Compliant,CE Marked,RoHS-konform,CE-Kennzeichnung,CE-markering,RoHS-compliant,Conforme a RoHS,Con marchio CE,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Splňuje požadavky RoHS,Opatřeno značkou CE,Marquage CE,Conformité RoHSSKU #2220974Part Number #170M6766UNSPSC39121625UPC00051712812306
