Part Number # 170M7107
SKU # 2294365
170M7107

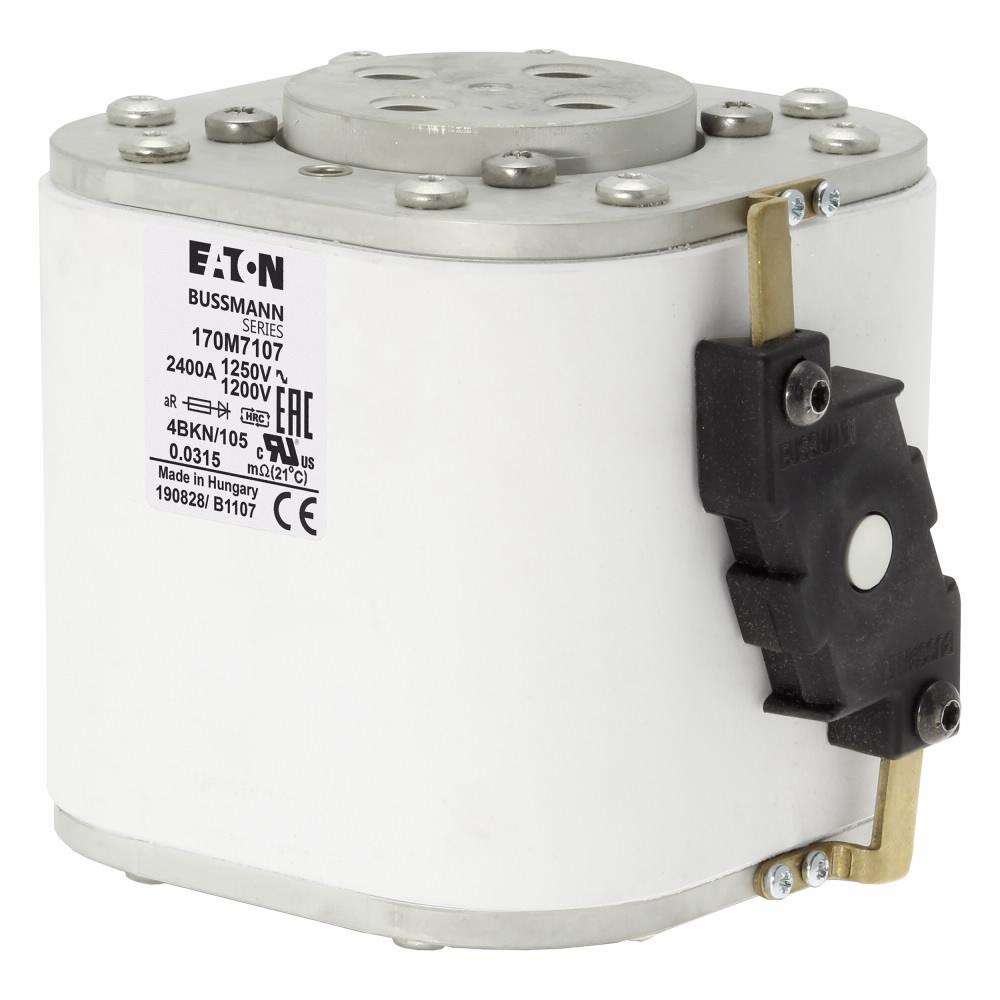

Bussmann 170M7107 Semiconductor Fuse
Part Number # 170M7107
SKU # 2294365
$4337.39 / Each
Typical price:$8820.07 / Each
Bussmann 170M7107 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M7107 |
| SKU #: | 2294365 |
| Amperage Rating: | 2400 A |
| UNSPSC: | 39121625 |
| UPC: | 00051712540421 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4337.39 / Each
Typical price:$8820.07 / Each
Quantity:
- Bussmann Semiconductor Fuse, Non-Indicating, 2400 A, 1 kV AC, 125 kA Interrupt, Class: Class AR, Flush Mount
170M7107 Application
DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications170M7107 Item Features
- Package Type: Standard
- Watt Losses: 255 W
- Clearing (I2T): Clearing at 1250V: 25000000
- Width: 4 in
- Weight: 6.421 lbs
- Length: 4.75 in
- Pre Arc (I2T): 4000000
- Height: 4.5 in
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M7107 Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,UL Recognized ,IEC nominal ,UL Recognized ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,Homologué CEI ,Reconnu UL,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,Conforme a RoHS,Con marchio CE,RoHS-compliant,CE-markering,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Splňuje požadavky RoHS,Opatřeno značkou CE,Marquage CE,Conformité RoHSSKU #2294365Part Number #170M7107UNSPSC39121625UPC00051712540421
Image provided may only be a representation of final product and may include optional equipment
