Part Number # 170M8636
SKU # 2429345
170M8636
Bussmann 170M8636 High Speed Fuse
Part Number # 170M8636
SKU # 2429345
Bussmann 170M8636 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M8636 |
| SKU #: | 2429345 |
| Amperage Rating: | 700 A |
| Body Type: | Square |
| Class: | AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 125 kA |
| Type: | Semi-Conductor |
| Country of origin: | IN |
| Mounting type: | DIN 43 620 Blade Style |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712604383 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M8636 High Speed Fuse
Brand: Bussmann
Part Number: 170M8636
Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 700 A, 1000 V, 125 kA Interrupt, Class: AR, DIN 43 620 Blade Style Mount, Square Body Type, 5.433 in L x 0.315 in W x 2.087 in H Body Size
Additional Description: BUSS-170M8636 (N) FUSE 700A 1000V 3TN/110 AR UR 700 AMP 1000V NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 700 A, AC 1000 V, DIN 3, 74 x 90 x 139 mm, aR, DIN, IEC, single indicator
170M8636 Application
Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems170M8636 Item Features
- 125 W power loss
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M8636 Standards
UL Recognized ,IEC Rated ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,UL Recognized ,UL Recognized ,IEC nominaal ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,Reconnu UL ,Homologué CEI,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,Con marchio CE,Conforme a RoHS,RoHS-compliant,CE-markering,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Opatřeno značkou CE,Splňuje požadavky RoHS,Conformité RoHS,Marquage CESKU #2429345Part Number #170M8636UNSPSC39121625UPC00051712604383

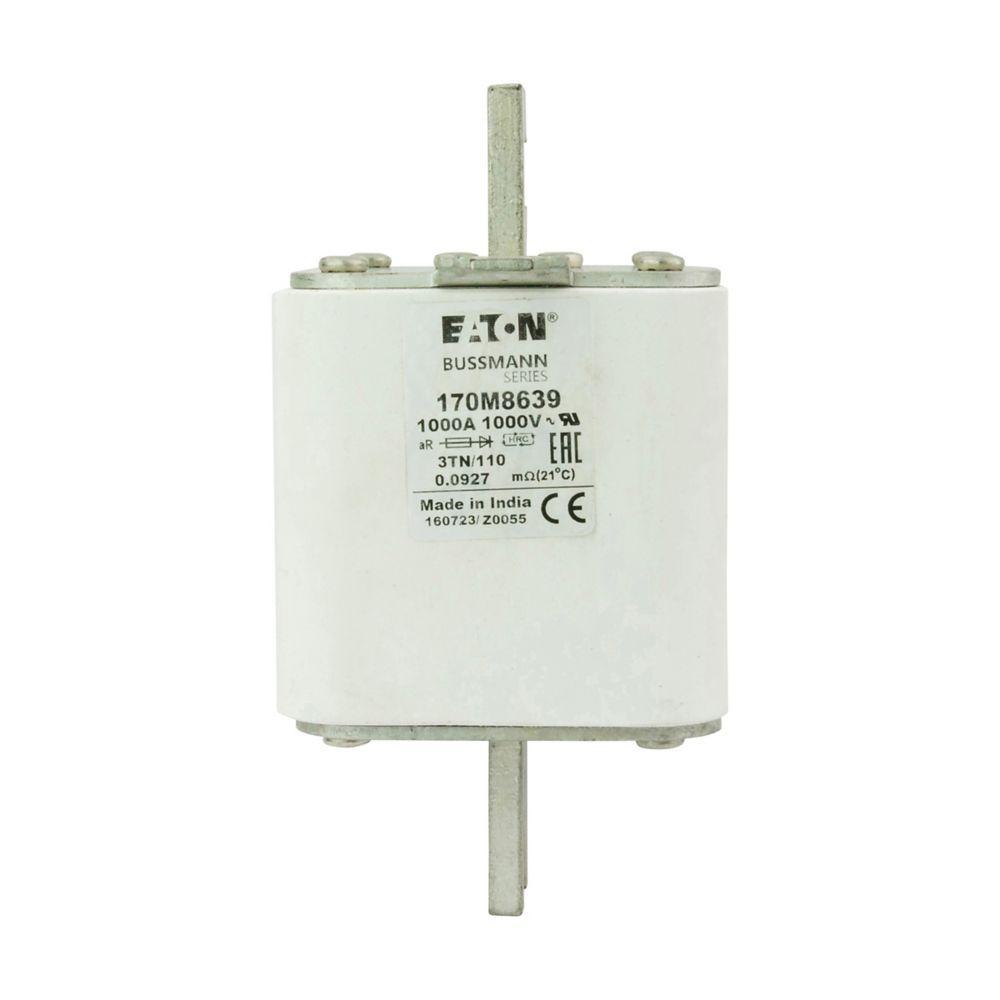

Image provided may only be a representation of final product and may include optional equipment
