Part Number # 1BS101
SKU # 161820
1BS101

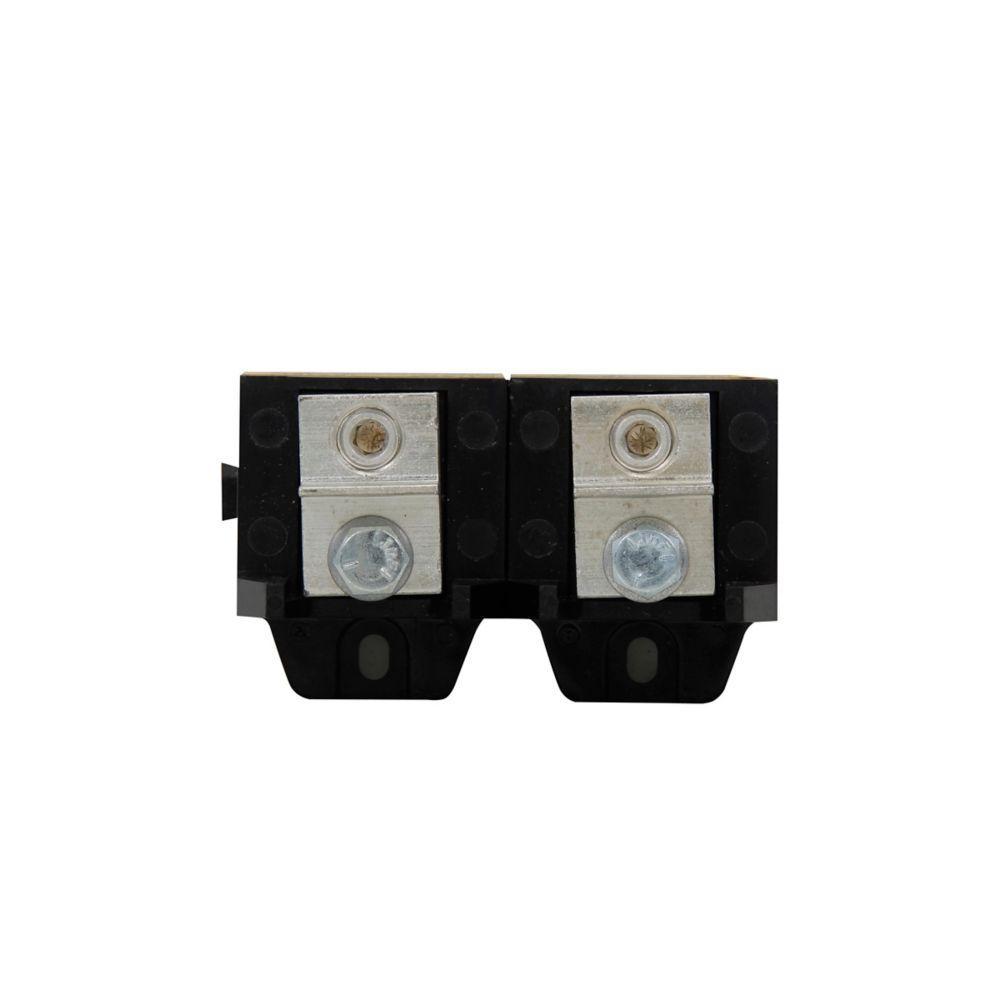

Bussmann 1BS101 Fuse Block
Part Number # 1BS101
SKU # 161820
Bussmann 1BS101 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 1BS101 |
| SKU #: | 161820 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 2 in H, 4.4 in L x 3.2 in W x 2 in H, 4.4 in L x 3.2 in W x 2.6 in H |
| Number of Poles: | 1 |
| Series: | 1BS10x |
| Suitable For Use With: | Bussmann 300/600 VAC Class T High Speed Fuse |
| Temperature Rating (Degrees F): | 150, 150 deg C |
| Type: | Modular, Modular Universal |
| Wire Size: | 14 to 2/0, 14 to 2/0 AWG |
| Connection type: | Set Screw, Setscrew |
| Country of origin: | MX |
| Material: | Molded Black Phenolic, Phenolic |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712134989 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 1BS101 Fuse Block
Brand: Bussmann
Part Number: 1BS101
Bussmann Fuse Block, Modular Universal, Series: 1BS10x, 600 V, 100 A, 1 Pole, Setscrew, 14 to 2/0 AWG Wire, Stud Mount, 150 deg C, Phenolic, Black, 4.4 in L x 3.2 in W x 2 in H
Additional Description: BUSS-1BS101 BUSS FUSEBLOCK
Catalog Description: Eaton Universal fuse block, Modular, 100 A, 150, Celsius, 150, Celsius, Set screw, 200 kAIC, Molded black phenolic base, Zinc-plated steel studs/nut/washer, Tin-plated aluminum connector, Stud, 600 V, #14-2/0 AWG Cu/Al
1BS101 Application
Electrical Assemblies, Panels and EOEMs Applications1BS101 Item Features
- Dovetail interlock
- https://www.youtube.com/watch?v=YMvqUyoETXk
1BS101 Standards
CE Certified|CSA Certified|RoHS Compliant|UL ListedSKU #161820Part Number #1BS101UNSPSC39121624UPC00051712134989
Image provided may only be a representation of final product and may include optional equipment
