1BS104

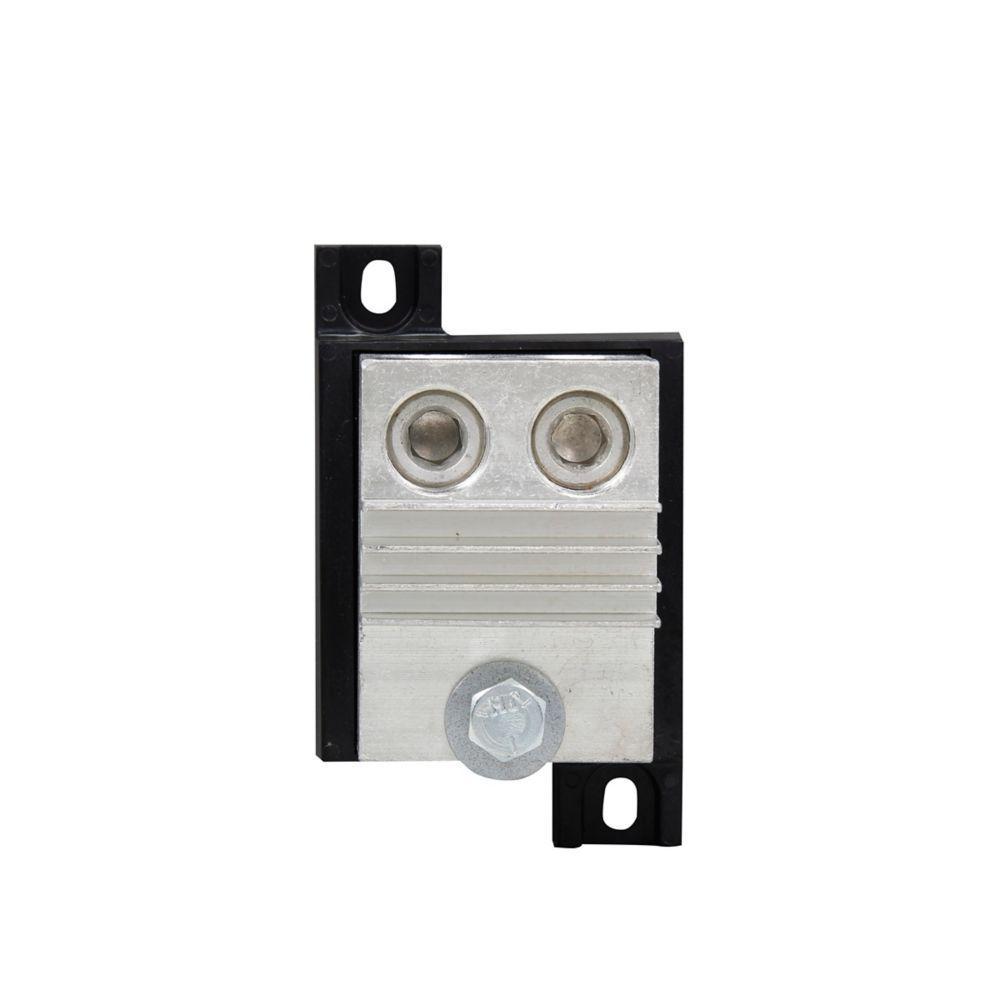

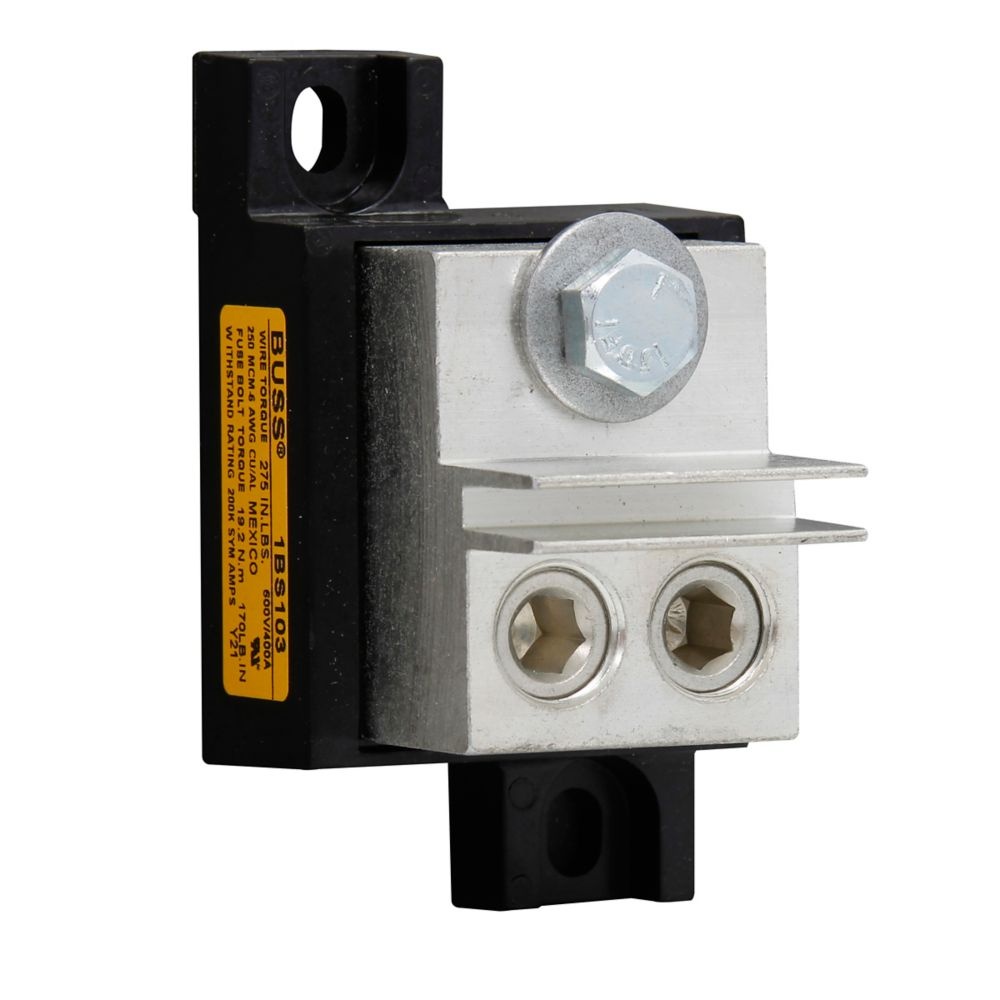

Bussmann 1BS104 Fuse Block
Part Number # 1BS104
SKU # 2273119
$458.96 / Each
Typical price:$781.97 / Each
Bussmann 1BS104 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 1BS104 |
| SKU #: | 2273119 |
| Amperage Rating: | 600, 600 A |
| Dimensions: | 2.85 in W x 2.91 in H, 2.91 in H x 2.85 in W |
| Number of Poles: | 1 |
| Series: | 1BS10x |
| Suitable For Use With: | 300/600 V AC Class T High Speed Fuse, 300/600 VAC Class T High Speed Fuse, Bussmann High Speed 300/600 VAC Class T Fuse |
| Temperature Rating (Degrees F): | 150, 150 deg C |
| Type: | Modular, Modular Universal |
| Wire Size: | 4 AWG to 500 kcmil |
| Color: | Black |
| Connection type: | Screw, Set Screw |
| Country of origin: | MX |
| Material: | Phenolic |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712135153 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$458.96 / Each
Typical price:$781.97 / Each
Quantity:
- Bussmann Fuse Block, Modular Universal, Series: 1BS10x, 600 V, 600 A, 1 Pole, Screw, 4 AWG to 500 kcmil Wire, Stud Mount, 150 deg C, For Use With: 300/600 V AC Class T High Speed Fuse, Phenolic, Black, 2.85 in W x 2.91 in H
1BS104 Specifications
- 200 kA RMS symmetrical interrupt rating, 375 in-lb torque conductor set screw, 170 in-lb fuse mounting bolt
- 4 AWG to 500 kcmil Copper/Aluminum
1BS104 Application
Electrical Assemblies, Panels and EOEMs Applications1BS104 Item Features
- https://www.youtube.com/watch?v=YMvqUyoETXk
1BS104 Standards
RoHS Compliant,Contact factorySKU #2273119Part Number #1BS104UNSPSC39121624UPC00051712135153
