Part Number # 224NHG1B
SKU # 2346986

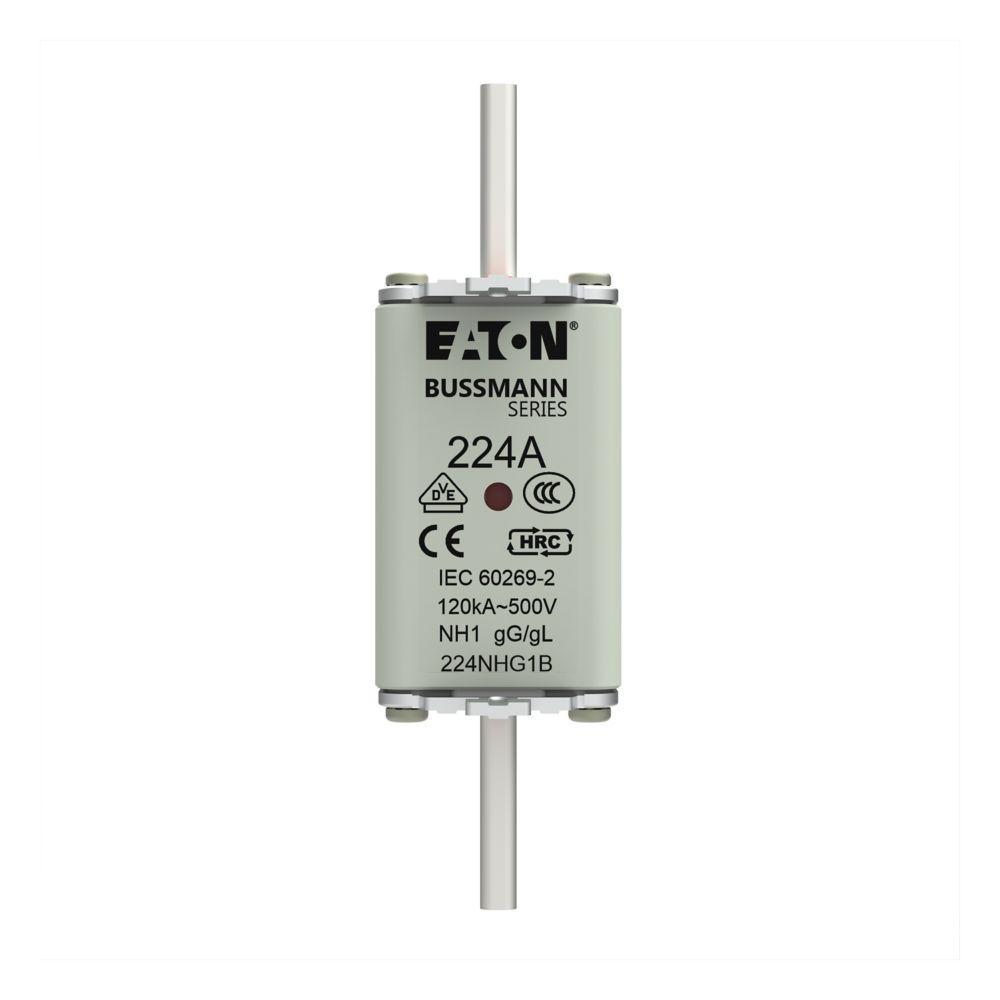

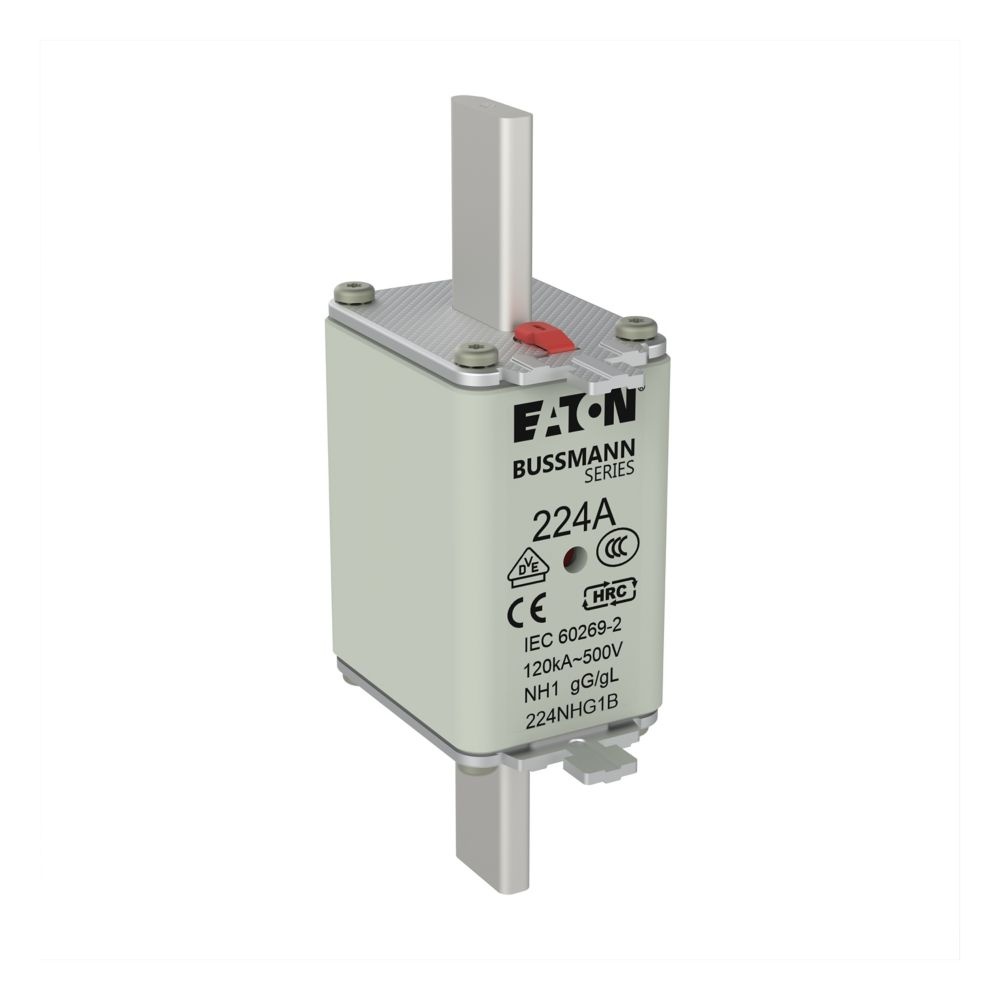

Image provided may only be a representation of
final product and may include optional equipment
224NHG1B
Bussmann 224NHG1B Fuse Link
Part Number # 224NHG1B
SKU # 2346986
Bussmann 224NHG1B Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 224NHG1B |
| SKU #: | 2346986 |
| Amperage Rating: | 224, 224 A |
| Dimensions: | 135 mm L x 52 mm W, 39.65 mm D x 135 mm H |
| Frequency Rating: | 45 to 62, 45 to 62 Hz |
| Rated Breaking Capacity: | 120, 120 kAIC |
| Series: | NHG |
| Suitable For Use With: | Class C/gG/gL Fuse |
| Type: | Size 1 Dual Indication Square, Size 1 Dual Indicator Low Voltage |
| Material: | Ceramic |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121626 |
| UPC: | 00051712626040 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 224NHG1B Fuse Link
Brand: Bussmann
Part Number: 224NHG1B
Bussmann NH Fuse Link, Size 1 Dual Indicator Low Voltage Lead Free, Series: NHG, 500 V, 224 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: Class C/gG/gL Fuse, Ceramic, 135 mm L x 52 mm W
Additional Description: BUSS-224NHG1B (N) NH FUSE 224A 500V GG/GL SIZE 1 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 224A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body
224NHG1B Application
Electrical Assemblies, Panels, EOEMs, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories, Safety and Security Systems, Power Distribution and Control Applications224NHG1B Item Features
- Voltage conducting metal live gripping lugs
- Reliable dual indicator system
- Low temperature rise
- Globally compliant
- Steatite insulator, corrosion resistant aluminum end plates and plated steel screws, full contact silver plated brass blade construction
- Cadmium and lead free
- Square body with knife blade contact
- https://www.youtube.com/watch?v=YMvqUyoETXk
224NHG1B Standards
CE Certified|CCC Certified|DIN 43620|IEC 60269|RoHS Compliant|UL Listed|VDE 0636SKU #2346986Part Number #224NHG1BUNSPSC39121626UPC00051712626040
