Part Number # 5ACLS-18R
SKU # 2409720
5ACLS-18R
Bussmann 5ACLS-18R Semiconductor Fuse
Part Number # 5ACLS-18R
SKU # 2409720
$3887.26 / Each
Typical price:$7904.74 / Each
Bussmann 5ACLS-18R Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 5ACLS-18R |
| SKU #: | 2409720 |
| Amperage Rating: | 390 A |
| Class: | R |
| Interrupt Rating: | 50 kA |
| Series: | ACLS |
| Type: | 2-Barrel |
| Country of origin: | DO |
| Mounting type: | Ampgard |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121628 |
| UPC: | 00051712527811 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3887.26 / Each
Typical price:$7904.74 / Each
Quantity:
- EATON Bussmann Current Limiting Fuse, 2-Barrel, Series: ACLS, 390 A, 5.5 kV, 50 kA Interrupt, Class: R, Ampgardâ„¢ Mount, 15.9 in L x 3 in W x 3 in H Body Size
5ACLS-18R Application
Motor Starter Applications5ACLS-18R Item Features
- Quiet safe operation CLS type current limiting fuses are designed for silent operation and elimination of flame discharges when the fuse operates
- Easy to identify operated fuse CLS type current limiting fuses are equipped with an indicator that will protrude indicating when a fuse has operated
- Space economy because the design of these fuses has eliminated flame or gas discharge, the need for exhaust control devices, vents and reinforcing is eliminated
- Complete protection provided CLS type current limiting fuses ensure positive interruption of high fault currents
- The fuse limits the magnitude of the electromechanical stresses in the protected apparatus
- They also limit the arc voltage to considerably less than three times the nominal circuit voltage
- Fatigueproof controlled crimping of the silver elements during fuse manufacture permits CLS type current limiting fuses to withstand severe duty cycling without failure
- 18R designation
5ACLS-18R Standards
UL Listed|IEEE|ANSI SpecifiedSKU #2409720Part Number #5ACLS-18RUNSPSC39121628UPC00051712527811

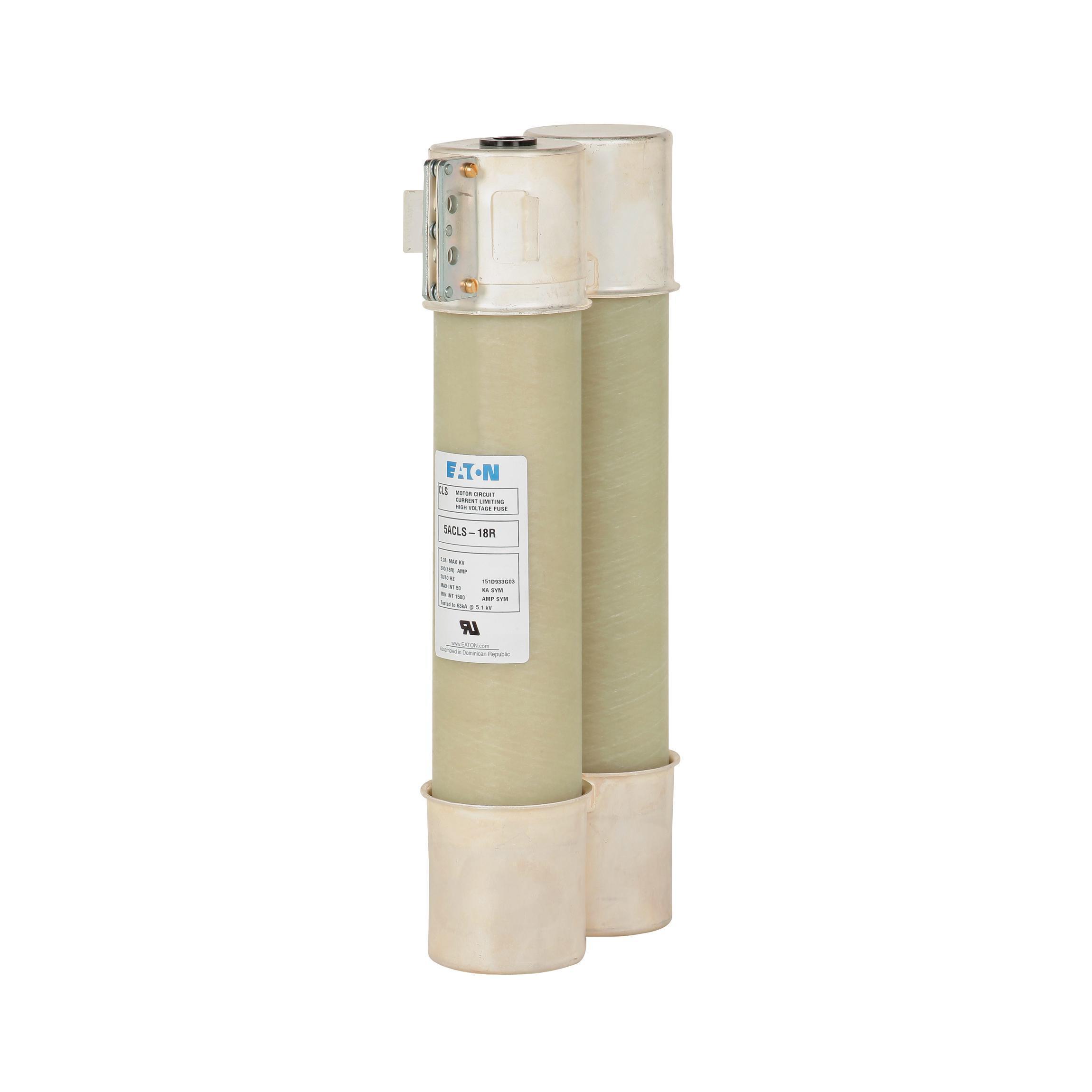

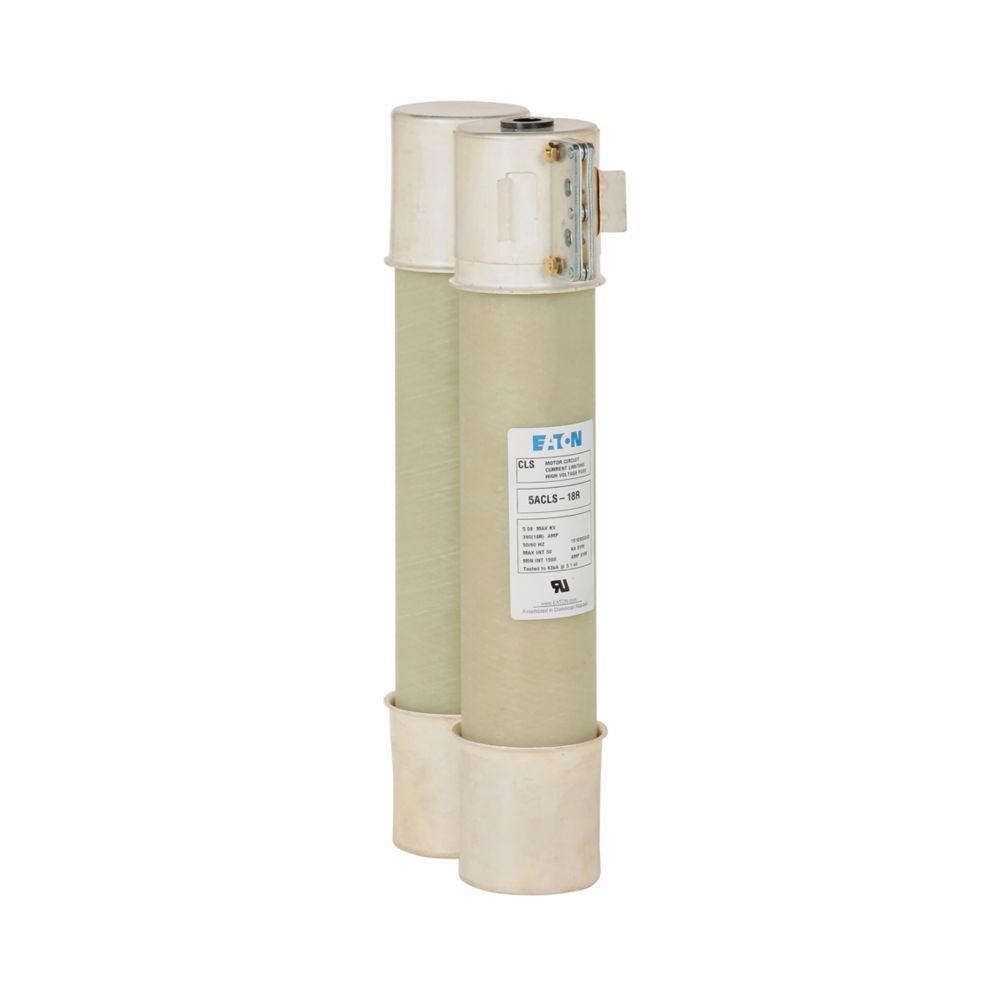

Image provided may only be a representation of final product and may include optional equipment
