Part Number # 5ACLS-6R
SKU # 2424734
5ACLS-6R
Bussmann 5ACLS-6R Current Limiting Fuse
Part Number # 5ACLS-6R
SKU # 2424734
$1980.24 / Each
Typical price:$4026.82 / Each
Bussmann 5ACLS-6R Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 5ACLS-6R |
| SKU #: | 2424734 |
| Amperage Rating: | 170 A |
| Class: | R |
| Interrupt Rating: | 50 kA |
| Series: | ACLS, CLS |
| Type: | Medium Voltage, Medium Voltage Single Barrel |
| Country of origin: | DO |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121628 |
| UPC: | 00051712527880 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1980.24 / Each
Typical price:$4026.82 / Each
Quantity:
Bussmann 5ACLS-6R Current Limiting Fuse
Brand: Bussmann
Part Number: 5ACLS-6R
Bussmann Current Limiting Fuse, Medium Voltage, Series: CLS, 170 A, 5.5 kV, 50 kA Interrupt, Class: R, 3 in Dia x 15.9 in L Body
Additional Description: BUSS-5ACLS-6R (N) 5.08KV, CLS, 6R, 1BAR, CUR LIM FUSE, NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series 5ACLS fuse, Single barrel, 6R designation, 4.8 kV, 170A, 50 kAIC, Motor start, ACLS, Class R, Ampgard, Single barrel
5ACLS-6R Application
Motor Starters and Circuit Protection Applications5ACLS-6R Includes
End Fittings5ACLS-6R Item Features
- Current limiting R-rated fuses are physically dimensioned for easy installations in existing hardware
- These fuses are in a self-contained, non-venting package for installations indoors/outdoors in an enclosure
- These are designed for silent operation and elimination of flame discharges when the fuse operates
- Fuses are equipped with an indicator that will protrude indicating when a fuse has operated
- Space economy because the design of these fuses has eliminated flame or gas discharge, the need for exhaust control devices, vents and reinforcing is eliminated
- These fuses ensure positive interruption of high fault currents
- Controlled "crimping" of the silver elements during fuse manufacture permits CLS type current limiting fuses to withstand severe duty cycling without failure
- https://www.youtube.com/watch?v=YMvqUyoETXk
5ACLS-6R Standards
IEEE Std. C37.41,Not Applicable,Contact ManufacturerSKU #2424734Part Number #5ACLS-6RUNSPSC39121628UPC00051712527880

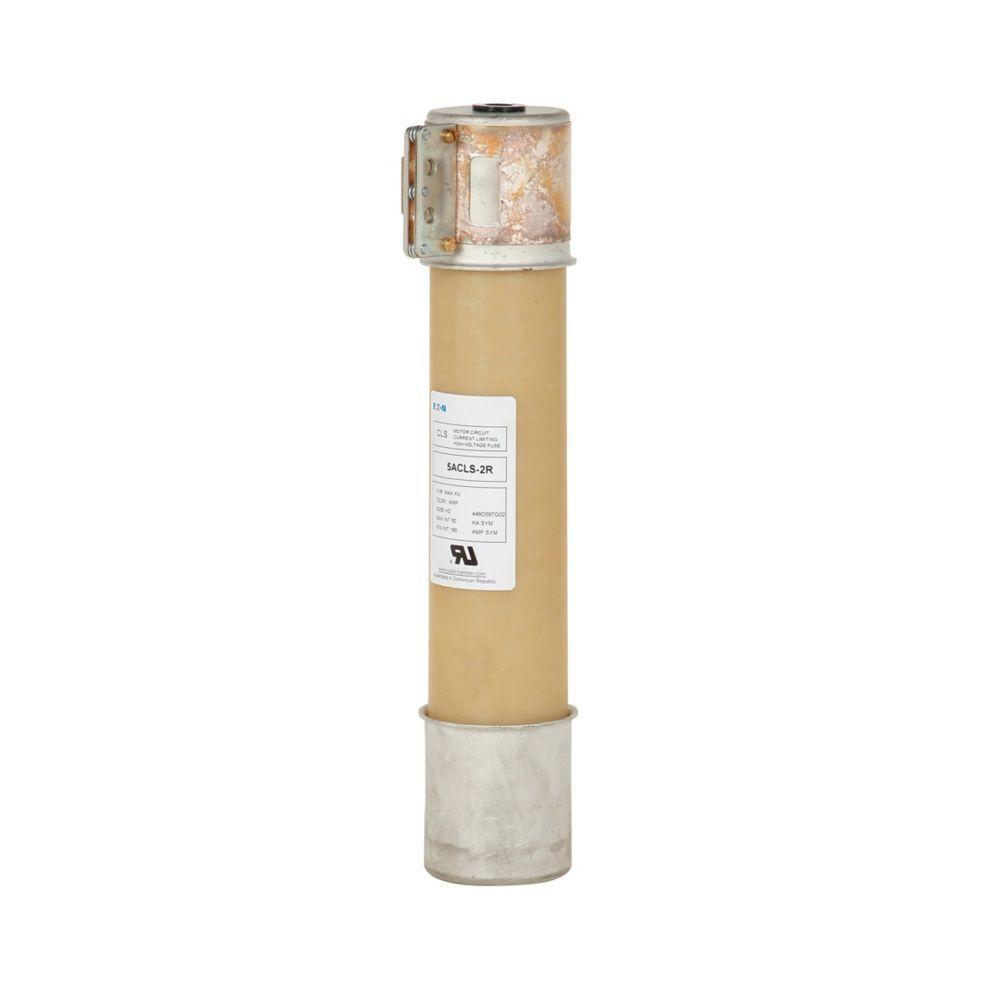

Image provided may only be a representation of final product and may include optional equipment
