ABC-15-R

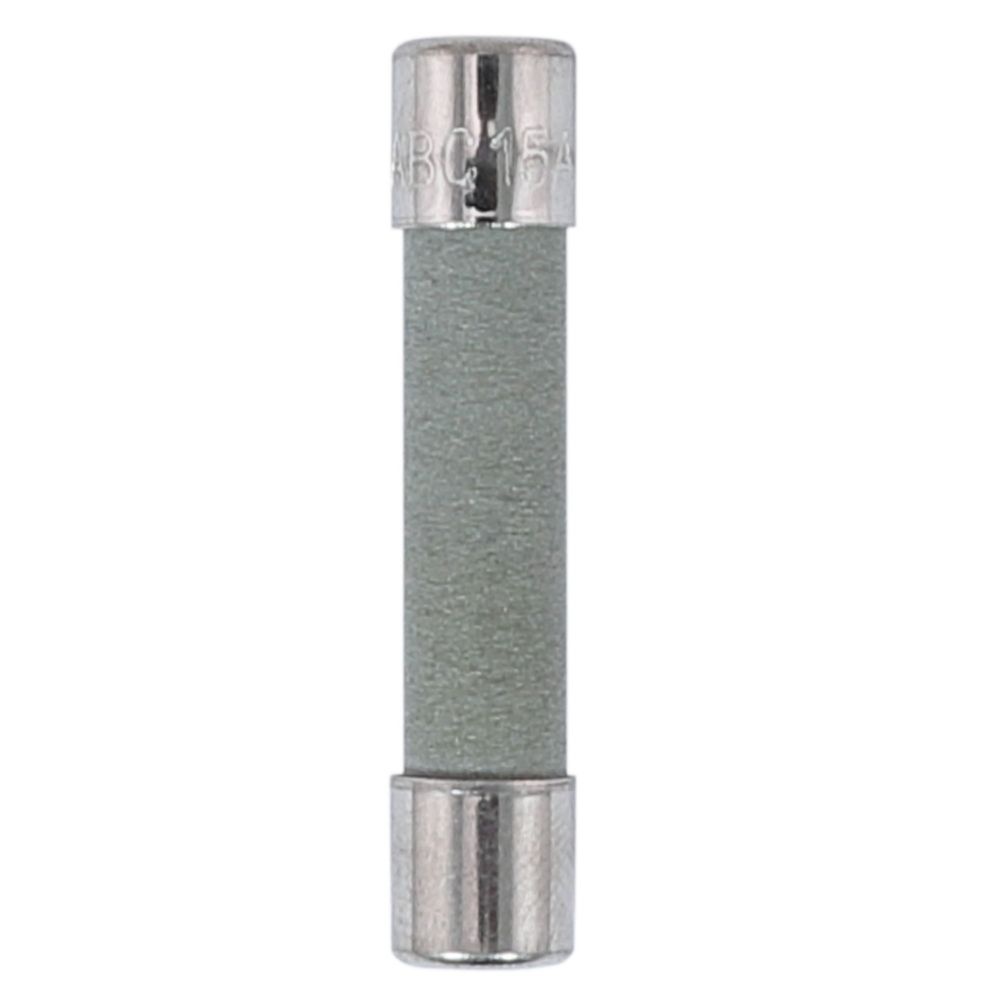

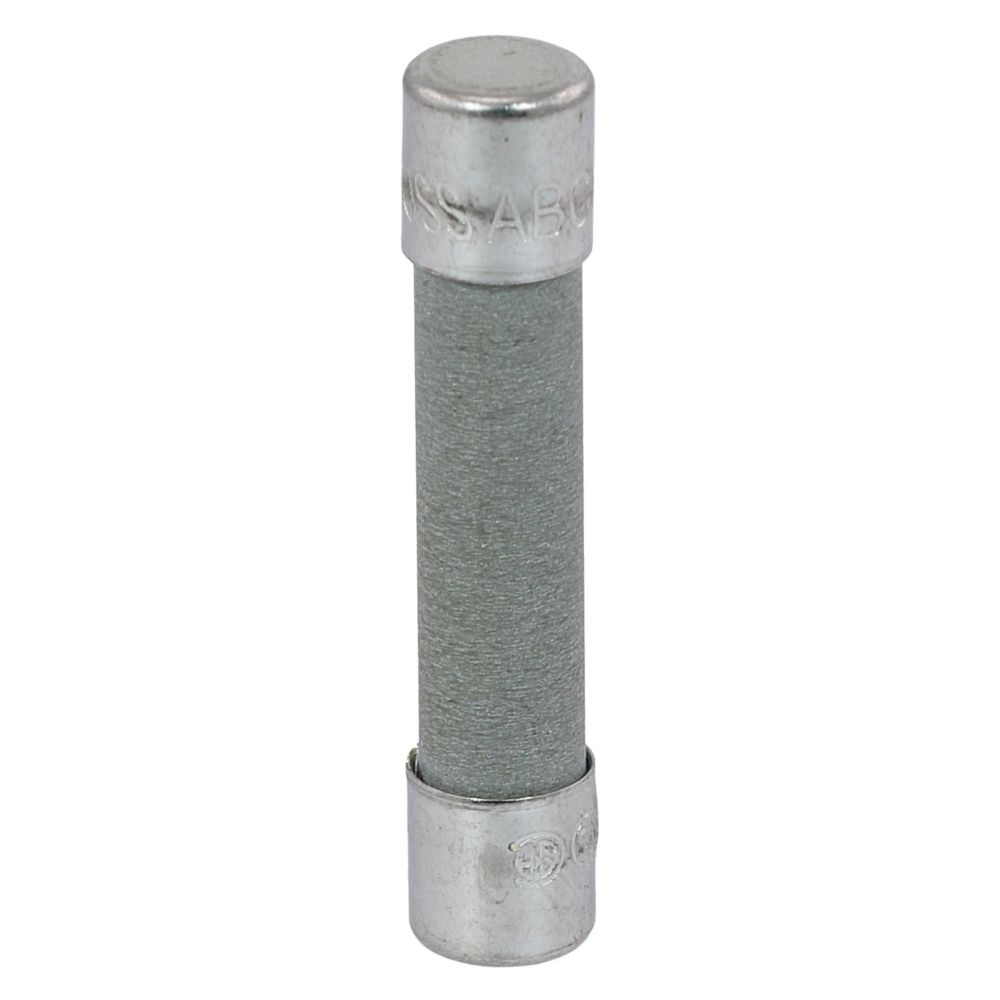

Bussmann ABC-15-R Fast Acting Fuse
Part Number # ABC-15-R
SKU # 2228986
$13.71 / 5Each
Typical price:$20.15 / Each
Bussmann ABC-15-R Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | ABC-15-R |
| SKU #: | 2228986 |
| Amperage Rating: | 15, 15 A |
| Body Type: | Cylindrical |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 750 A, 10 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 4 hr, 60 min, 120 s |
| Series: | ABC |
| Terminal Type: | Ferrule |
| Type: | Small Dimension |
| Country of origin: | CN |
| Material: | Ceramic |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121611 |
| UPC: | 00051712646192 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$13.71 / 5Each
Typical price:$20.15 / Each
Quantity:
- Bussmann Fast Acting Fuse, Small Dimension, Series: ABC, Non-Indicating, Non-Rejection, 15 A, 250 VAC, 125 VDC, 750 A, 10 kA Interrupt, 4 hr, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body
ABC-15-R Application
Electronic Circuit ApplicationsABC-15-R Item Features
- Ceramic body allows for higher amp/volt rating combinations
- 750 A at 250 VAC, 10 kA at 125 VAC/VDC interrupt rating
- 4 hr minimum at 100%, 60 min maximum at 135%, 120 sec maximum at 200% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
ABC-15-R Standards
RoHS Compliant|CE Certified|Standard 248-14|UL Listed|Guide JDYX UL File No. E19180|CSA Class 1422-01/1422-30|CSA File No. 53787SKU #2228986Part Number #ABC-15-RUNSPSC39121611UPC00051712646192
