Part Number # ABC-25-R
SKU # 2316142
Image Disclaimers Message
Brand: Bussmann
ABC-25-R

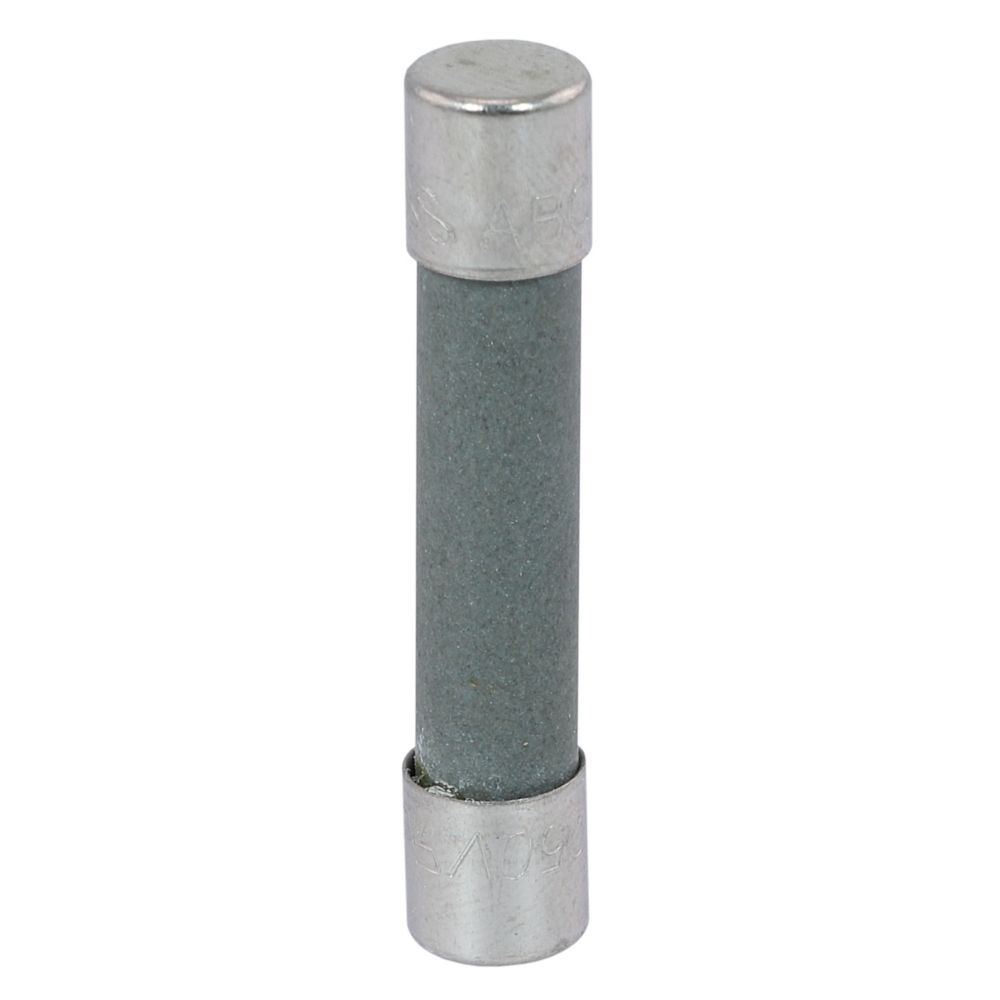

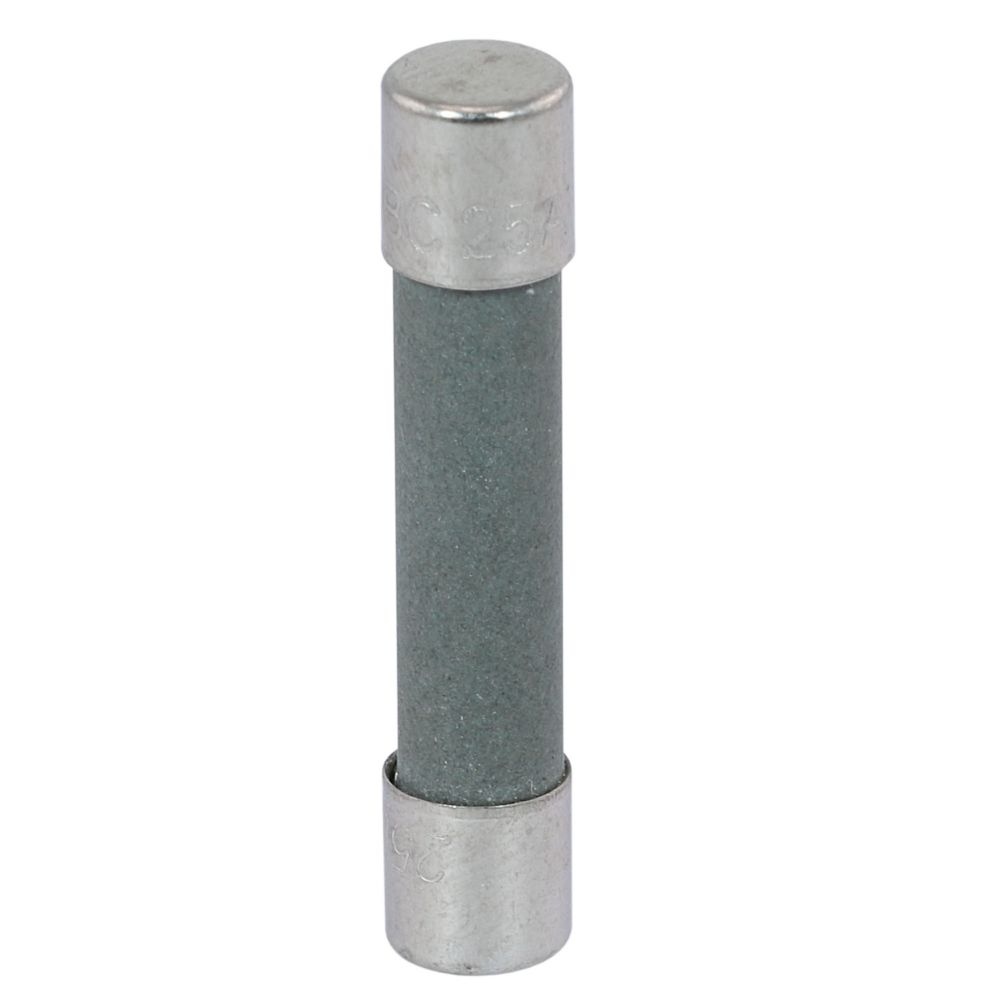

Bussmann ABC-25-R Fast Acting Fuse
Part Number # ABC-25-R
SKU # 2316142
$19.00 / 5Each
Typical price:$32.35 / Each
Bussmann ABC-25-R Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | ABC-25-R |
| SKU #: | 2316142 |
| Amperage Rating: | 25, 25 A |
| Body Type: | Cylindrical |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 A, 400 A, 1 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 4 hr, 60 min, 120 s |
| Series: | ABC |
| Terminal Type: | Ferrule |
| Type: | Small Dimension |
| Country of origin: | CN |
| Material: | Ceramic |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121611 |
| UPC: | 00051712646239 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$19.00 / 5Each
Typical price:$32.35 / Each
Quantity:
- Bussmann Fast Acting Fuse, Small Dimension, Series: ABC, Non-Indicating, Non-Rejection, 25 A, 250 VAC, 125 VDC, 200 A, 400 A, 1 kA Interrupt, 4 hr, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body
ABC-25-R Application
Electronic Circuit ApplicationsABC-25-R Item Features
- Ceramic body allows for higher amp/volt rating combinations
- 200 A at 250 VAC, 1 kA at 125 VAC, 400 A at 125 VDC, 1 kA at 75 VDC interrupt rating
- 4 hr minimum at 100%, 60 min maximum at 135%, 120 sec maximum at 200% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
ABC-25-R Standards
CSA Class 1422-01/1422-30|CSA File No. 53787|UL Listed|UL 248-14 Guide JDYX2 UL File No. E19180|CE CertifiedSKU #2316142Part Number #ABC-25-RUNSPSC39121611UPC00051712646239
