AGC-25-R
Bussmann AGC-25-R Fast Acting Fuse
Part Number # AGC-25-R
SKU # 2362231
$9.43 / 5Each
Typical price:$16.05 / Each
Bussmann AGC-25-R Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | AGC-25-R |
| SKU #: | 2362231 |
| Body Type: | Cylindrical |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 60 min, 120 s |
| Series: | AGC |
| Terminal Type: | Ferrule |
| Type: | Small Dimension |
| Mounting type: | Holder |
| UNSPSC: | 39121607 |
| UPC: | 00051712655101 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9.43 / 5Each
Typical price:$16.05 / Each
Quantity:
Bussmann AGC-25-R Fast Acting Fuse
Brand: Bussmann
Part Number: AGC-25-R
Bussmann Fast Acting Fuse, Small Dimension, Series: AGC, Non-Indicating, Non-Rejection, 25 A, 32 V AC, 1 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body
Additional Description: BUSS-AGC-25-R BUSS SMALL DIMENSION FUSE
Catalog Description: Eaton GBB Series Very fast-acting fuse, 9A, 250 Vac, 125 Vdc, R
AGC-25-R Application
Electronic Circuit ApplicationsAGC-25-R Item Features
- Fast acting for maximum component protection
- Wide amp/volt ratings allow versatility of protecting electronic circuits
- 1 kA at 32 VAC interrupt rating
- 60 min maximum at 135%, 120 sec maximum at 200% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
AGC-25-R Standards
RoHS Compliant|CSA Certified|CSA Class 1422-01|CSA File No. 053787|UL Listed|UL 248-14|Guide JDYX2 UL File No. E19180SKU #2362231Part Number #AGC-25-RUNSPSC39121607UPC00051712655101

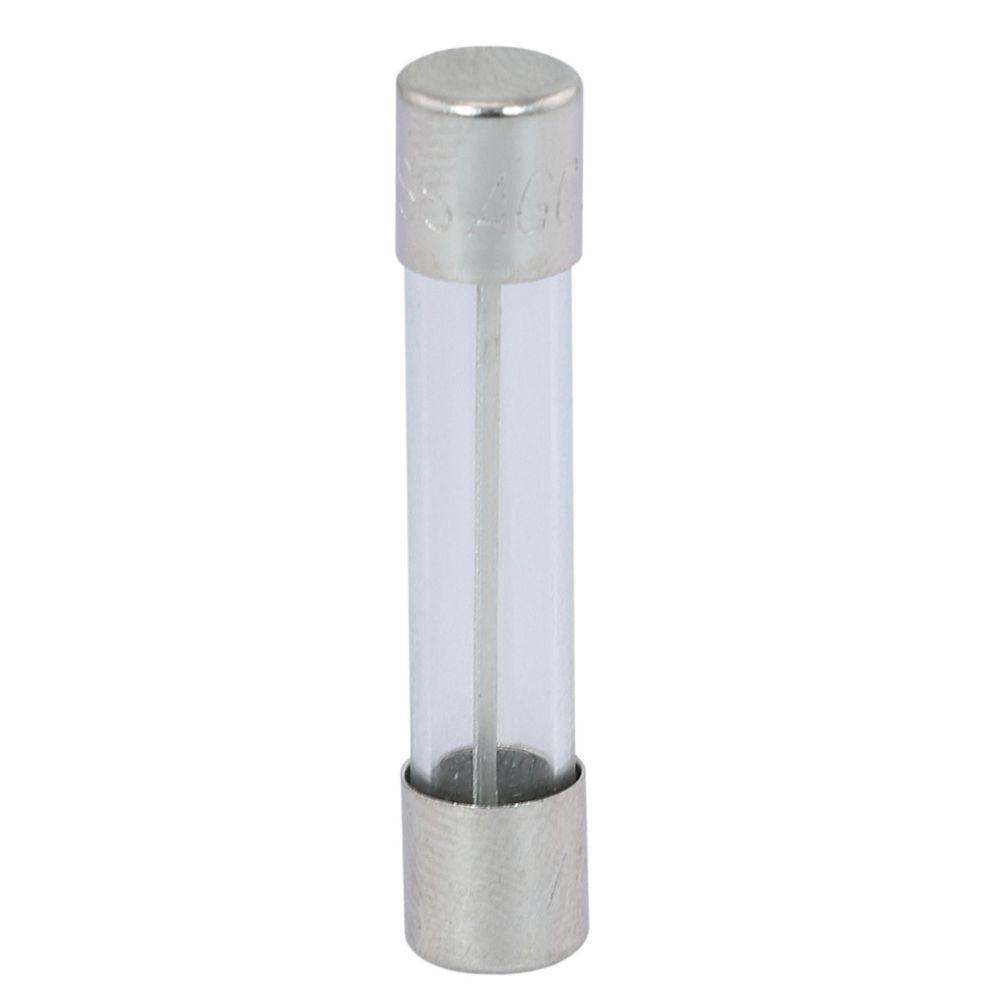

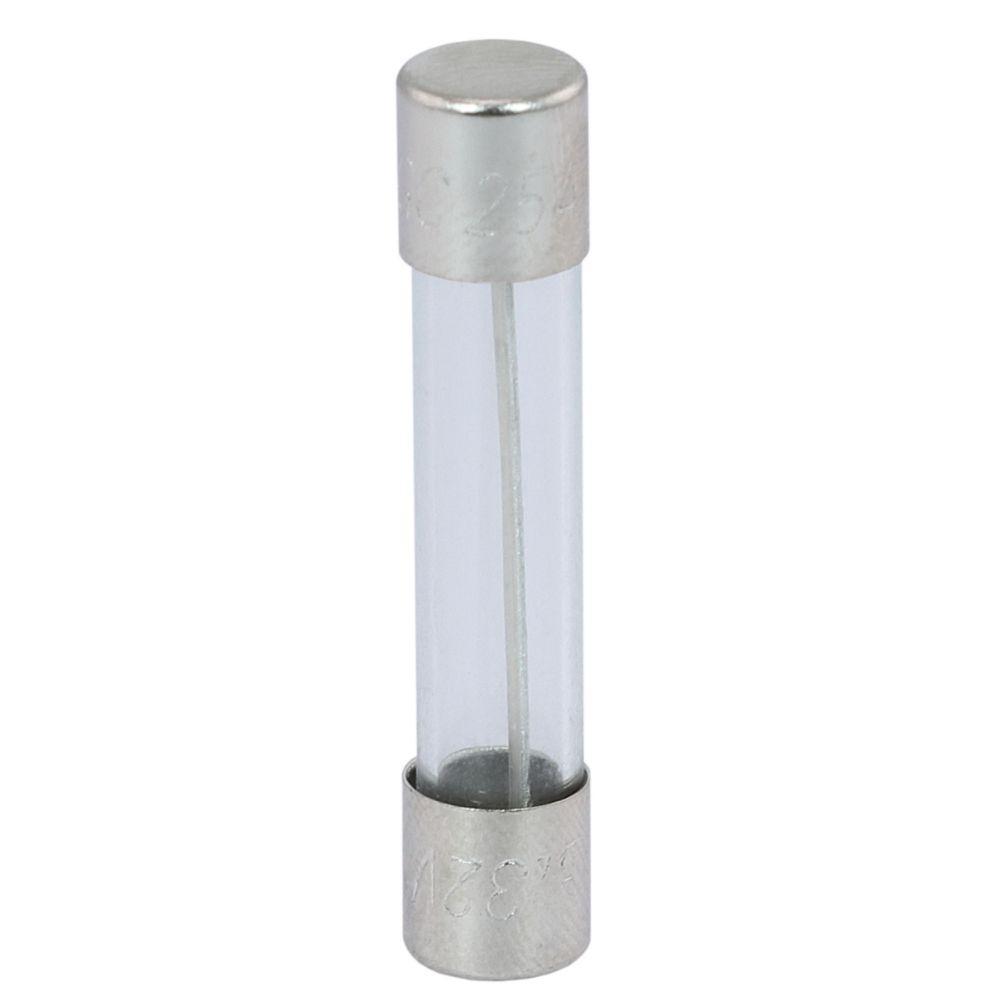

Image provided may only be a representation of final product and may include optional equipment
