Part Number # AGC-6-R
SKU # 2259487
Image Disclaimers Message
AGC-6-R

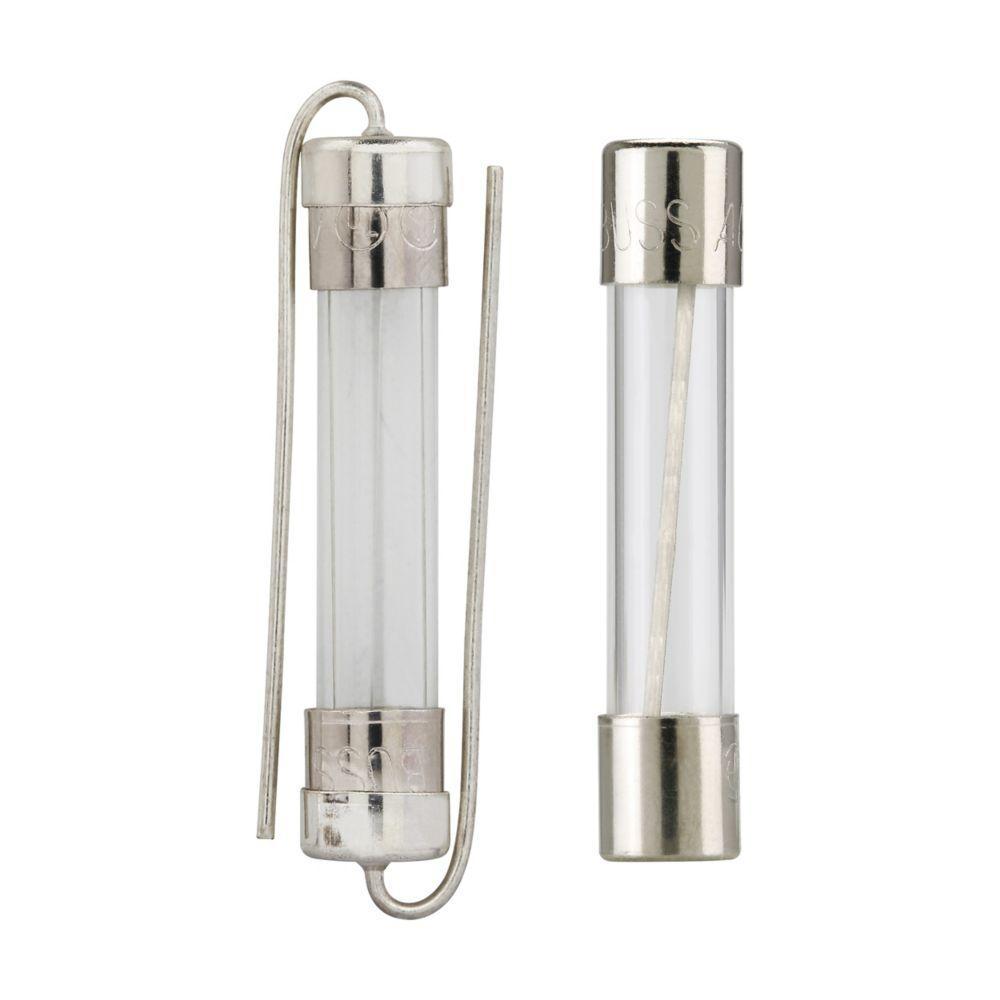

Bussmann AGC-6-R Fast Acting Fuse
Part Number # AGC-6-R
SKU # 2259487
$8.86 / 5Each
Typical price:$13.00 / Each
Bussmann AGC-6-R Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | AGC-6-R |
| SKU #: | 2259487 |
| Amperage Rating: | 6, 6 A |
| Body Type: | Cylindrical |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 A, 10 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 60 min, 120 s |
| Series: | AGC |
| Terminal Type: | Ferrule |
| Type: | Small Dimension |
| Country of origin: | TW |
| Material: | Glass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121607 |
| UPC: | 00051712655248 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.86 / 5Each
Typical price:$13.00 / Each
Quantity:
- Bussmann Fast Acting Fuse, Small Dimension, Series: AGC, Non-Indicating, Non-Rejection, 6 A, 250 V AC, 200 A, 10 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body
AGC-6-R Application
Electronic Circuit ApplicationsAGC-6-R Item Features
- Fast acting for maximum component protection
- Wide amp/volt ratings allow versatility of protecting electronic circuits
- 200 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- 60 min maximum at 135%, 120 sec maximum at 200% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
AGC-6-R Standards
RoHS Compliant|CSA Certified|CSA Class 1422-01|UL File No. 053787|CE Certified|UL Listed|UL 248-14 Guide JDYX|UL File No. E19180SKU #2259487Part Number #AGC-6-RUNSPSC39121607UPC00051712655248
