Part Number # AGC-7-R
SKU # 2353427
Image Disclaimers Message
Brand: Bussmann
AGC-7-R

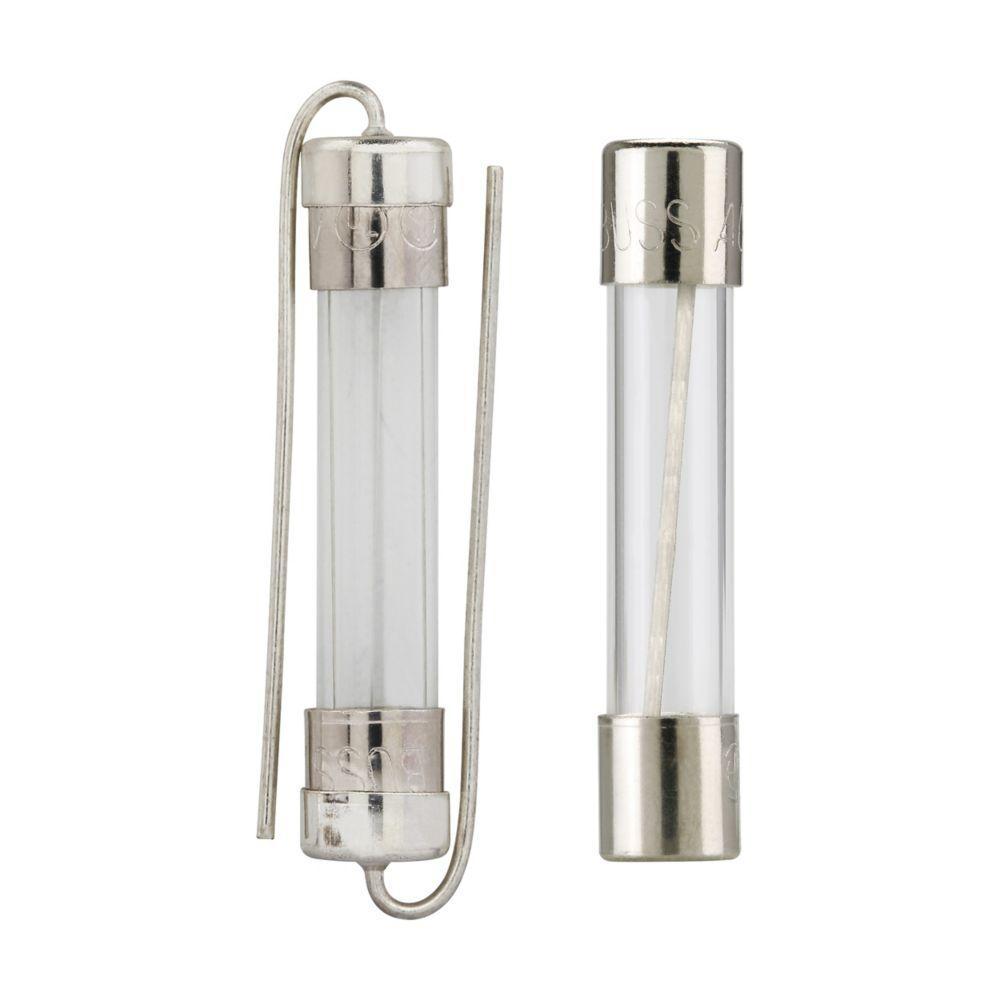

Bussmann AGC-7-R Fast Acting Fuse
Part Number # AGC-7-R
SKU # 2353427
$8.86 / 5Each
Typical price:$15.10 / Each
Bussmann AGC-7-R Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | AGC-7-R |
| SKU #: | 2353427 |
| Amperage Rating: | 7, 7 A |
| Body Type: | Cylindrical |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 A, 200 A, 10 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 2, 2 min, 60 min, 120 s |
| Series: | AGC |
| Terminal Type: | Ferrule |
| Type: | Fast Acting, Small Dimension |
| Country of origin: | TW |
| Material: | Glass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121607 |
| UPC: | 00051712655279 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.86 / 5Each
Typical price:$15.10 / Each
Quantity:
- Edison, AGC-7-R, Electronic Fuse, Fast Acting, Series: AGC, Non-Indicating, Non-Rejection, 7 A, 250 V AC, 200 A Interrupt, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body
AGC-7-R Application
For electronic circuit applicationsAGC-7-R Item Features
- Original electronic glass tube fuse
- Fast-acting for maximum protection
- Wide amp/volt ratings allow versatility of protecting electronic circuits
- Nickel-plated brass endcap construction
- Size 3AG
- AC interrupting rating of 10 kA at 125 V
- 200 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- 60 min maximum at 135%, 120 sec maximum at 200% response time
AGC-7-R Standards
RoHS Compliant,CE MarkedSKU #2353427Part Number #AGC-7-RUNSPSC39121607UPC00051712655279
