Part Number # ANL-400
SKU # 2213153
ANL-400

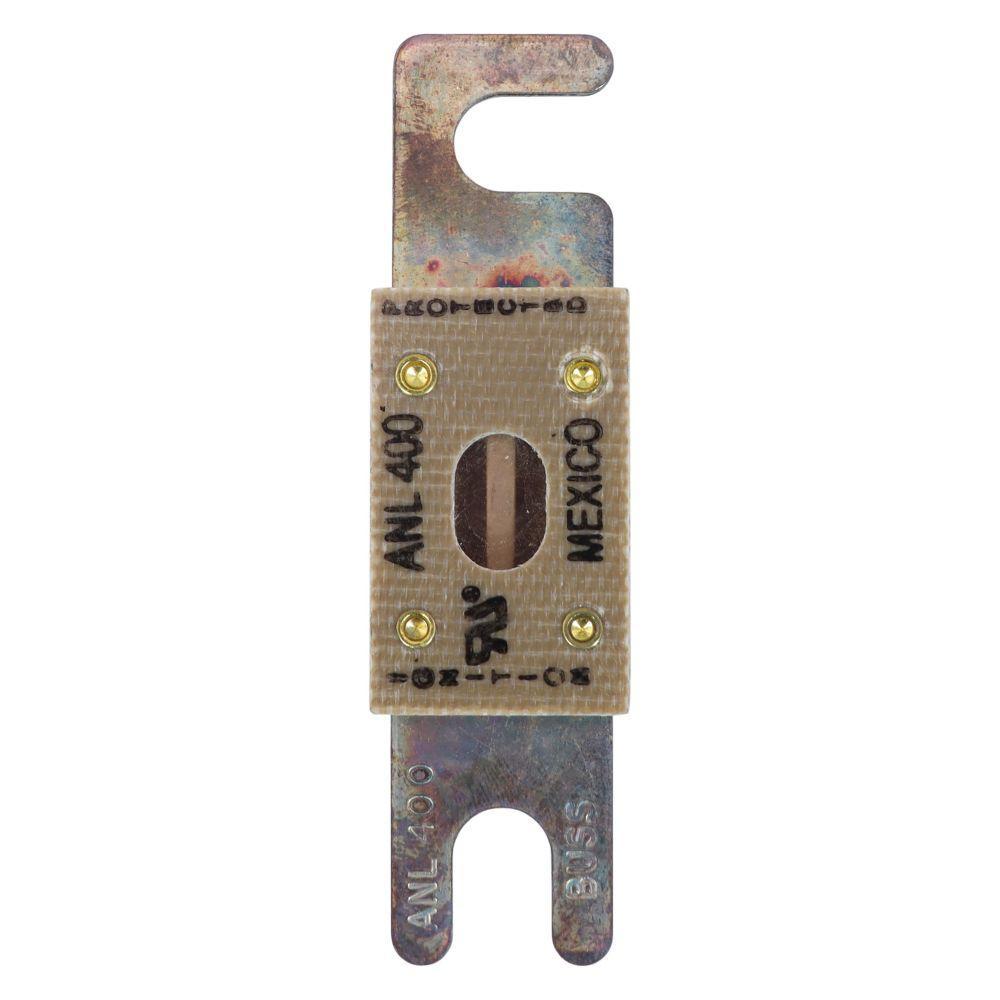

Bussmann ANL-400 Low Voltage Limiter
Part Number # ANL-400
SKU # 2213153
Bussmann ANL-400 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | ANL-400 |
| SKU #: | 2213153 |
| Body Type: | Flat |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 6/2.7, 6/2.7 kAIC |
| Series: | ANL |
| Terminal Type: | Bolted-Down |
| Type: | Circuit Limiting Non-Time Delay, Low Voltage Non-Time Delay Non-Indicating |
| Mounting type: | Stud |
| UNSPSC: | 39121626 |
| UPC: | 00051712706216 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann ANL-400 Low Voltage Limiter
Brand: Bussmann
Part Number: ANL-400
Bussmann Circuit Limiter Fuse, Low Voltage Non-Time Delay Non-Indicating, Series: ANL, 400 A, 32 VAC/80 VDC, 6/2.7 kAIC Interrupt, Bolted-Down Terminal, Stud Mount, Flat Body, Single Element, Melamine, 3-3/16 in L x 7/8 in W Body Size
Additional Description: BUSS-ANL-400 ANL CURRENT LIMITER FUSE - 400 AMP
Catalog Description: Eaton Bussmann series ANL circuit limiter, 400 A, 6 kAIC at 32 Vac, 2.7 kAIC at 80 Vdc, Blade end X blade end, Stud, Non indicating
ANL-400 Application
Aviation, Industrial Facilities and Factories, Safety and Security Systems, Fork Lifts and Marine ApplicationsANL-400 Item Features
- Time delay sizing for inductive circuits
- Small footprint saves space in equipment
- Window shows limiter status
- Isolates faults in equipment systems such as lift trucks and other battery operated systems
- Silver plated copper link
- Link element visible through mica window
- https://www.youtube.com/watch?v=YMvqUyoETXk
ANL-400 Standards
CSA File No.53787|RoHS Compliant|SAE J1171|UL File No.E56412 Guide JFHR2SKU #2213153Part Number #ANL-400UNSPSC39121626UPC00051712706216
Image provided may only be a representation of final product and may include optional equipment
