Part Number # ATC-2
SKU # 2145492
ATC-2

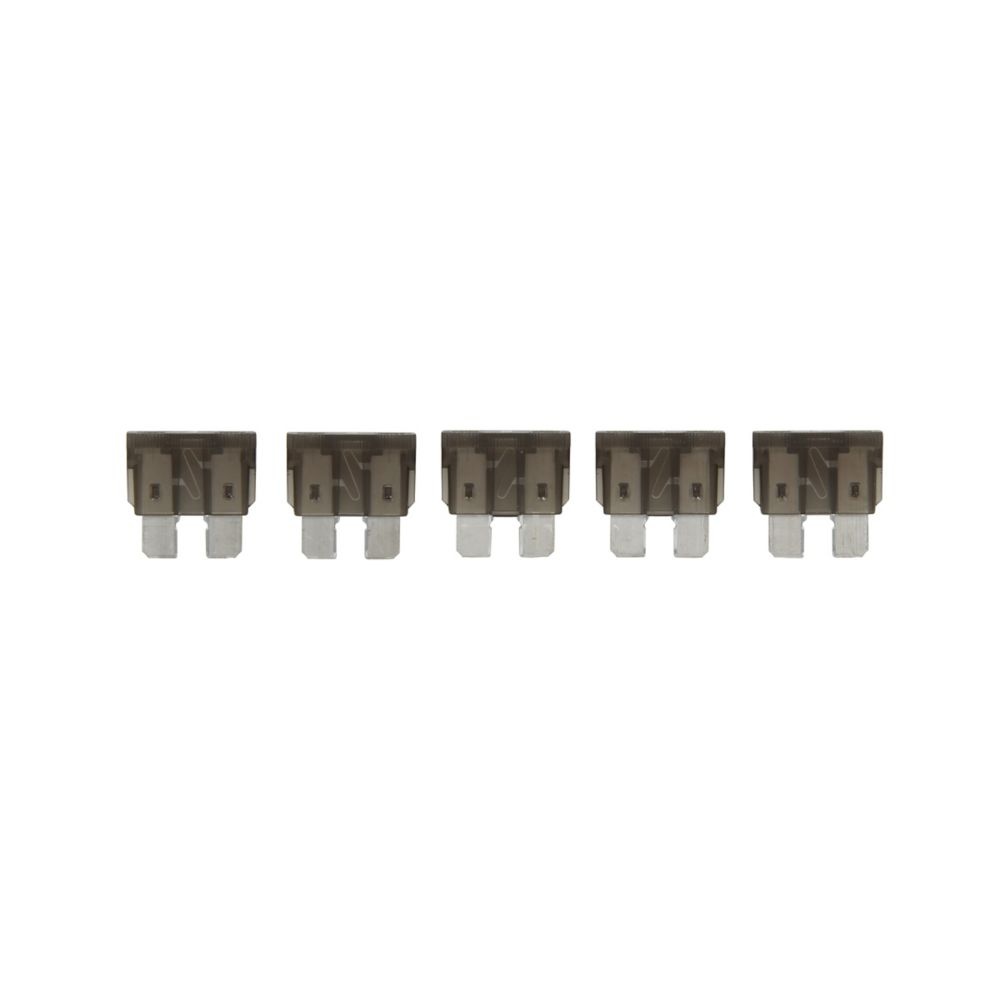

Bussmann ATC-2 Automotive Fuse
Part Number # ATC-2
SKU # 2145492
Bussmann ATC-2 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | ATC-2 |
| SKU #: | 2145492 |
| Amperage Rating: | 2, 2 A |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 1, 1 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 0.75 to 120, 0.75 to 120 s |
| Series: | ATC |
| Terminal Type: | Blade, Blade End |
| Type: | Fast Acting Fast Blow |
| Length: | 0.76, 0.76 in |
| Material: | Plastic, Plastic/Zinc |
| Mounting type: | Holder |
| Width: | 0.207, 0.207 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121612 |
| UPC: | 00051712813433 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann ATC-2 Automotive Fuse
Brand: Bussmann
Part Number: ATC-2
Bussmann Automotive Fuse, Fast Acting Fast Blow Lead Free, Series: ATC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 2 A, 32 VDC, 1 kAIC Interrupt, 0.75 to 120 s Response, Blade End Terminal, Holder Mount, Single Element, 0.76 in Length, 0.207 in Width, Plastic/Zinc, Gray

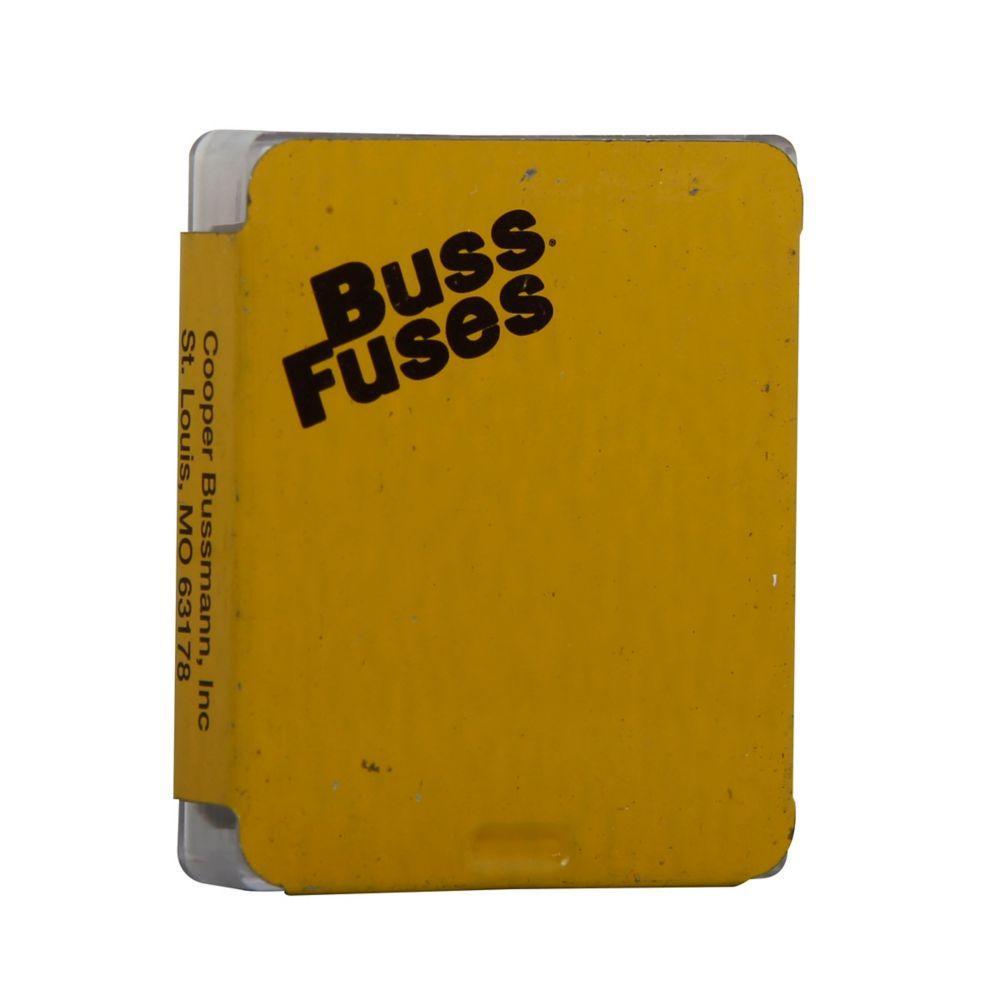

Additional Description: BUSS-ATC-2 ATC BLADE FUSE - 2 AMP (5 in TIN)
Catalog Description: Eaton Bussmann series ATC blade fuse, 32 Vdc, 2A, 1 kAIC, Non Indicating, Blade fuse, Grey
ATC-2 Application
Low Voltage Control Circuits and On-Road Vehicles ApplicationsATC-2 Item Features
- Industry standard color coding for quick identification of amp rating
- Tin plated zinc terminals for corrosion resistance and enhanced conductivity
- Wide -40 to 100 deg C operating temperature range meets the needs of extreme environments
- Lead free and halogen free
- Test points on specific part/package numbers may speed up circuit troubleshooting
- UL recognized for use in low voltage control circuits
- https://www.youtube.com/watch?v=YMvqUyoETXk
ATC-2 Standards
UL Listed,RoHS CompliantSKU #2145492Part Number #ATC-2UNSPSC39121612UPC00051712813433
Image provided may only be a representation of final product and may include optional equipment
