Part Number # ATC-30
SKU # 2118953
Image Disclaimers Message
ATC-30
Bussmann ATC-30 Automotive Fuse
Part Number # ATC-30
SKU # 2118953
$7.85 / 5Each
Typical price:$11.55 / Each
Bussmann ATC-30 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | ATC-30 |
| SKU #: | 2118953 |
| Amperage Rating: | 30, 30 A |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 1, 1 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 0.75 to 120 |
| Series: | ATC |
| Terminal Type: | Blade, Blade End |
| Type: | Fast Acting, Fast Acting Fast Blow |
| Color: | Green |
| Depth: | 0.207, 0.207 in, 5.1 |
| Length: | 18.7 |
| Material: | Plastic, Plastic/Zinc, Polycarbonate |
| Mounting type: | Holder |
| Width: | 0.76, 0.76 in, 14.5 |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121612 |
| UPC: | 00051712703284 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.85 / 5Each
Typical price:$11.55 / Each
Quantity:
Bussmann ATC-30 Automotive Fuse
Brand: Bussmann
Part Number: ATC-30
Bussmann Automotive Fuse, Fast Acting Lead Free, Series: ATC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 30 A, 32 VDC, 1 kAIC Interrupt, Blade End Terminal, Holder Mount, Single Element, 0.76 in Width, 0.207 in D, Plastic/Zinc, Green

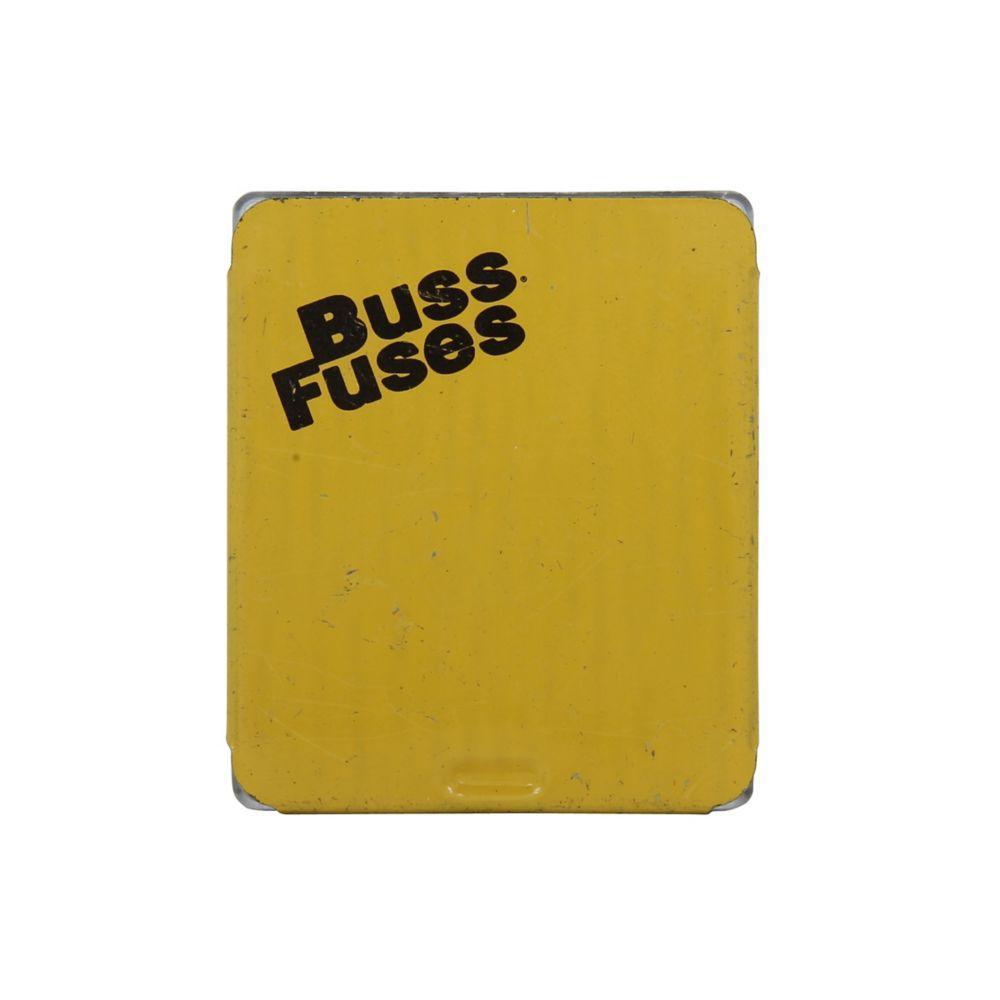

Additional Description: BUSS-ATC-30 ATC BLADE FUSE - 30 AMP (5 in TIN)
Catalog Description: Eaton Bussmann series ATC blade fuse, 32 Vdc, 30A, 1 kAIC, Non Indicating, Blade fuse, Green
ATC-30 Application
Low Voltage Control Circuits and On-Road Vehicles ApplicationsATC-30 Item Features
- Industry standard color-coding for quick identification of amp rating
- Tin plated zinc terminals for corrosion resistance and enhanced conductivity
- Wide -40 to 100 deg C operating temperature range meets the needs of extreme environments
- Lead free and halogen free
- Test points on specific part/package numbers may speed up circuit troubleshooting
- UL 94 housing flammability rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
ATC-30 Standards
UL Listed,RoHS CompliantSKU #2118953Part Number #ATC-30UNSPSC39121612UPC00051712703284
