Part Number # ATC-40
SKU # 2156414
ATC-40

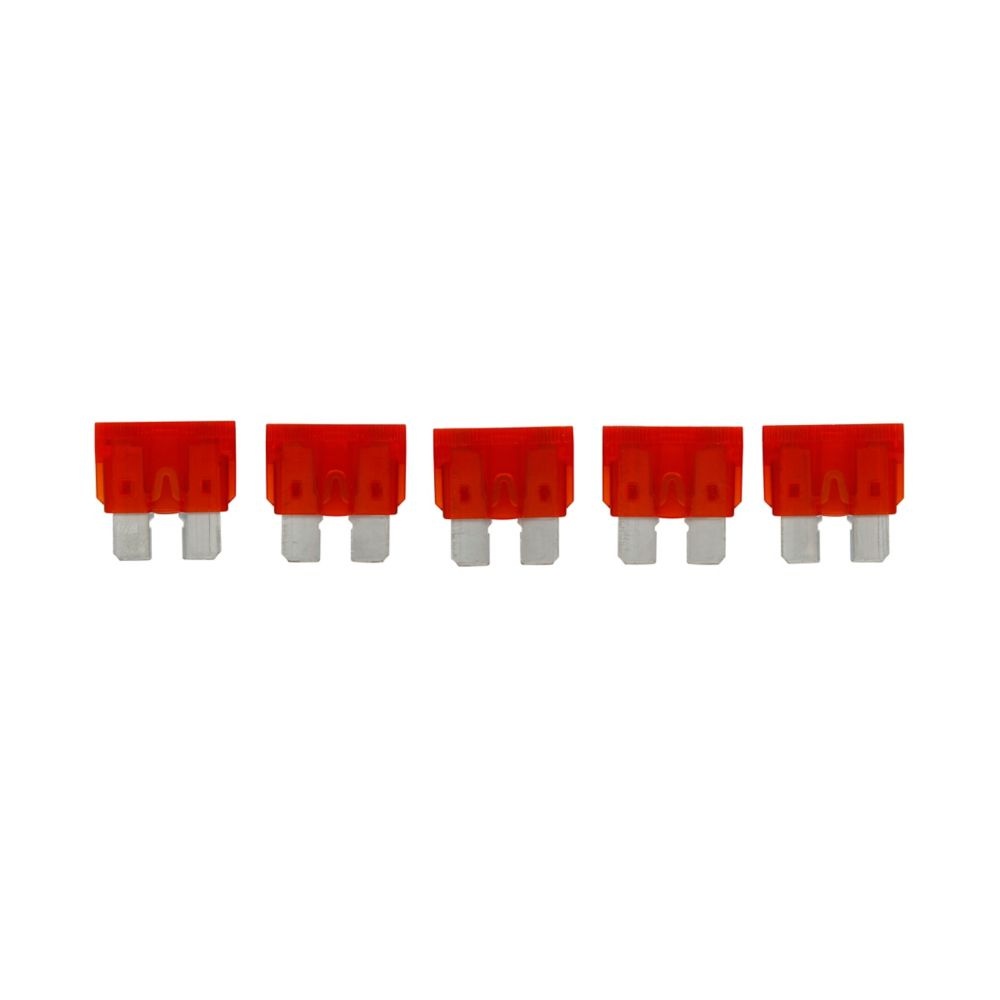

Bussmann ATC-40 Automotive Fuse
Part Number # ATC-40
SKU # 2156414
Bussmann ATC-40 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | ATC-40 |
| SKU #: | 2156414 |
| Interrupt Rating: | 1 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 0.75 to 120 s |
| Series: | ATC |
| Terminal Type: | Blade End |
| Type: | Fast Acting Fast Blow |
| Length: | 0.76 in |
| Material: | Plastic/Zinc |
| Mounting type: | Holder |
| Width: | 0.207 in |
| UNSPSC: | 39121612 |
| UPC: | 00051712735704 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann ATC-40 Automotive Fuse
Brand: Bussmann
Part Number: ATC-40
Bussmann Automotive Fuse, Fast Acting Fast Blow Lead Free, Series: ATC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 40 A, 32 V DC, 1 kAIC Interrupt, 0.75 to 120 s Response, Blade End Terminal, Holder Mount, Single Element, 0.76 in Length, 0.207 in Width, Plastic/Zinc, Orange
Additional Description: BUSS-ATC-40 ATC BLADE FUSE - 40 AMP (5 in TIN)
Catalog Description: Eaton Bussmann series ATC blade fuse, 32 Vdc, 40A, 1 kAIC, Non Indicating, Blade fuse, Orange
ATC-40 Application
Low Voltage Control Circuits and On-Road Vehicles ApplicationsATC-40 Item Features
- Industry standard color coding for quick identification of amp rating
- Tin plated zinc terminals for corrosion resistance and enhanced conductivity
- Wide -40 to 100 deg C operating temperature range meets the needs of extreme environments
- Lead free and halogen free
- Test points on specific part/package numbers may speed up circuit troubleshooting
- UL recognized for use in low voltage control circuits
- https://www.youtube.com/watch?v=YMvqUyoETXk
ATC-40 Standards
JASO 612/J1171|RoHS Compliant|SAE J1284|UL File No.E56412/248-1 Guide JFHR2SKU #2156414Part Number #ATC-40UNSPSC39121612UPC00051712735704
Image provided may only be a representation of final product and may include optional equipment
