Part Number # ATC-5
SKU # 7430
Image Disclaimers Message
Brand: Bussmann
ATC-5

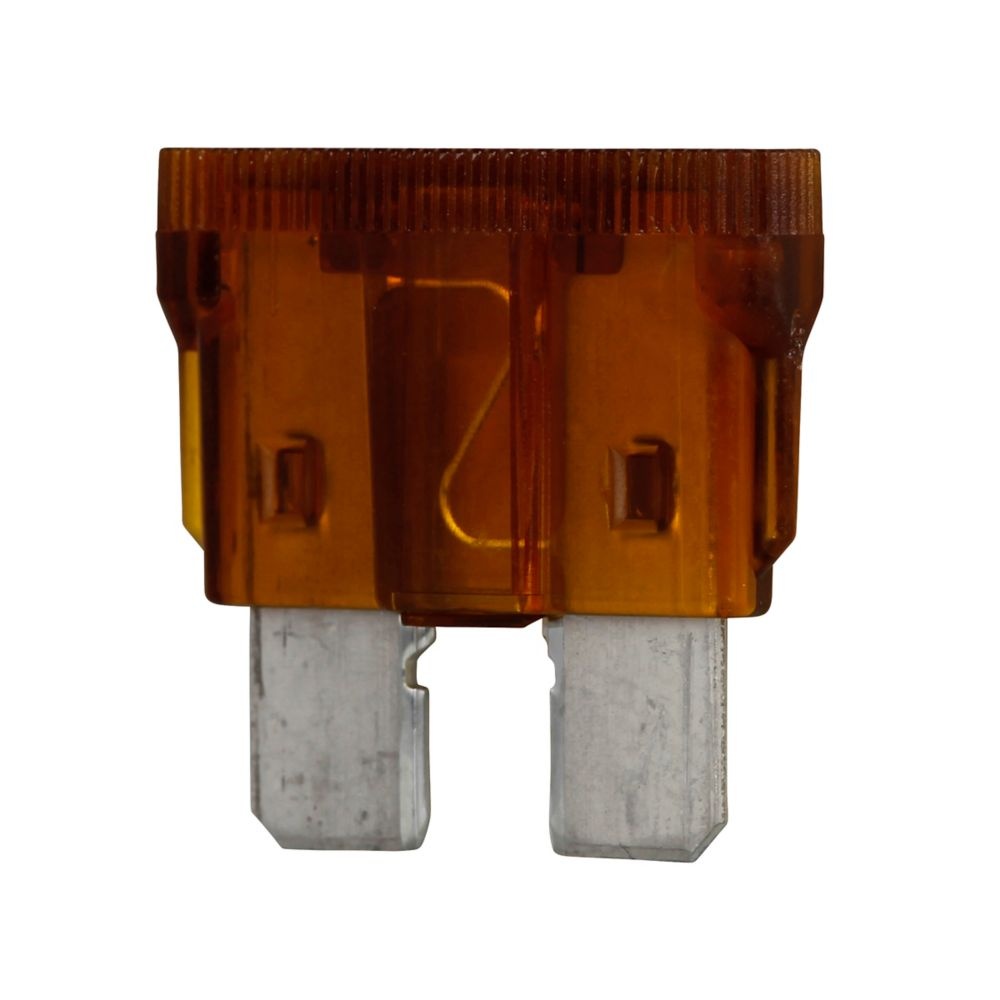

Bussmann ATC-5 Automotive Fuse
Part Number # ATC-5
SKU # 7430
$7.85 / 5Each
Typical price:$11.55 / Each
Bussmann ATC-5 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | ATC-5 |
| SKU #: | 7430 |
| Amperage Rating: | 5, 5 A |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 1, 1 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 0.75 to 120 |
| Series: | ATC |
| Terminal Type: | Blade |
| Type: | Fast Acting Fast Blow, Standard, Standard Fast Acting |
| Color: | Tan |
| Depth: | 0.207, 0.207 in |
| Material: | Plastic |
| Mounting type: | Holder |
| Width: | 0.76, 0.76 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121612 |
| UPC: | 00051712703222 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.85 / 5Each
Typical price:$11.55 / Each
Quantity:
Bussmann ATC-5 Automotive Fuse
Brand: Bussmann
Part Number: ATC-5
Bussmann Fuse, Standard Fast Acting, Series: ATC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 5 A, 32 VDC, 1 kA Interrupt, Blade Terminal, Holder Mount, Single Element, 0.76 in W, 0.207 in D, Plastic, Tan
Additional Description: BUSS-ATC-5 TC BLADE FUSE - 5 AMP (5 in TIN)
Catalog Description: Eaton Bussmann series ATC blade fuse, Color code tan, 32 Vdc, 5A, 1 kAIC, Non Indicating, Blade fuse, Blade end, Colored plastic housing, zinc fuse element
ATC-5 Specifications
- Industry standard color coding for quick identification of amperage rating
- Tin plated zinc terminals for corrosion resistance and enhanced conductivity
- Wide -40 to 100 deg C operating temperature range meets the needs of extreme environments
- Lead free and halogen free
- Test points on specific part/package numbers may speed up circuit troubleshooting
- UL recognized for use in low voltage control circuits
ATC-5 Application
Automotive and Low Voltage Control Circuit ApplicationsATC-5 Item Features
- https://www.youtube.com/watch?v=YMvqUyoETXk
ATC-5 Standards
UL JFHR2 File No. E56412|SAE J1284SKU #7430Part Number #ATC-5UNSPSC39121612UPC00051712703222
