Bussmann ATM-10 Automotive Fuse
Part Number # ATM-10
SKU # 2287007
ATM-10
Bussmann ATM-10 Automotive Fuse
Part Number # ATM-10
SKU # 2287007
Bussmann ATM-10 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | ATM-10 |
| SKU #: | 2287007 |
| Interrupt Rating: | 1 kA at 32 VAC/VDC |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | ATM |
| Type: | Fast Acting |
| Depth: | 5/32 in |
| Mounting type: | Holder |
| Width: | 7/16 in |
| UNSPSC: | 39121609 |
| UPC: | 00051712814638 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann ATM-10 Automotive Fuse
Brand: Bussmann
Part Number: ATM-10
Bussmann Miniature Fuse, Fast Acting, Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection, 10, Voltage Rating A, V AC/DC 32, 1 kA at 32 V AC/DC Interrupt, Class, Frequency Rating, Speed, Blade Terminal, Mounting Type, Element, 3/4 Length, Width in, in 7/16, 5/32 D, Diameter in, Plastic, Color
Additional Description: BUSS-ATM-10 ATM MINI BLADE FUSE - 10 AMP (5 in TIN)
Catalog Description: Eaton Bussmann series ATM blade fuse, Color code red, 32 Vdc, 10A, 1 kAIC, Non Indicating, Blade fuse, Blade end, Colored plastic housing, zinc fuse element
ATM-10 Application
Automotive and Low Voltage Control Circuit ApplicationsATM-10 Item Features
- Silver-plated zinc terminals and element, polycarbonate housing materials
- Mount with fuse clip or holder
- Industry standard color coding for quick identification of amp rating
- Halogen free
- Test points on specific part/package numbers may speed up circuit troubleshooting
- -40 to 100 deg C, 95 % RH non-condensing is operating temperature
- -5 to 35 deg C or lower, 85 % RH non-condensing is storage temperature
- https://www.youtube.com/watch?v=YMvqUyoETXk
ATM-10 Standards
UL Listed|JASO D612|SAE J2077/J1171 Ignition Protection|UL94 HB Flammability RatingSKU #2287007Part Number #ATM-10UNSPSC39121609UPC00051712814638

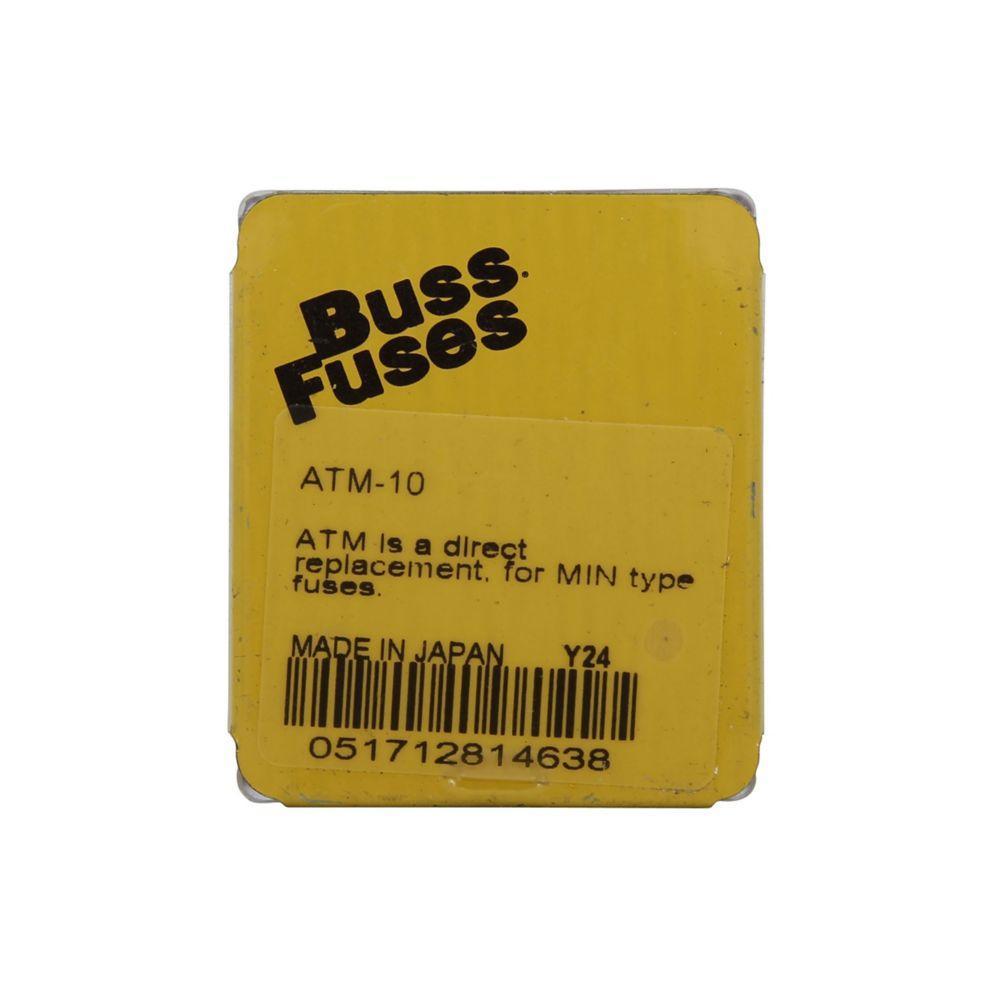

Image provided may only be a representation of final product and may include optional equipment
