ATM-5

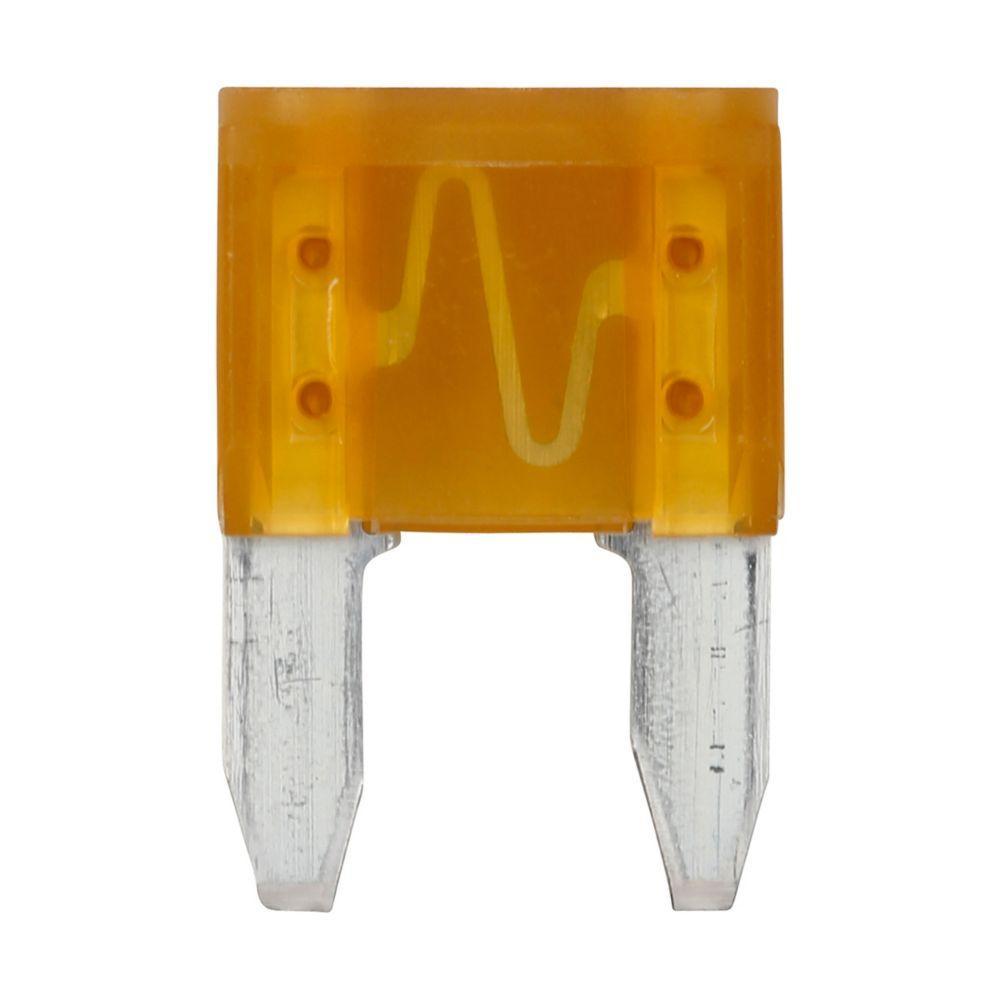

Bussmann ATM-5 Miniature Fuse
Part Number # ATM-5
SKU # 2254789
Bussmann ATM-5 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | ATM-5 |
| SKU #: | 2254789 |
| Amperage Rating: | 5, 5 A |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 1, 1 kA at 32 VAC/VDC |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | ATM |
| Terminal Type: | Blade |
| Type: | Fast Acting, Fast Acting Fast Blow Miniature |
| Color: | Tan |
| Depth: | 0.15, 5/32, 5/32 in |
| Length: | 0.642, 3/4, 3/4 in |
| Material: | Plastic |
| Mounting type: | Holder |
| Width: | 0.43, 7/16, 7/16 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121609 |
| UPC: | 00051712814614 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann ATM-5 Miniature Fuse
Brand: Bussmann
Part Number: ATM-5
Bussmann Miniature Fuse, Fast Acting, Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection, 5, Voltage Rating A, VAC/VDC 32, 1 kA at 32 VAC/VDC Interrupt, Class, Frequency Rating, Speed, Blade Terminal, Mounting Type, Element, 3/4 Length, Width in, in 7/16, 5/32 D, Diameter in, Plastic, Color

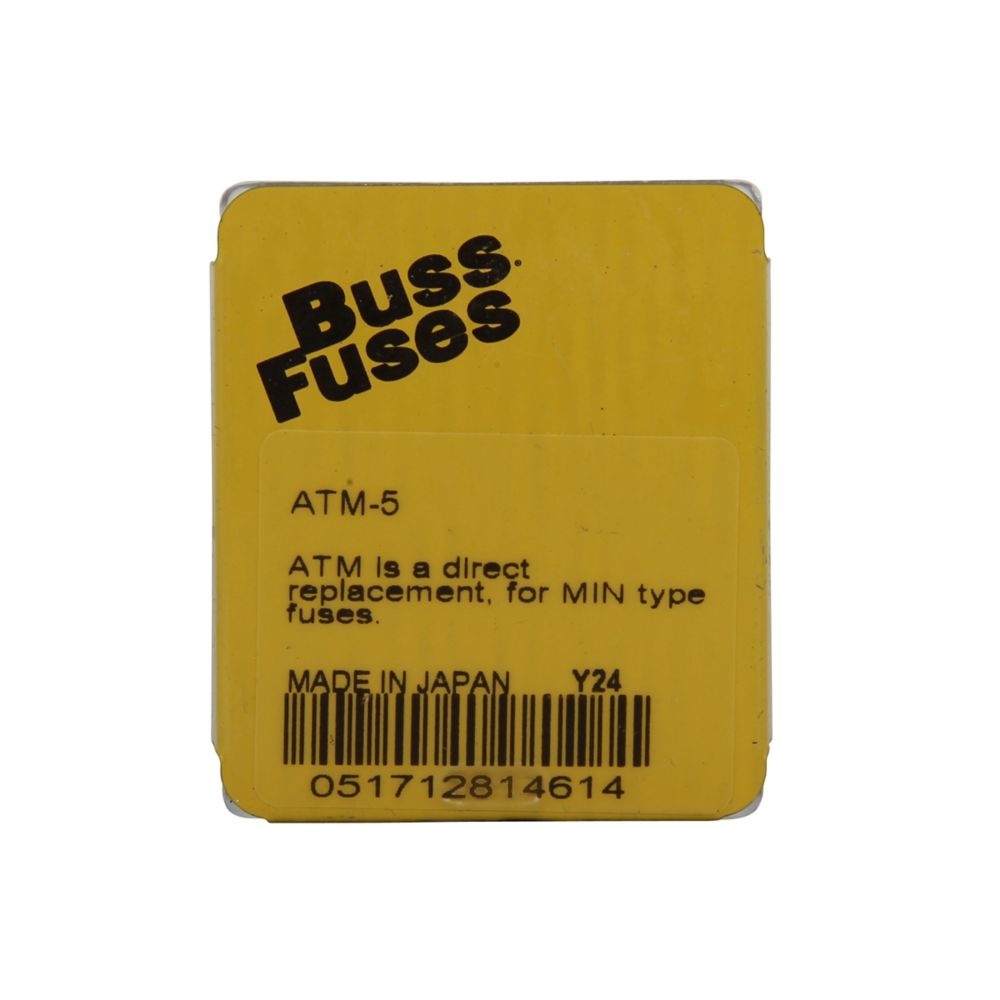

Additional Description: BUSS-ATM-5 ATM MINI BLADE FUSE - 5 AMP (5 in TIN)
Catalog Description: Eaton Bussmann series ATM blade fuse, Color code tan, 32 Vdc, 5A, 1 kAIC, Non Indicating, Blade fuse, Blade end, Colored plastic housing, zinc fuse element
ATM-5 Application
Automotive and Low Voltage Control Circuit ApplicationsATM-5 Item Features
- Silver-plated zinc terminals and element, polycarbonate housing materials
- Mount with fuse clip or holder
- Industry standard color coding for quick identification of amp rating
- Halogen free
- Test points on specific part/package numbers may speed up circuit troubleshooting
- -40 to 100 deg C, 95 % RH non-condensing is operating temperature
- -5 to 35 deg C or lower, 85 % RH non-condensing is storage temperature
- https://www.youtube.com/watch?v=YMvqUyoETXk
ATM-5 Standards
RoHS Compliant,Contact factorySKU #2254789Part Number #ATM-5UNSPSC39121609UPC00051712814614
