Part Number # BCM603-2PQ
SKU # 2299112
Image Disclaimers Message
BCM603-2PQ

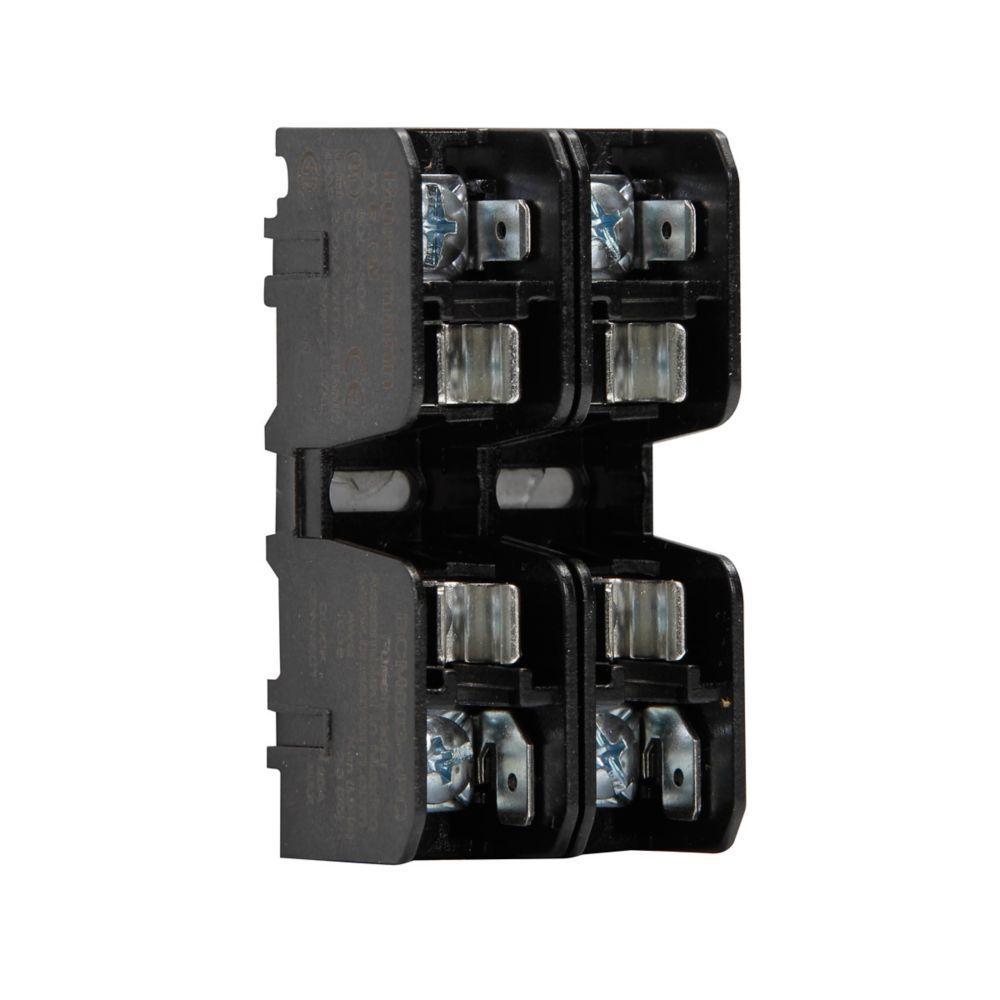

Bussmann BCM603-2PQ Fuse Block
Part Number # BCM603-2PQ
SKU # 2299112
$198.15 / 5Each
Typical price:$402.90 / Each
Bussmann BCM603-2PQ Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BCM603-2PQ |
| SKU #: | 2299112 |
| Amperage Rating: | 30, 30 A |
| Class: | CC |
| Dimensions: | 3 in L x 1.6 in W x 1.3 in H |
| Number of Poles: | 2 |
| Series: | BCM |
| Suitable For Use With: | Low-Peak LP-CC Series Time Delay, Limitron FNQ-R Series Time Delay, Limitron KTK-R Series Fast Acting Fuse, Low-Peak™ LP-CC Series Time Delay, Limitron™ FNQ-R Series Time Delay, Limitron™ KTK-R Series Fast Acting Fuse, Time Delay Low-Peak™ LP-CC, Time Delay Limitron™ FNQ-R, Fast Acting Limitron™ KTK-R Series Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Modular |
| Wire Size: | 18 to 10, 18 to 10 AWG |
| Connection type: | 1/4 in Quick Connect/Pressure Plate, 1/4 in Quick-Connect/Pressure Plate |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712486736 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$198.15 / 5Each
Typical price:$402.90 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: BCM, 600 V AC, 30 A, 2 Pole, Class: CC, 1/4 in Quick-Connect/Pressure Plate, 18 to 10 AWG Wire, DIN Rail/Panel Mount, -40 to 120 deg C, For Use With: Low-Peak LP-CC Series Time Delay, Limitron FNQ-R Series Time Delay, Limitron KTK-R Series Fast Acting Fuse, Thermoplastic, 3 in L x 1.6 in W x 1.3 in H
BCM603-2PQ Application
Electrical Assemblies, Panels and EOEMs ApplicationsBCM603-2PQ Item Features
- Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Compact footprint consumes minimal panel space
- Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
- https://www.youtube.com/watch?v=YMvqUyoETXk
BCM603-2PQ Standards
Contact Manufacturer ,CSA Certified ,UL Listed,RoHS Compliant,CE MarkedSKU #2299112Part Number #BCM603-2PQUNSPSC39121624UPC00051712486736
