BCM603-3P

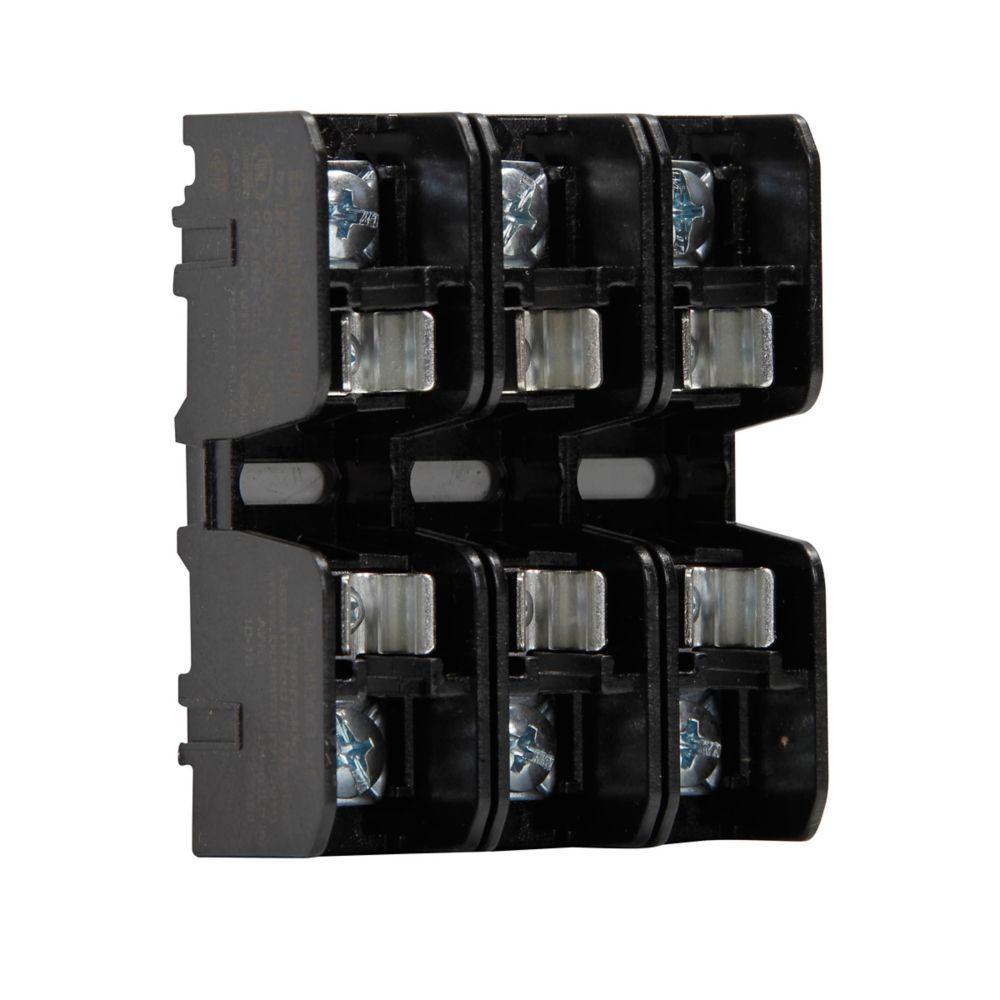

Bussmann BCM603-3P Fuse Block
Part Number # BCM603-3P
SKU # 2318713
$245.50 / 5Each
Typical price:$499.20 / Each
Bussmann BCM603-3P Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BCM603-3P |
| SKU #: | 2318713 |
| Amperage Rating: | 30, 30 A |
| Class: | CC |
| Dimensions: | 3 in L x 2.4 in W x 1.3 in H |
| Number of Poles: | 3 |
| Series: | BCM |
| Suitable For Use With: | Low-Peak LP-CC Series Time Delay, Limitron FNQ-R Series Time Delay, Limitron KTK-R Series Fast Acting Fuse, Low-Peak™ LP-CC Series Time Delay, Limitron™ FNQ-R Series Time Delay, Limitron™ KTK-R Series Fast Acting Fuse, Time Delay Low-Peak™ LP-CC, Time Delay Limitron™ FNQ-R, Fast Acting Limitron™ KTK-R Series Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Modular |
| Wire Size: | 18 to 10, 18 to 10 AWG |
| Connection type: | Pressure Plate |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712486323 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$245.50 / 5Each
Typical price:$499.20 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: BCM, 600 V AC, 30 A, 3 Pole, Class: CC, 18 to 10 AWG Wire, DIN Rail/Panel Mount, -40 to 120 deg C, For Use With: Low-Peak LP-CC Series Time Delay, Limitron FNQ-R Series Time Delay, Limitron KTK-R Series Fast Acting Fuse, Thermoplastic, 3 in L x 2.4 in W x 1.3 in H
BCM603-3P Application
Electrical Assemblies, Panels and EOEMs ApplicationsBCM603-3P Item Features
- Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Compact footprint consumes minimal panel space
- Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
- https://www.youtube.com/watch?v=YMvqUyoETXk
BCM603-3P Standards
CE Certified|CSA 47235-6225-01|RoHS Compliant|UL File No.E14853 Guide IZLT|UL94 V-0 Flammability RatingSKU #2318713Part Number #BCM603-3PUNSPSC39121624UPC00051712486323
