Part Number # BG3011SQ
SKU # 2171119
Image provided may only be a representation of
final product and may include optional equipment
BG3011SQ

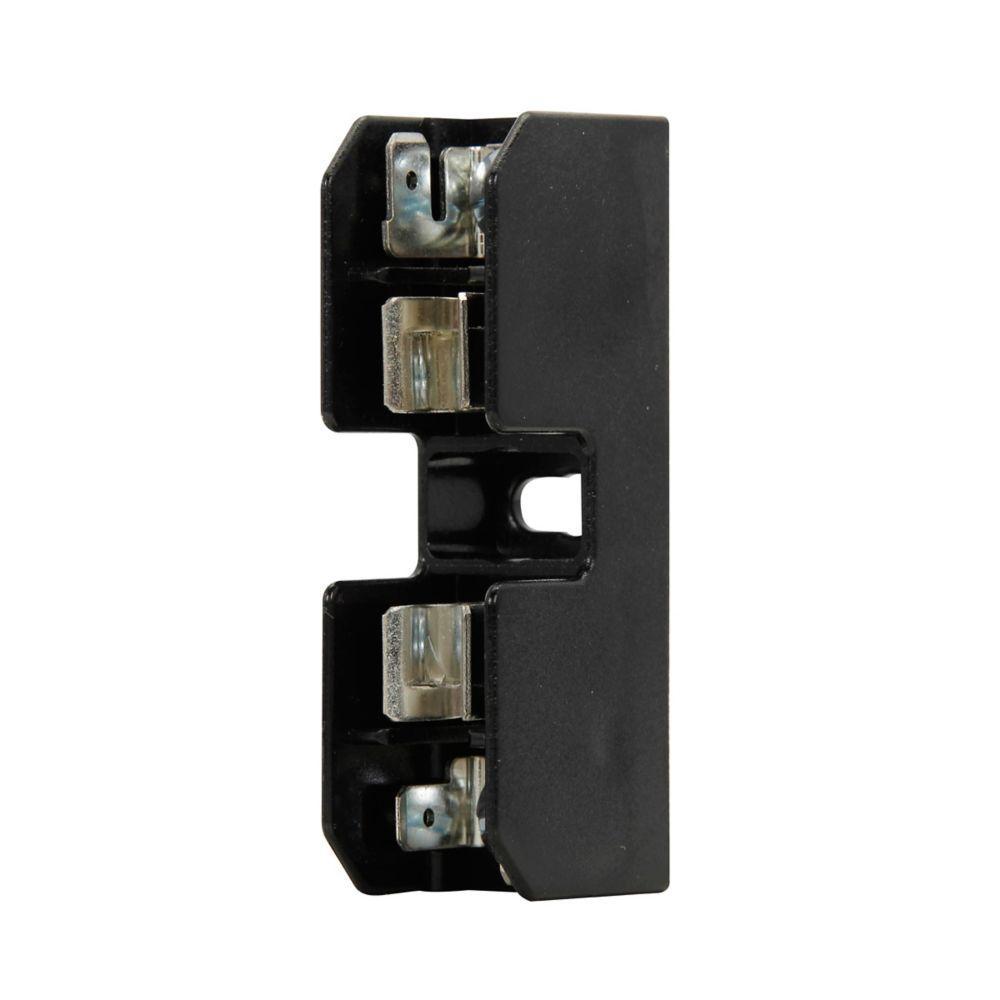

Bussmann BG3011SQ Fuse Block
Part Number # BG3011SQ
SKU # 2171119
Bussmann BG3011SQ Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BG3011SQ |
| SKU #: | 2171119 |
| Amperage Rating: | 0.18 to 15, 0.18 to 15 A, 1 to 20 |
| Class: | G |
| Dimensions: | 3 in L x 0.86 in W x 1.22 in H |
| Fuse Diameter: | 13/32, 13/32 in |
| Fuse Length: | 1.419, 1.419 in |
| Number of Poles: | 1 |
| Series: | BG Series |
| Suitable For Use With: | Bussmann SC Series Class G Fuse, SC Series Class G Fuse |
| Temperature Rating (Degrees F): | 130, 130 deg C |
| Type: | Open, Open Style |
| Wire Size: | 14 to 10, 14 to 10 AWG |
| Connection type: | Quick-Connect/Screw, Screw/Quick-Connect |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712736664 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann BG3011SQ Fuse Block
Brand: Bussmann
Part Number: BG3011SQ
Bussmann Fuse Block, Open, Series: BG Series, 600 V, 0.18 to 15 A, 1 Pole, Class: G, Quick-Connect/Screw, 14 to 10 AWG Wire, DIN Rail Mount, 1.419 in Fuse Length, 13/32 in Fuse Dia, 130 deg C, For Use With: SC Series Class G Fuse, Thermoplastic, Black, 3 in L x 0.86 in W x 1.22 in H
Additional Description: BUSS-BG3011SQ FUSEBLOCK WAS 2961
Catalog Description: Eaton Bussmann series BG open fuse block, 0.18-15 A, Single-pole, Class G, Screw/quick connect, 100 kAIC, Thermoplastic, 600 V, For use with SC fuse, #14-10 AWG Cu/Al
BG3011SQ Application
Electrical Assemblies, Panels and EOEMs ApplicationsBG3011SQ Item Features
- https://www.youtube.com/watch?v=YMvqUyoETXk
BG3011SQ Standards
CSA C22.2 File No.47235/39|RoHS Compliant|UL 512 File No.E14853 Guide IZLT2SKU #2171119Part Number #BG3011SQUNSPSC39121624UPC00051712736664
