Part Number # BG3033B
SKU # 2411625
BG3033B

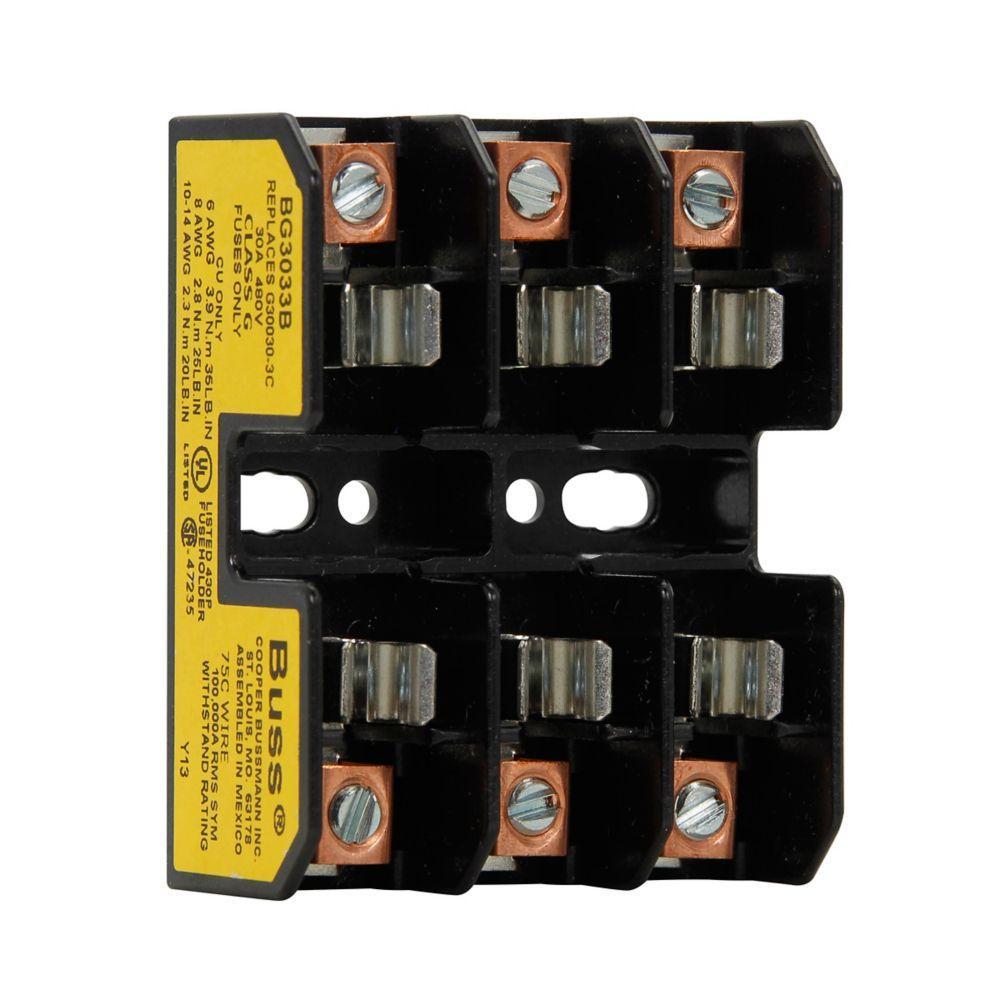

Bussmann BG3033B Edison Fuse Block
Part Number # BG3033B
SKU # 2411625
Bussmann BG3033B Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BG3033B |
| SKU #: | 2411625 |
| Amperage Rating: | 25 to 30 A |
| Class: | G |
| Dimensions: | 3 in L x 2.38 in W x 1.22 in H |
| Fuse Diameter: | 13/32 in |
| Fuse Length: | 1.639 in |
| Number of Poles: | 3 |
| Series: | BG Series |
| Suitable For Use With: | Bussmann SC Series Class G Fuse, SC Series Class G Fuse |
| Temperature Rating (Degrees F): | 130 deg C |
| Type: | Open, Open Style |
| Wire Size: | 14 to 6 AWG |
| Connection type: | Box Lug |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712736619 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann BG3033B Edison Fuse Block
Brand: Bussmann
Part Number: BG3033B
Bussmann Fuse Block, Open, Series: BG Series, 480 V, 25 to 30 A, 3 Pole, Class: G, Box Lug, 14 to 6 AWG Wire, DIN Rail Mount, 1.639 in Fuse Length, 13/32 in Fuse Dia, 130 deg C, For Use With: SC Series Class G Fuse, Thermoplastic, Black, 3 in L x 2.38 in W x 1.22 in H
Additional Description: BUSS-BG3033B (N) BUSS FUSEBLOCK WAS 2899 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series BG open fuse block, 25-30 A, Class G, 100 kA, Box lug, 100 kAIC, Thermoplastic, 480 V, For use with SC fuse, #14-6 AWG Cu
BG3033B Application
Electrical Assemblies, Panels and EOEMs ApplicationsBG3033B Item Features
- https://www.youtube.com/watch?v=YMvqUyoETXk
BG3033B Standards
Contact Manufacturer ,UL Recognized ,CSA Certified,RoHS Compliant,Contact factorySKU #2411625Part Number #BG3033BUNSPSC39121624UPC00051712736619
Image provided may only be a representation of final product and may include optional equipment
