Part Number # BK/ATC-25
SKU # 68979
Image provided may only be a representation of
final product and may include optional equipment
BK/ATC-25

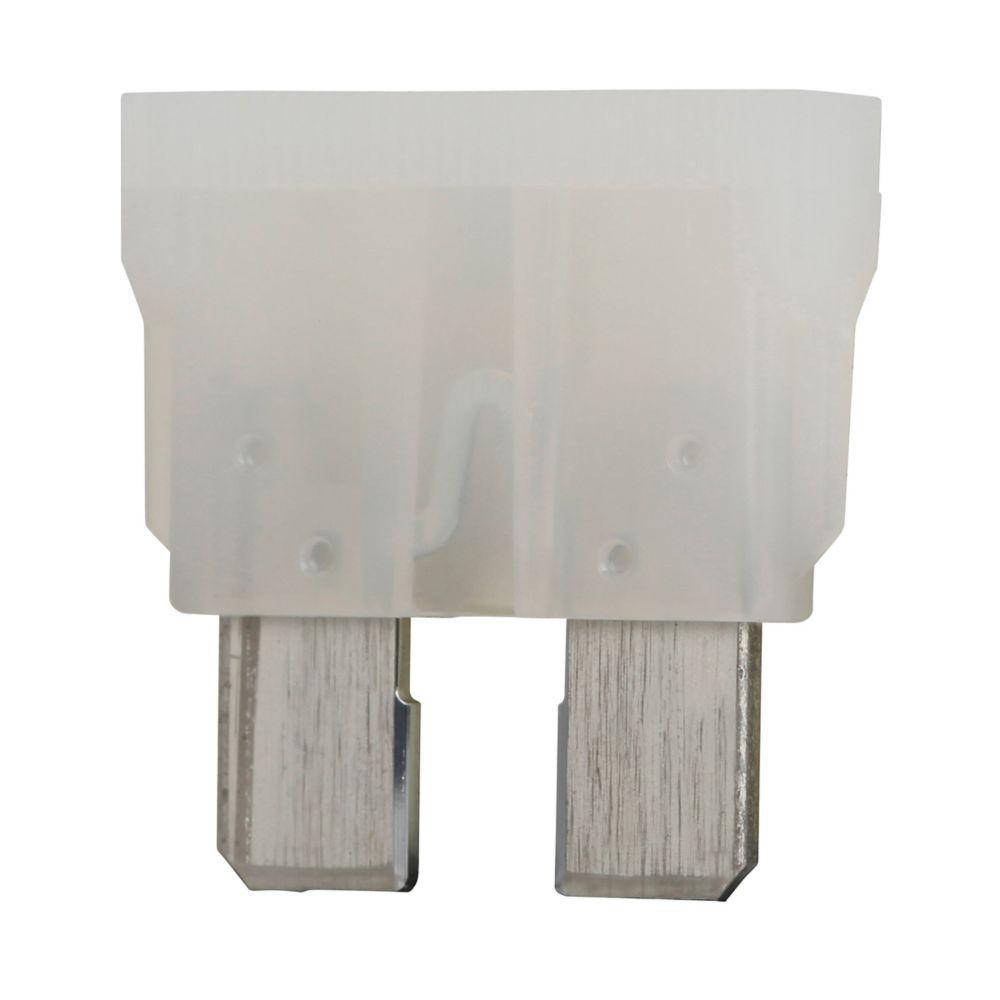

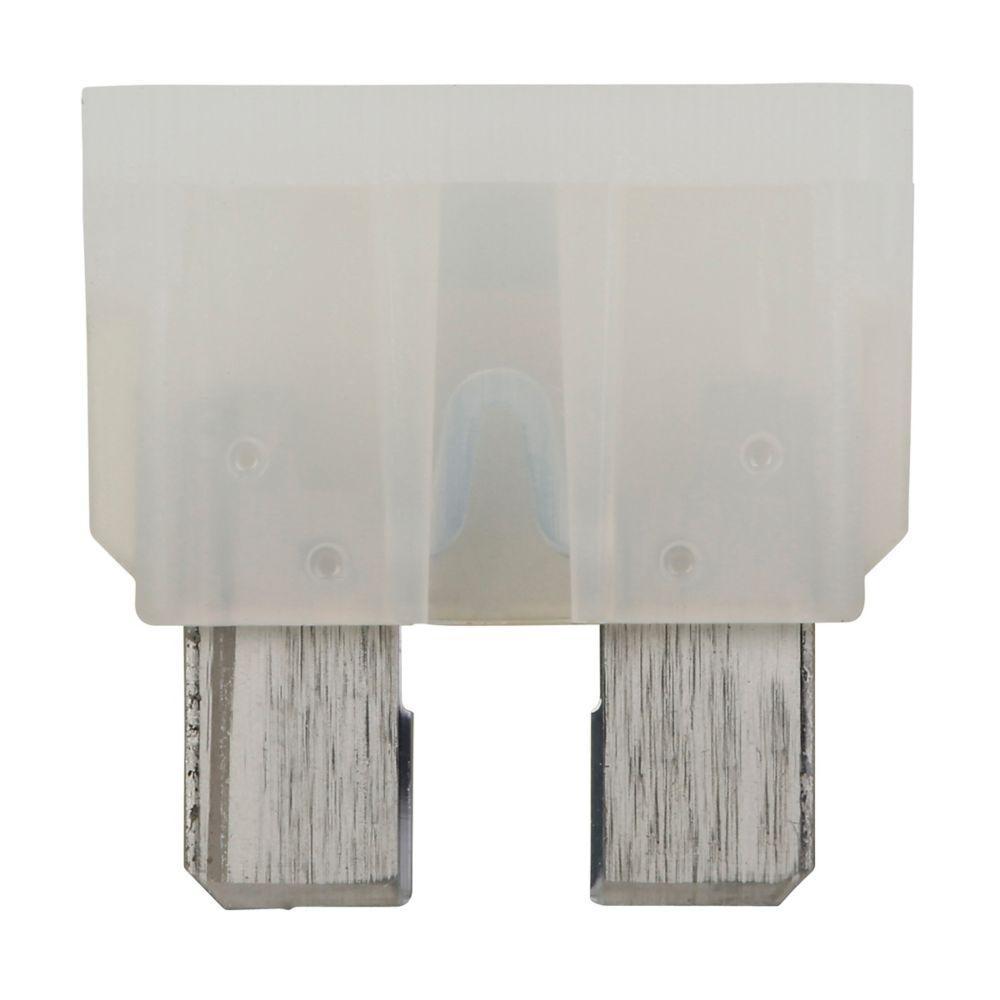

Bussmann BK/ATC-25 Midget Fuse
Part Number # BK/ATC-25
SKU # 68979
Bussmann BK/ATC-25 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BK/ATC-25 |
| SKU #: | 68979 |
| Amperage Rating: | 25, 25 A |
| Body Type: | Open |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 1, 1000, 1000 A |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 0.75 to 120, 0.75 to 120 s |
| Series: | ATC |
| Terminal Type: | Blade, Blade End |
| Type: | Fast Acting, Fast Acting Fast Blow |
| Depth: | 0.207, 0.207 in |
| Length: | 0.752 in |
| Material: | Plastic |
| Mounting type: | Holder |
| Width: | 0.76, 0.76 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121612 |
| UPC: | 00051712103695 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann BK/ATC-25 Midget Fuse
Brand: Bussmann
Part Number: BK/ATC-25
Bussmann ATC Automotive Fuse, Fast Acting Fast Blow Lead Free, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 25 A, 32 VDC, 1000 A Interrupt, 0.75 to 120 s Response, Blade End Terminal, Holder Mount, Open Body Type, Single Element, 0.752 in Length, 0.76 in Width, 0.207 in D, Plastic, Clear
Additional Description: BSTR-BK/ATC-25 BUSS ATC FUSE BULK PACKED
Catalog Description: Eaton Bussmann series ATC blade fuse, Color code clear, 32 Vdc, 25A, 1 kAIC, Non Indicating, Blade fuse, Blade end, Colored plastic housing
BK/ATC-25 Application
On-Road Vehicles, Low Voltage Control Circuits and Automotive Circuit ApplicationsBK/ATC-25 Item Features
- Industry standard color coding for quick identification of amp rating
- Tin plated zinc terminals for corrosion resistance and enhanced conductivity
- Wide -40 to 100 deg C operating temperature range meets the needs of extreme environments
- Lead and halogen free
- Test points on specific part/package numbers may speed up circuit troubleshooting
- UL recognized for use in low voltage control circuits
- https://www.youtube.com/watch?v=YMvqUyoETXk
BK/ATC-25 Standards
RoHS Compliant|UL RecognizedSKU #68979Part Number #BK/ATC-25UNSPSC39121612UPC00051712103695
