Part Number # BK/GMA-2-R
SKU # 2460492
BK/GMA-2-R
Bussmann BK/GMA-2-R
Part Number # BK/GMA-2-R
SKU # 2460492
$187.14 / 100Each
Typical price:$381.00 / Each
Bussmann BK/GMA-2-R Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BK/GMA-2-R |
| SKU #: | 2460492 |
| Amperage Rating: | 2 A |
| Body Type: | Cylindrical |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100 A, 10 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 60 min, 2 min |
| Series: | GMA |
| Terminal Type: | Ferrule |
| Type: | Low Breaking Small Dimension |
| Country of origin: | CN |
| Material: | Glass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121607 |
| UPC: | 00051712647250 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$187.14 / 100Each
Typical price:$381.00 / Each
Quantity:

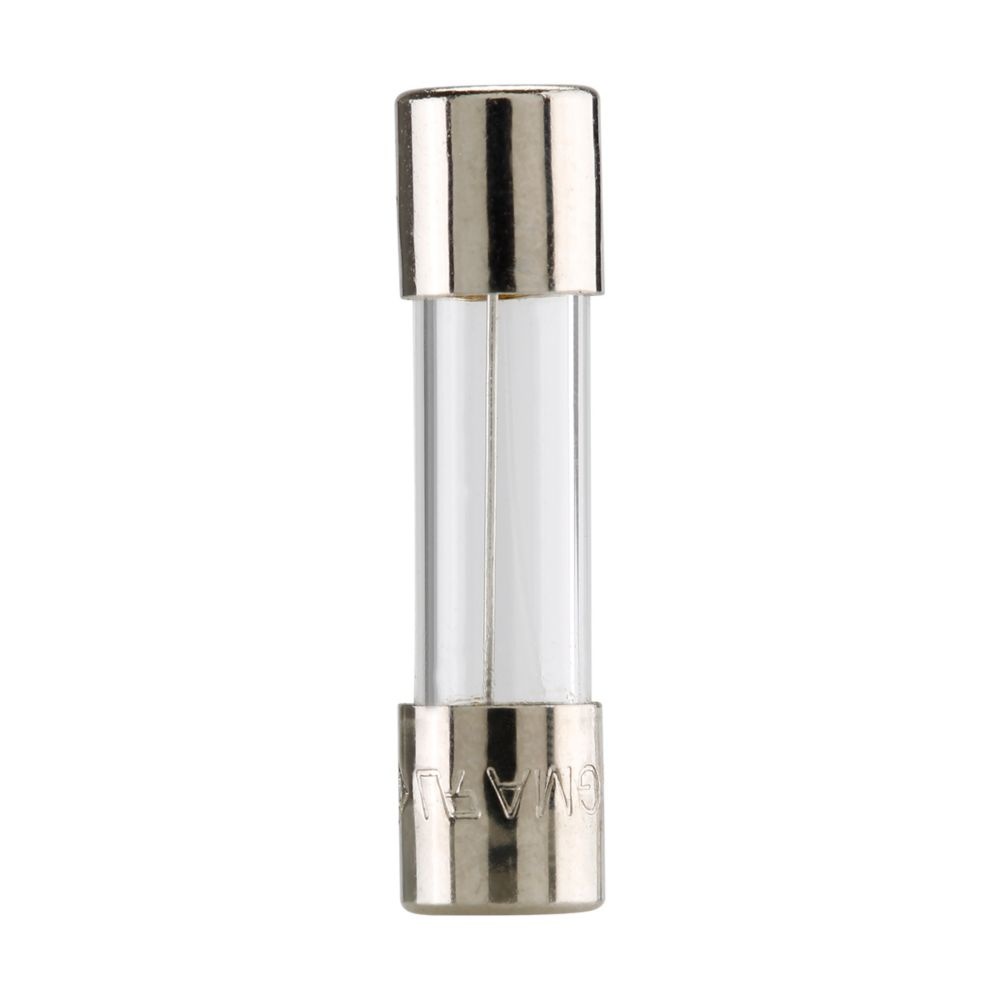

- Bussmann Fast Acting Fuse, Low Breaking Small Dimension, Series: GMA, Non-Indicating, Non-Rejection, 2 A, 250 V AC, 100 A, 10 kA Interrupt, 60 min, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 5 mm Dia x 20 mm L Body
BK/GMA-2-R Application
Electronic CircuitsBK/GMA-2-R Item Features
- Fast acting for maximum component protection
- 100 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- 60 min maximum at 135%, 2 min maximum at 200% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
BK/GMA-2-R Standards
RoHS Compliant|UL 248-14 Guide JDYX|UL File No. E19180|CSA Class 1422-01|CSA File No. 53787|PSE Approved|CE CertifiedSKU #2460492Part Number #BK/GMA-2-RUNSPSC39121607UPC00051712647250
Image provided may only be a representation of final product and may include optional equipment
