Part Number # BK/HTB-22M-R
SKU # 2446981
BK/HTB-22M-R
Bussmann BK/HTB-22M-R
Part Number # BK/HTB-22M-R
SKU # 2446981
Bussmann BK/HTB-22M-R Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BK/HTB-22M-R |
| SKU #: | 2446981 |
| Amperage Rating: | 16 A |
| Dimensions: | 1.69 in L |
| Fuse Diameter: | 5 mm |
| Fuse Length: | 20 mm |
| Number of Poles: | 1 |
| Series: | HTB |
| Temperature Rating (Degrees F): | -55 to 85 deg C |
| Type: | Low Profile |
| Connection type: | Solder 3/16 in Quick Connect In-Line Rear |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | Rear Panel Hex Nut |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121607 |
| UPC: | 00051712658409 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann BK/HTB-22M-R
Brand: Bussmann
Part Number: BK/HTB-22M-R

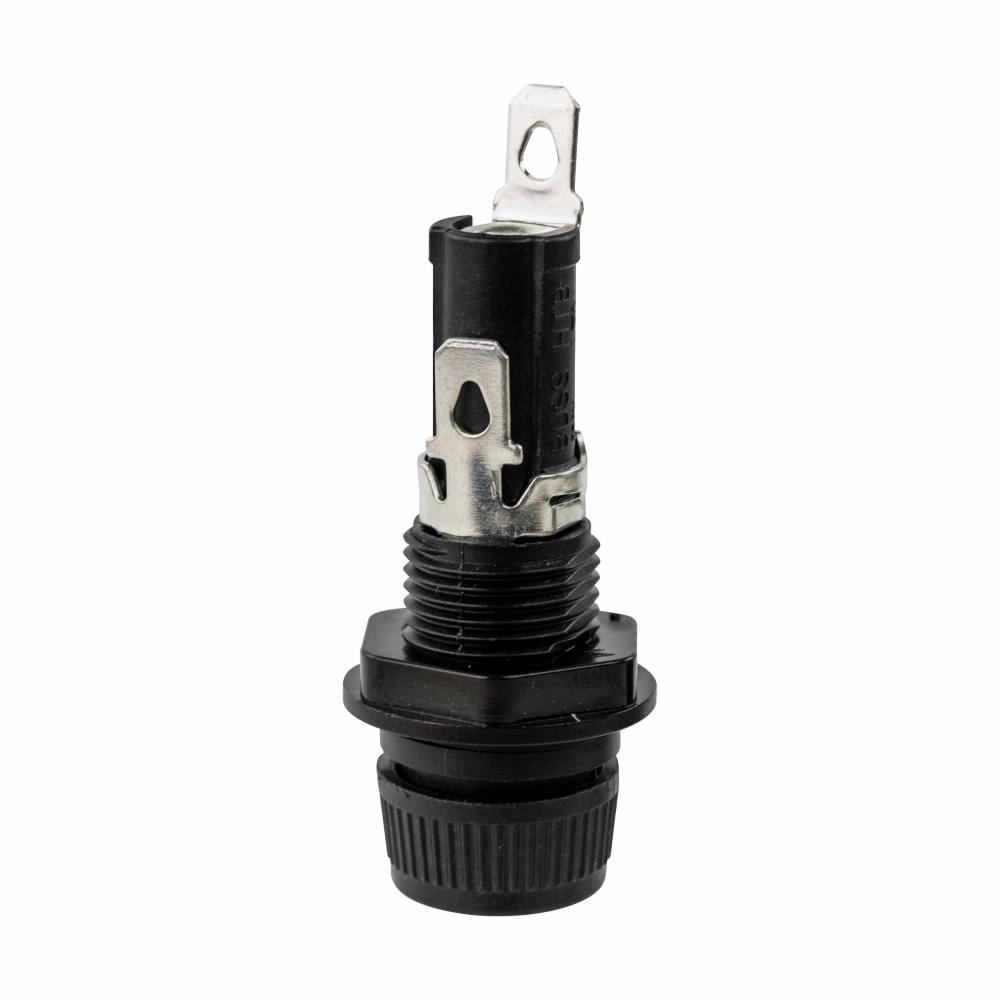

Bussmann Fuse Holder, Low Profile, Series: HTB, 250 VAC, 16 A, 1 Pole, Solder 3/16 in Quick Connect In-Line Rear, Rear Panel Hex Nut Mount, 20 mm Fuse Length, 5 mm Fuse Dia, -55 to 85 deg C, Thermoplastic, Black, 1.69 in L
Additional Description: BUSS-BK/HTB-22M-R FUSEHOLER ROHS COMPLIANT
Catalog Description: 15A 250V 5mm x 20mm Knob Type RoHS Compliant Panel Mount Fuseholder, 3/16" Quick Connects, In-Line Rear Terminal - Bulk Packaging - Bulk Packaging
BK/HTB-22M-R Item Features
- High temperature, flame retardant thermoplastic construction
- Spacer black polycarbonate mounting nut, tin plated brass terminals
- Withstands 15 to 20 in-lb torque to mounting nut when mounting fuse holder to panel
- https://www.youtube.com/watch?v=YMvqUyoETXk
BK/HTB-22M-R Standards
RoHS Compliant|UL Recognized|Guide IZLT2, File No. E14853|CSA Class 622501 File No. File No. 47235|CE Certified|VDE Certified|SEMKO Certified|UL 94V-0 Flammability RatingSKU #2446981Part Number #BK/HTB-22M-RUNSPSC39121607UPC00051712658409
Image provided may only be a representation of final product and may include optional equipment
