BK/S501-6.3-R
Bussmann BK/S501-6.3-R
Part Number # BK/S501-6.3-R
SKU # 2460339
Bussmann BK/S501-6.3-R Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BK/S501-6.3-R |
| SKU #: | 2460339 |
| Series: | S501 |
| UNSPSC: | 39121607 |
| UPC: | 00051712648219 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann BK/S501-6.3-R
Brand: Bussmann
Part Number: BK/S501-6.3-R

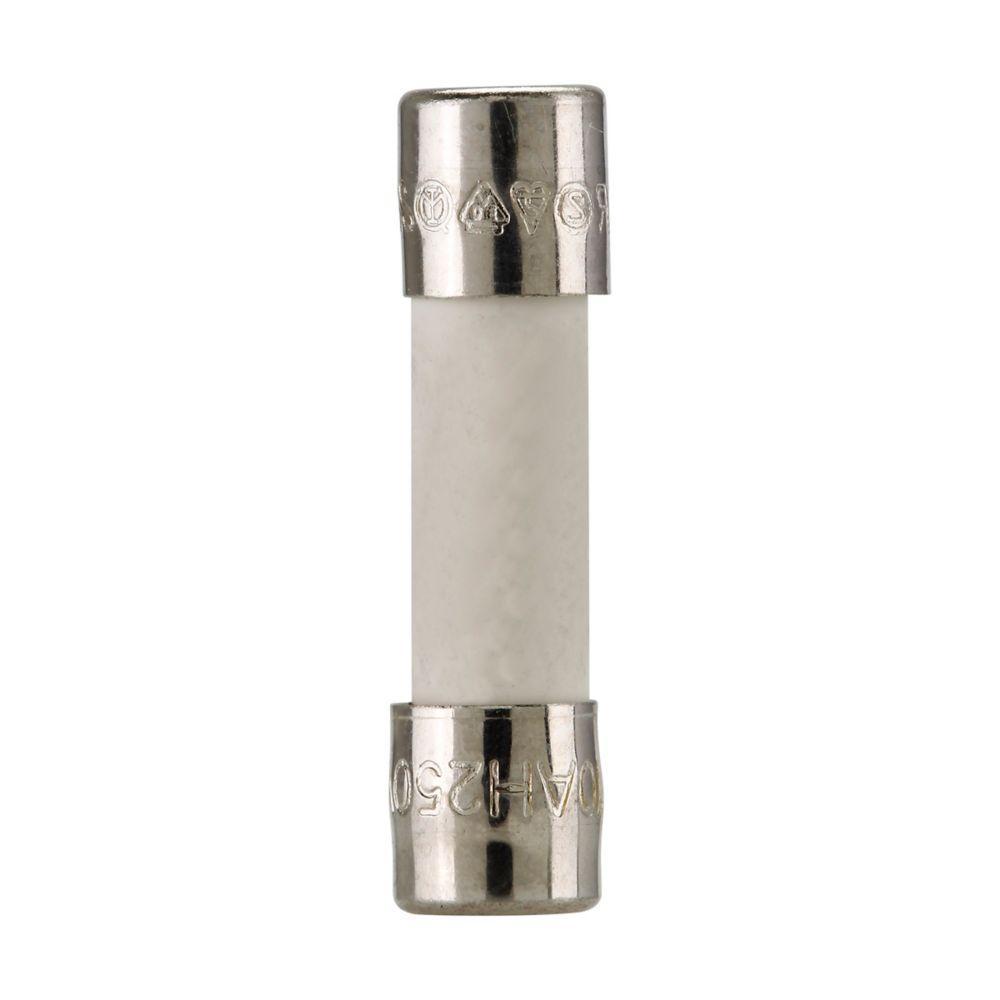

Bussmann Fast Acting Fuse, Small Dimension, Series: S501, Non-Indicating, Non-Rejection, 6.3 A, 250 V AC/32 V DC, 1500 A Interrupt, 50 Hz Frequency, 60 min, 30 min, 10 ms, 3 s, 3 ms, 300 ms, 20 ms Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Single Element, Ceramic, 5 mm Dia x 20 mm L Body
Additional Description: BUSS-BK/S501-6.3-R (N) S501 6.3A BUSS FA BK 100 BOX -R NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton S501 Series Fast-acting fuse 6.30A, 250 Vac or less, 32 Vdc (self certified), BK-S501-6-3-R
BK/S501-6.3-R Application
Electronic CircuitsBK/S501-6.3-R Item Features
- Fast acting for maximum protection
- High break capacity for use in higher fault energy electronic circuitry
- Nickel plated brass end caps
- 60 min minimum at 1.5 In, 30 min maximum at 2.1 In, 10 ms minimum and 3 s maximum at 2.75 In, 3 ms minimum and 300 ms maximum at 4 In, 20 ms maximum at 10 In response time
- 1500 A at 250 VAC interrupt rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
BK/S501-6.3-R Standards
IEC 60127-2|cULus Guide JDYX, File No. E19180,2, JDYX8|CCC File No. 2005010207155691|CSA File No. 53787|IMQ File No. EB405|VDE File No. 40015517|BSI File No. KM55676|SEMKO File No. 413779SKU #2460339Part Number #BK/S501-6.3-RUNSPSC39121607UPC00051712648219
Image provided may only be a representation of final product and may include optional equipment
