Part Number # BK/SC-30
SKU # 2196066
Image provided may only be a representation of
final product and may include optional equipment
BK/SC-30

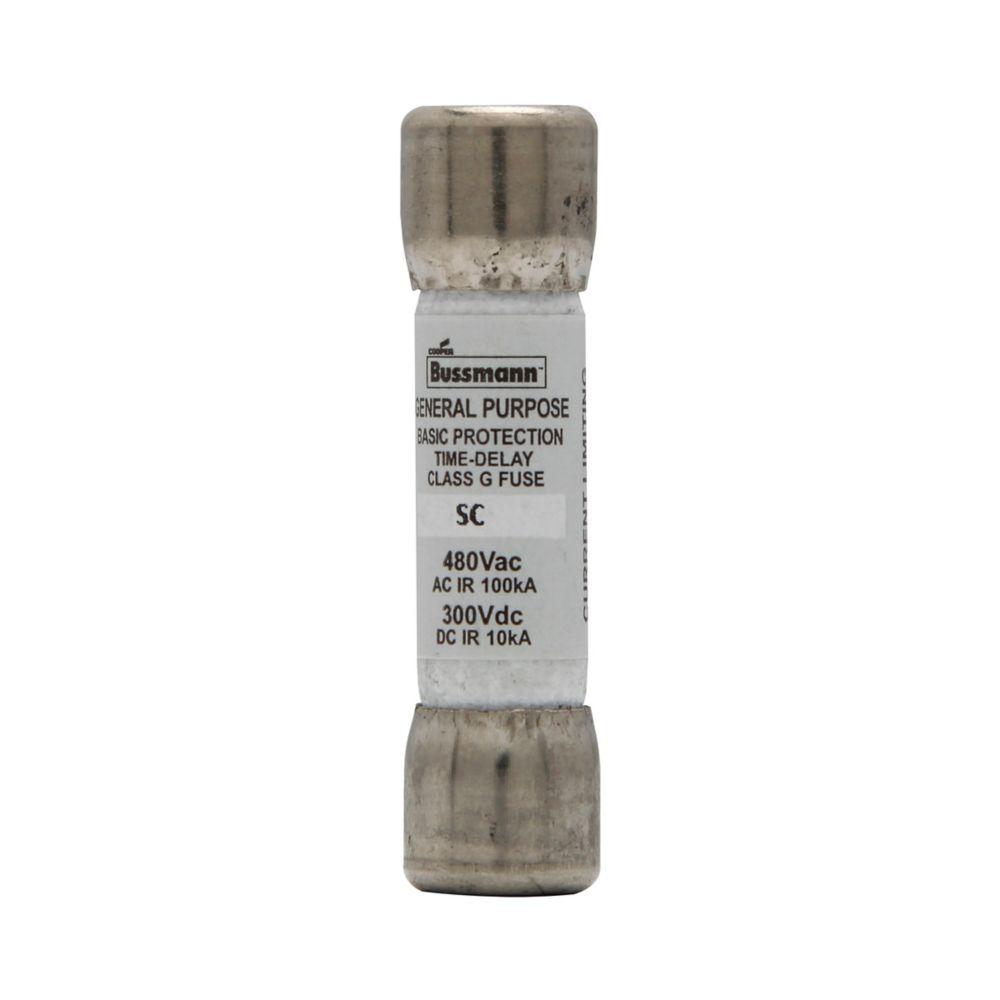

Bussmann BK/SC-30 Time Delay Fuse
Part Number # BK/SC-30
SKU # 2196066
Bussmann BK/SC-30 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BK/SC-30 |
| SKU #: | 2196066 |
| Amperage Rating: | 30, 30 A |
| Body Type: | Fuse |
| Class: | G |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 10 kAIC at 300 V DC, 100 kAIC at 480 V AC, 10/100, 10/100 kA |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 12, 12 s at 200%, 12 sec at 200% |
| Series: | BUSSMANN, SC Series |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Current Limiting, SC |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121607 |
| UPC: | 00051712750905 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann BK/SC-30 Time Delay Fuse
Brand: Bussmann
Part Number: BK/SC-30
Bussmann Time Delay Fuse, Current Limiting, Series: SC Series, Rejection/Non-Rejection: Rejection, 30 A, 480 VAC/300 VDC, 10/100 kA Interrupt, Class: G, 12 s at 200% Response, Ferrule Terminal, Holder Mount, 0.41 in Dia x 1.62 in L Body Size
Additional Description: BUSS-BK/SC-30 BUSS SC FUSE CLASS G
Catalog Description: Eaton Bussmann series SC fuse, Current-limiting time-delay fuse, Rejection style, 30 A, Class G, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 10 kAIC at 300 Vdc, 100 kAIC at 480 Vac, Bulk, 480 V, 300 Vdc
BK/SC-30 Application
For Industrial Facilities & Factories - Facility: Safety and Security SystemsBK/SC-30 Item Features
- Most economical overcurrent protection solution compared to circuit breakers
- Compact branch circuit units with high interrupt rating and current limitation
- Size rejection by length helps prevent over fusing
- 100 kA rms symmetrical, 10 kA DC interrupt rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
BK/SC-30 Standards
RoHS CompliantSKU #2196066Part Number #BK/SC-30UNSPSC39121607UPC00051712750905
