BMM603-1C

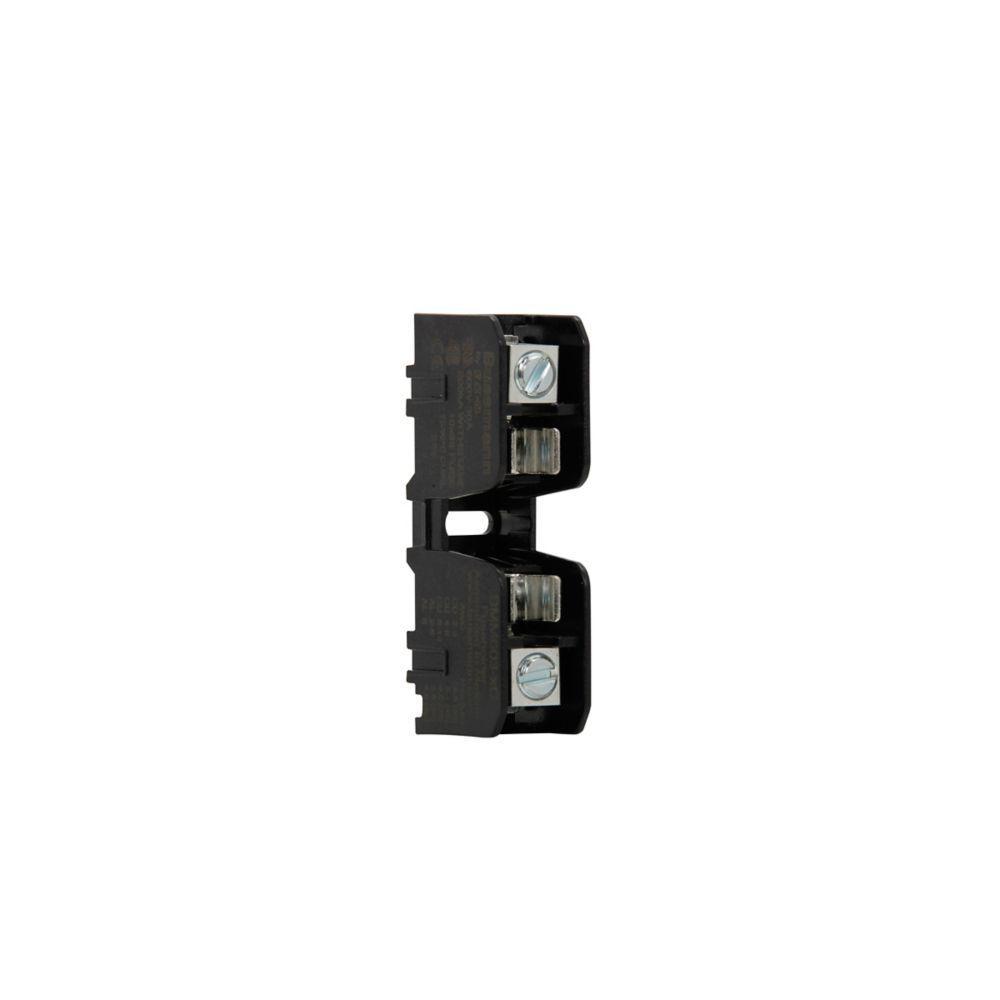

Bussmann BMM603-1C Midget Fuse Block
Part Number # BMM603-1C
SKU # 2318716
Bussmann BMM603-1C Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BMM603-1C |
| SKU #: | 2318716 |
| Amperage Rating: | 30, 30 A |
| Class: | CC, CC/Midget |
| Dimensions: | 3 in L x 0.8 in W x 1.3 in H |
| Fuse Diameter: | 13/32, 13/32 in |
| Fuse Length: | 1-1/2, 1-1/2 in |
| Number of Poles: | 1 |
| Series: | BMM |
| Suitable For Use With: | BAF Series 250 VAC Fast Acting, KTK Series 600 VAC Fast Acting, KLM Series 600 VAC/VDC Fast Acting, FNM Series 250 VAC Time Delay, FNQ Series 500 VAC Time Delay and Class aM/gG/gL IEC Industrial Fuses, Fast Acting 250 VAC BAF, Fast Acting 600 VAC KTK, Fast Acting 600 VAC/VDC KLM, Time Delay 250 VAC FNM, Time Delay 500 VAC FNQ, Class aM and gG/gL IEC Industrial Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Modular |
| Wire Size: | 14 to 2 AWG, 8 to 2 AWG |
| Connection type: | Box Lug, Box Lug/Wired |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712486484 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann BMM603-1C Midget Fuse Block
Brand: Bussmann
Part Number: BMM603-1C
Bussmann Fuse Block, Modular, Series: BMM, 600 V, 30 A, 1 Pole, Class: CC/Midget, Box Lug/Wired, 14 to 2 AWG, 8 to 2 AWG Wire, DIN Rail/Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 120 deg C, For Use With: BAF Series 250 VAC Fast Acting, KTK Series 600 VAC Fast Acting, KLM Series 600 VAC/VDC Fast Acting, FNM Series 250 VAC Time Delay, FNQ Series 500 VAC Time Delay and Class aM/gG/gL IEC Industrial Fuses, Thermoplastic, 3 in L x 0.8 in W x 1.3 in H
Additional Description: BUSS-BMM603-1C MIDGET FUSE BLOCK W/WIRE CONNECTOR 1P - 1p
Catalog Description: Eaton Bussmann series BMM fuse blocks, 30 A, Single-pole, Box lug, 200 kAIC, 600 V
BMM603-1C Application
Electrical Assemblies, Panels and EOEMs ApplicationsBMM603-1C Item Features
- Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Compact footprint consumes minimal panel space
- Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
- https://www.youtube.com/watch?v=YMvqUyoETXk
BMM603-1C Standards
CE Certified|CSA 47235-6225-01|RoHS Compliant|UL File No.E14853 Guide IZLT|UL94 V-0 Flammability RatingSKU #2318716Part Number #BMM603-1CUNSPSC39121624UPC00051712486484
