Part Number # BMM603-2C
SKU # 2362336
Image Disclaimers Message
BMM603-2C

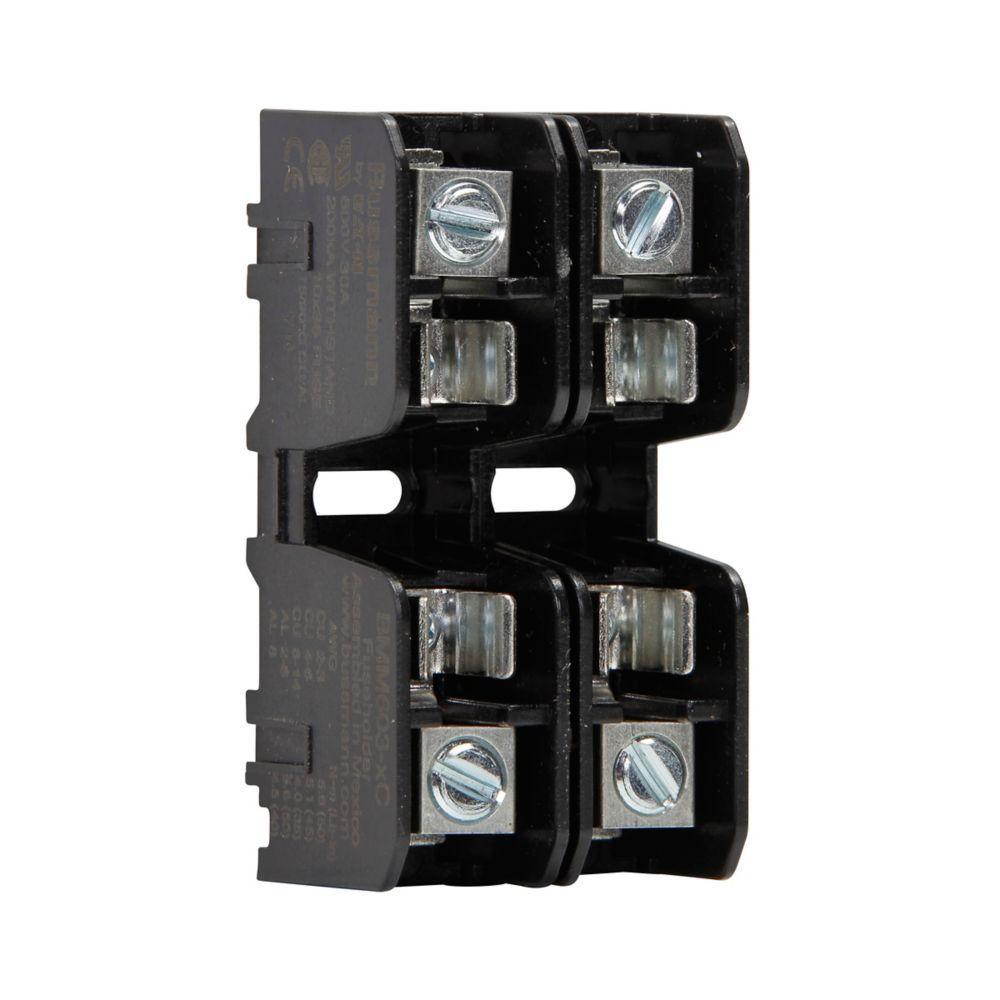

Bussmann BMM603-2C Fuse Block
Part Number # BMM603-2C
SKU # 2362336
$70.73 / Each
Typical price:$143.83 / Each
Bussmann BMM603-2C Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BMM603-2C |
| SKU #: | 2362336 |
| Amperage Rating: | 30 A |
| Class: | Midget |
| Fuse Diameter: | 13/32 in |
| Fuse Length: | 1-1/2 in |
| Number of Poles: | 2 |
| Series: | BMM |
| Suitable For Use With: | BAF Series 250 V AC Fast Acting, KTK Series 600 V AC Fast Acting, KLM Series 600 V AC/DC Fast Acting, FNM Series 250 V AC Time Delay, FNQ Series 500 V AC Time Delay and Class aM/gG/gL IEC Industrial Fuses, BAF Series 250 VAC Fast Acting, KTK Series 600 VAC Fast Acting, KLM Series 600 VAC/VDC Fast Acting, FNM Series 250 VAC Time Delay, FNQ Series 500 VAC Time Delay and Class aM/gG/gL IEC Industrial Fuses, Midget Fuse |
| Temperature Rating (Degrees F): | -40 to 120 deg C |
| Type: | Modular |
| Connection type: | Box Lug/Wired, Wire |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712486491 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$70.73 / Each
Typical price:$143.83 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: BMM, 600 V, 30 A, 2 Pole, Class: Midget, Box Lug/Wired, DIN Rail/Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 120 deg C, For Use With: BAF Series 250 V AC Fast Acting, KTK Series 600 V AC Fast Acting, KLM Series 600 V AC/DC Fast Acting, FNM Series 250 V AC Time Delay, FNQ Series 500 V AC Time Delay and Class aM/gG/gL IEC Industrial Fuses, Thermoplastic
BMM603-2C Application
Electrical Assemblies, Panels and EOEMs ApplicationsBMM603-2C Item Features
- Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Compact footprint consumes minimal panel space
- Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
- https://www.youtube.com/watch?v=YMvqUyoETXk
BMM603-2C Standards
RoHS CompliantSKU #2362336Part Number #BMM603-2CUNSPSC39121624UPC00051712486491
