BMM603-3PQ
Bussmann BMM603-3PQ Midget Fuse Block
Part Number # BMM603-3PQ
SKU # 2348136
Bussmann BMM603-3PQ Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BMM603-3PQ |
| SKU #: | 2348136 |
| Dimensions: | 3 in L x 2.4 in W x 1.3 in H |
| UNSPSC: | 39121624 |
| UPC: | 00051712486439 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann BMM603-3PQ Midget Fuse Block
Brand: Bussmann
Part Number: BMM603-3PQ
Bussmann Fuse Block, Modular, Series: BMM, 600 V, 30 A, 3 Pole, Class: CC/Midget, 1/4 in Quick-Connect/Pressure Plate, 18 to 10 AWG Wire, DIN Rail/Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 120 deg C, For Use With: BAF Series 250 V AC Fast Acting, KTK Series 600 V AC Fast Acting, KLM Series 600 V AC/DC Fast Acting, FNM Series 250 V AC Time Delay, FNQ Series 500 V AC Time Delay and Class aM/gG/gL IEC Industrial Fuses, Thermoplastic, 3 in L x 2.4 in W x 1.3 in H
Additional Description: BUSS-BMM603-3PQ MIDGET FUSE BLOCK W/ PP & QC 3 POLE POLE
Catalog Description: Eaton Bussmann series BMM fuse blocks, 30 A, Three-pole, 200 kA, Pressure plate/quick connect, 200 kAIC, 600 V
BMM603-3PQ Application
Electrical Assemblies, Panels and EOEMs ApplicationsBMM603-3PQ Item Features
- Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Compact footprint consumes minimal panel space
- Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
- https://www.youtube.com/watch?v=YMvqUyoETXk
BMM603-3PQ Standards
CE Certified|CSA 47235-6225-01|RoHS Compliant|UL File No.E14853 Guide IZLT|UL94 V-0 Flammability RatingSKU #2348136Part Number #BMM603-3PQUNSPSC39121624UPC00051712486439

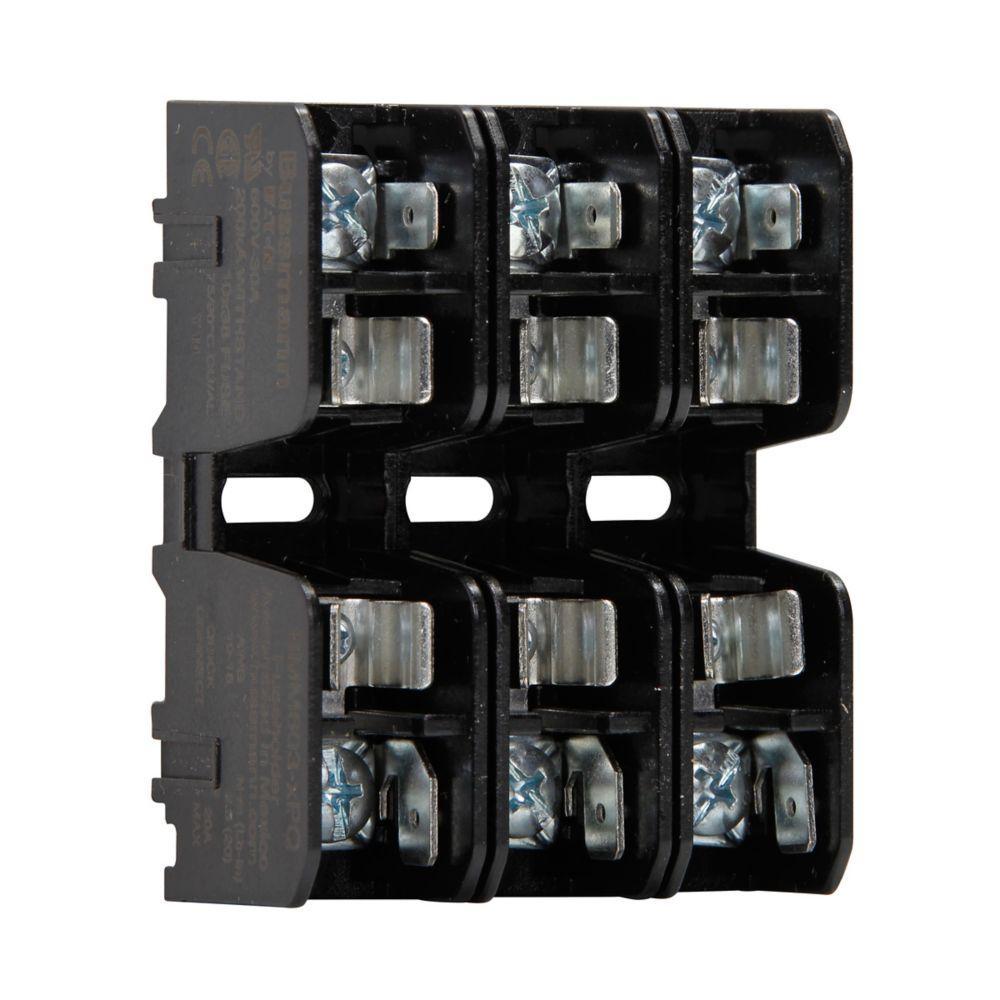

Image provided may only be a representation of final product and may include optional equipment
