Part Number # BSPA050480D4P
SKU # 2418195
Image Disclaimers Message
Brand: Bussmann
BSPA050480D4P

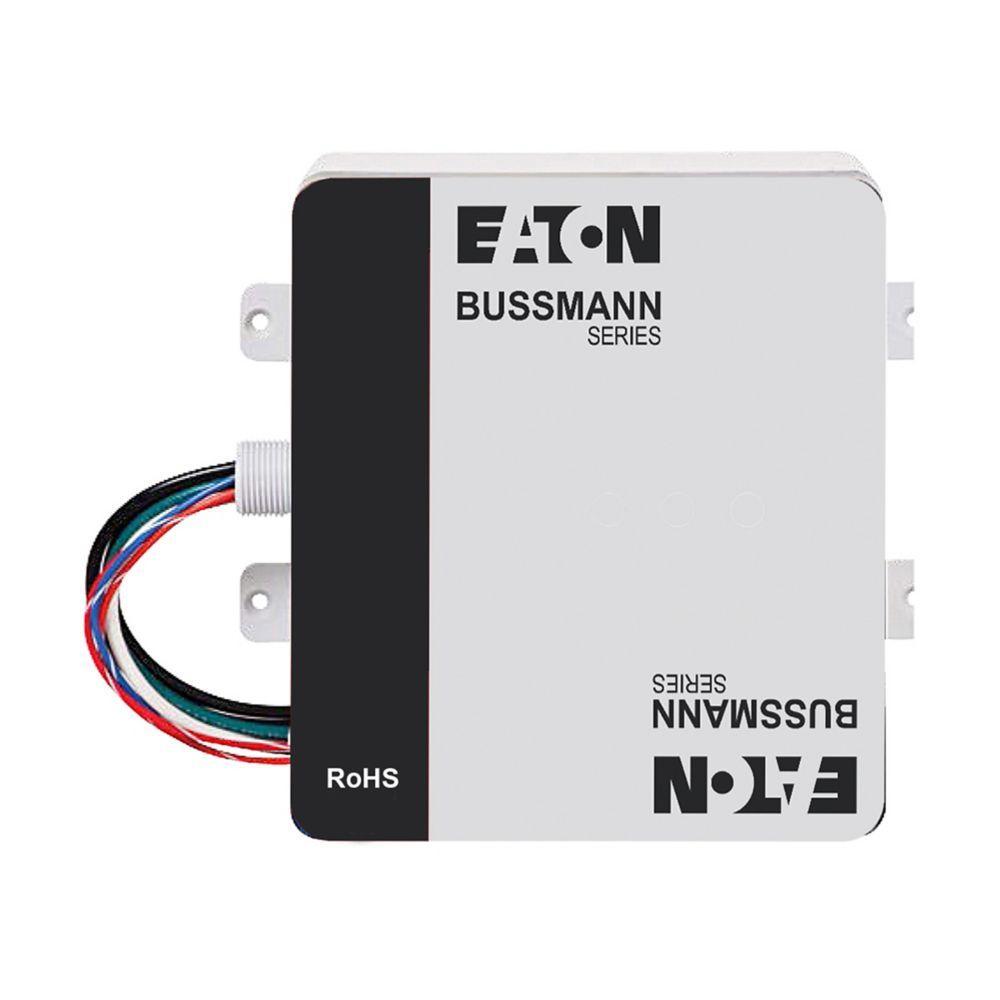

Bussmann BSPA050480D4P Surge Protection Device
Part Number # BSPA050480D4P
SKU # 2418195
$2183.99 / Each
Typical price:$4441.13 / Each
Bussmann BSPA050480D4P Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BSPA050480D4P |
| SKU #: | 2418195 |
| Class: | Type 1 SPD |
| Dimensions: | 5.5 in L x 3.19 in W x 6 in H |
| Enclosure Type: | NEMA 4X/IP65 |
| Environmental Conditions: | -40 to 140 deg F Operating, 5 to 95% Non-Condensing Relative Humidity |
| Frequency Rating: | 50/60 Hz |
| Indicator Type: | Tri-Color LED |
| Modes of Protection: | L-G/L-L |
| Number of Wires: | 3+G |
| Peak Surge Current: | 50 kA |
| Phase: | 3 |
| Series: | BSPA Series |
| Short Circuit Current Rating (kA): | 200 kA |
| Type: | 1-Port |
| Country of origin: | US |
| Mounting type: | Chase Nipple/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121610 |
| UPC: | 00051712698870 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2183.99 / Each
Typical price:$4441.13 / Each
Quantity:
- EATON Bussmann Surge Protection Device, 1-Port, Series: BSPA Series, 50/60 Hz Frequency, 3+G Wires, 200 kA Short Circuit, 50 kA Peak Surge Current, 480 Delta V Clamping, 20 kA Nominal Discharge, Modes of Protection: L-G/L-L, Tri-Color LED Indicator, 3 ph, Class: Type 1 SPD, Environmental Conditions: -40 to 140 deg F Operating, 5 to 95% Non-Condensing Relative Humidity, NEMA 4X/IP65 Enclosure, Chase Nipple/Panel Mounting, 5.5 in L x 3.19 in W x 6 in H Dimensions
BSPA050480D4P Application
For most commercial and light industrial applications covering service entrances, distribution panelboards and point-of-use applicationsBSPA050480D4P Item Features
- Thermally protected metal oxide varistor (MOV) technology
- Tri-colored LED status indicators display continuous self-diagnostic testing, including neutral ground mode
- Corrosion resistant NEMA 4X enclosure with detachable mounting feet
- Factory wired with 36 in 10 AWG leads
- No user serviceable parts or items requiring periodic maintenance
- Form C relay configuration
BSPA050480D4P Standards
UL 1449, 4th Edition|UL 1283, 6th Edition|CSA C22.2 No. 269.1-14SKU #2418195Part Number #BSPA050480D4PUNSPSC39121610UPC00051712698870
