Part Number # BSPMA1120S2GR
SKU # 2427357
Image Disclaimers Message
BSPMA1120S2GR

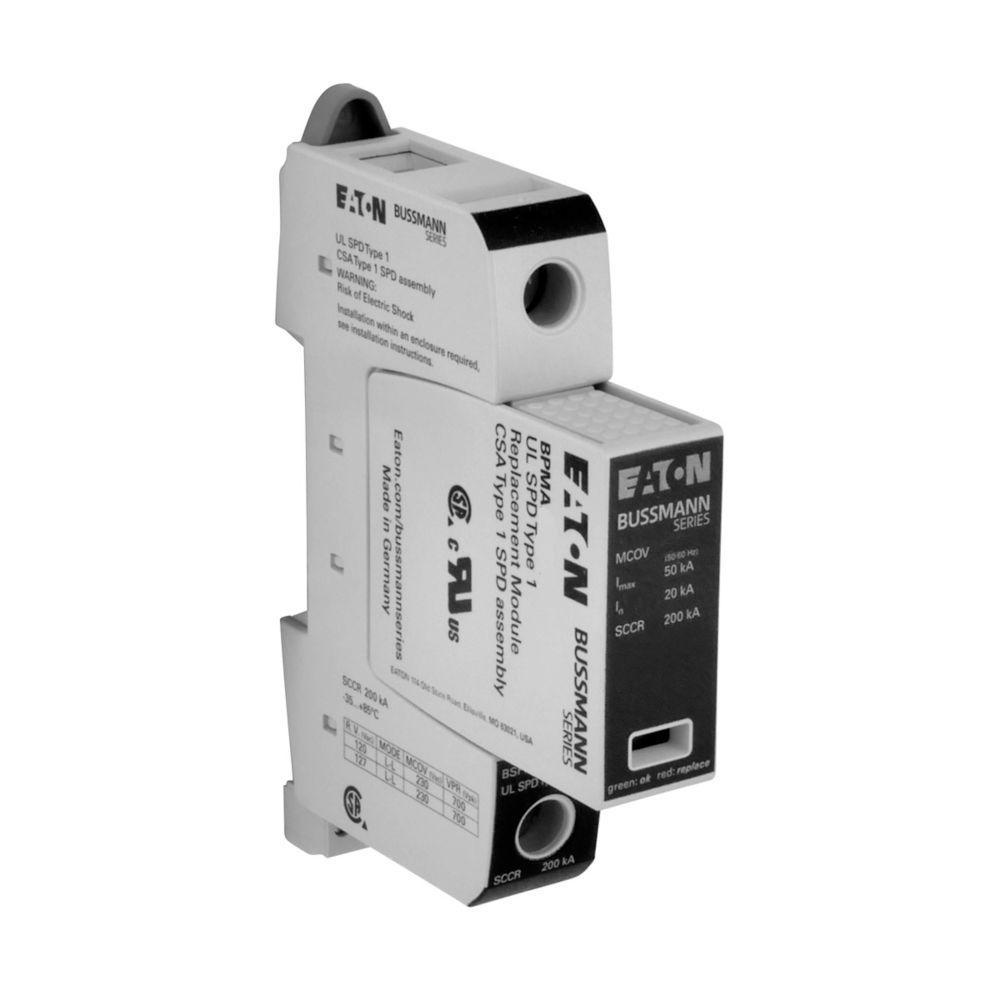

Bussmann BSPMA1120S2GR Surge Protection Device
Part Number # BSPMA1120S2GR
SKU # 2427357
$292.57 / Each
Typical price:$594.94 / Each
Bussmann BSPMA1120S2GR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BSPMA1120S2GR |
| SKU #: | 2427357 |
| Class: | GL/GG |
| Dimensions: | 0.71 in L x 2.56 in W x 3.54 in H |
| Environmental Conditions: | -35 to 85 deg C Operating |
| Frequency Rating: | 50/60 Hz |
| Indicator Type: | easyID Visual/Remote Contact |
| Number of Poles: | 1 |
| Number of Wires: | 2 |
| Peak Surge Current: | 200 kA |
| Phase: | 1, 1 ph |
| Response Time: | 25 ns |
| Series: | BSPMA Series |
| Short Circuit Current Rating (kA): | 200 kA |
| Type: | Surge Arrestor |
| Country of origin: | DE |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121610 |
| UPC: | 00051712709026 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$292.57 / Each
Typical price:$594.94 / Each
Quantity:
- Bussmann Surge Protection Device, Surge Arrestor, Series: BSPMA Series, 50/60 Hz, 1 Pole, 2 Wires, Short Circuit Current Rating: 200 kA, 200 kA Peak Surge, 120 V AC Clamping, 25 ns Response, easyID Visual/Remote Contact Indicator, 1 ph, Class: GL/GG, Environmental Conditions: -35 to 85 deg C Operating, DIN Rail Mount, Thermoplastic, 0.71 in L x 2.56 in W x 3.54 in H
BSPMA1120S2GR Item Features
- MOV type technology
- Modular DIN rail design with module rejection feature makes it easy to install and maintain
- EasyID visual indication and standard remote contact signaling make status monitoring simple
- When properly installed, IP20 finger-safe design improves electrical safety
- https://www.youtube.com/watch?v=YMvqUyoETXk
BSPMA1120S2GR Standards
BAA Compliant|RoHS Compliant|UL 1449 4th EditionSKU #2427357Part Number #BSPMA1120S2GRUNSPSC39121610UPC00051712709026
