BSPMA3600WYGR

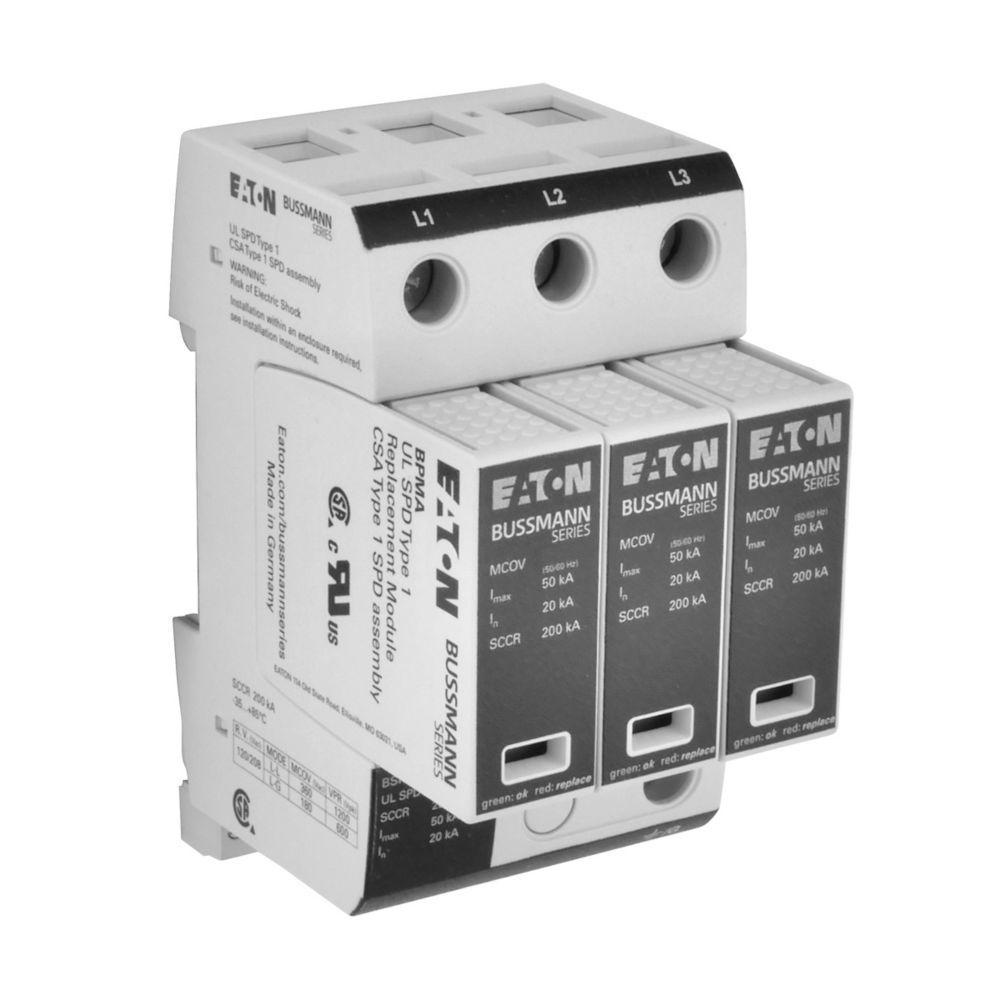

Bussmann BSPMA3600WYGR Surge Protection Device
Part Number # BSPMA3600WYGR
SKU # 2425466
$910.17 / Each
Typical price:$1850.83 / Each
Bussmann BSPMA3600WYGR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | BSPMA3600WYGR |
| SKU #: | 2425466 |
| Class: | GL/GG |
| Dimensions: | 2.13 in L x 2.56 in W x 3.54 in H |
| Electrical Ratings: | 347/600 V |
| Enclosure Type: | IP20 |
| Environmental Conditions: | -35 to 85 deg C Operating |
| Frequency Rating: | 50/60 Hz |
| Indicator Type: | Remote Contact |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Peak Surge Current: | 200 kA |
| Phase: | 3, 3 ph |
| Response Time: | 25 ns |
| Series: | BSPMA Series |
| Short Circuit Current Rating (kA): | 125 kA |
| Type: | Surge Arrestor |
| Country of origin: | DE |
| Material: | Thermoplastic |
| Mounting type: | 35 mm DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121610 |
| UPC: | 00051712709101 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$910.17 / Each
Typical price:$1850.83 / Each
Quantity:
- Bussmann Surge Protection Device, Surge Arrestor, Series: BSPMA Series, 347/600 V, 50/60 Hz, 3 Pole, 3 Wires, Short Circuit Current Rating: 125 kA, 200 kA Peak Surge, 600Y VAC Clamping, 20 kA Nominal Discharge, 25 ns Response, Remote Contact Indicator, 3 ph, Class: GL/GG, Environmental Conditions: -35 to 85 deg C Operating, IP20 Enclosure, 35 mm DIN Rail Mount, Thermoplastic, 2.13 in L x 2.56 in W x 3.54 in H
BSPMA3600WYGR Application
Surge Protection ApplicationsBSPMA3600WYGR Item Features
- 200 kA SCCR for demanding applications
- Modular DIN rail design with module rejection feature makes it easy to install and maintain
- When properly installed, IP20 finger-safe design improves electrical safety
- MOV technology
- https://www.youtube.com/watch?v=YMvqUyoETXk
BSPMA3600WYGR Standards
RoHS Compliant|UL 94 V-0 Flammability Rating|UL 1449, 4th Edition|CE Certified|EN 60068-2|CSA CertifiedSKU #2425466Part Number #BSPMA3600WYGRUNSPSC39121610UPC00051712709101
