Part Number # CCP2-1-30CC
SKU # 2380294
Image Disclaimers Message
CCP2-1-30CC

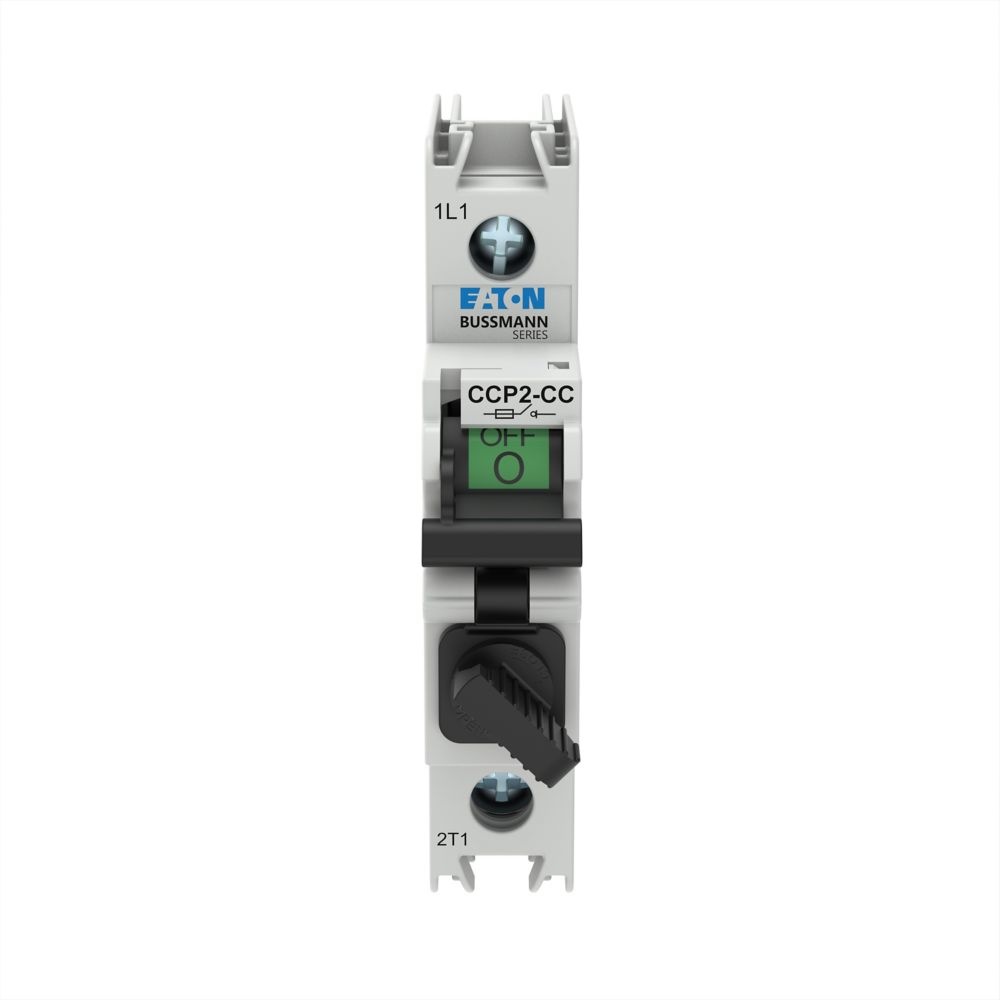

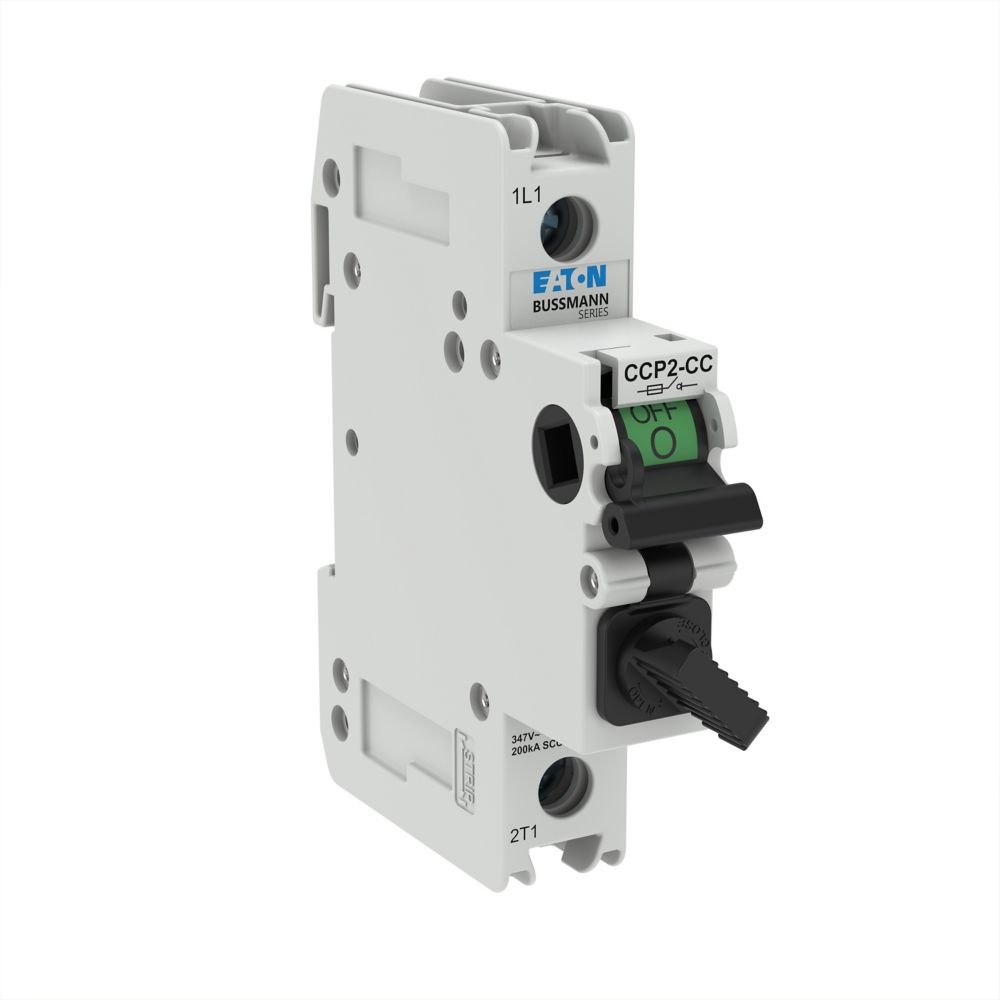

Bussmann CCP2-1-30CC Circuit Protector Disconnect Switch
Part Number # CCP2-1-30CC
SKU # 2380294
$399.06 / 6Each
Typical price:$739.74 / Each
Bussmann CCP2-1-30CC Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CCP2-1-30CC |
| SKU #: | 2380294 |
| Amperage Rating: | 30 A |
| Number of Poles: | 1 |
| Operating Temperature: | -4 to 167 deg F |
| Operator: | Switch Handle |
| Type: | Compact Fused |
| Height: | 3.7 in |
| Mounting type: | 35 mm DIN Rail |
| Width: | 0.3 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122233 |
| UPC: | 00051712709163 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$399.06 / 6Each
Typical price:$739.74 / Each
Quantity:
- EATON Bussmann Circuit Protector Disconnect Switch, Compact Fused, 347 V AC/125 V DC, 30 A, 1 Pole, 35 mm DIN Rail Mount, Switch Handle Operator, -4 to 167 deg F Operating, 0.3 in W, 3.7 in Height
CCP2-1-30CC Item Features
- Extremely compact (18 mm wide per pole ) design
- Disconnect rated for load isolation
- IEC 10x38 version complies with IEC 60947-3 and suitable for branch circuit protection and disconnect
- Suitable for global installations, the switches comply with UL, cULus and IEC standards accepting UL class CC, supplemental or IEC aM and gG/gL fuses
- Open fuse indication - standard local open fuse indicating light for each pole
- IP20 finger-safe with 10 AWG or larger wire (box lug terminals only)
- Built-in switch interlock prohibits removing the fuse under load
- Padlockable handle for lockout/tagout - 4 mm lock for switch only
- 1/4 in lock for rotary operated switches
CCP2-1-30CC Standards
UL 98 File No. E302370, Guide WHTY|cULus to Canadian Standard 22.2 No. 4-04|UL File No. E302370, Guide WHTY7|CE CertifiedSKU #2380294Part Number #CCP2-1-30CCUNSPSC39122233UPC00051712709163
