CCP2-1-30CF

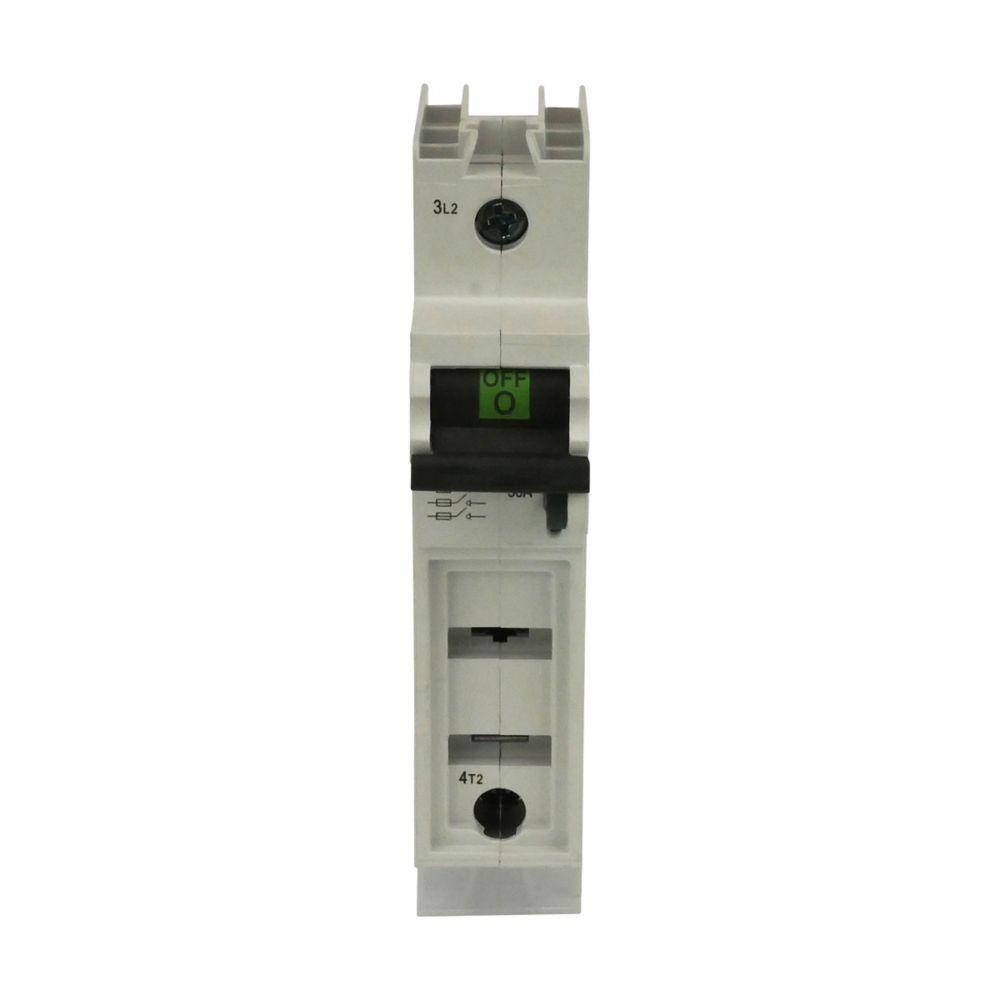

Bussmann CCP2-1-30CF Circuit Protector Disconnect Switch
Part Number # CCP2-1-30CF
SKU # 2401240
$559.44 / 6Each
Typical price:$1036.98 / Each
Bussmann CCP2-1-30CF Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CCP2-1-30CF |
| SKU #: | 2401240 |
| Amperage Rating: | 30 A |
| Number of Poles: | 1 |
| Operating Temperature: | -4 to 167 deg F |
| Operator: | Switch Handle |
| Type: | Compact Fused |
| Height: | 8.1 in |
| Mounting type: | 35 mm DIN Rail |
| Width: | 3 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122233 |
| UPC: | 00051712709248 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$559.44 / 6Each
Typical price:$1036.98 / Each
Quantity:
- EATON Bussmann Circuit Protector Disconnect Switch, Compact Fused, 347 V AC/125 V DC, 30 A, 1 Pole, 35 mm DIN Rail Mount, Switch Handle Operator, -4 to 167 deg F Operating, 3 in W, 8.1 in Height
CCP2-1-30CF Item Features
- Uses UL class CF time delay or fast acting CUBEFuse with class J electrical performance
- Extremely compact design at 25.4 mm wide per pole
- Amp rating rejection disconnects will not accept a CUBEFuse amp rating greater than switch rating
- Disconnect rated to provide a means for load isolation
- UL 98 listed and suitable for branch circuit disconnect and branch circuit protection with installed fuses
- Open fuse indication - local open fuse indication light standard on each pole
- Additional open fuse indication can be provided by the indicating time delay CUBEFuse (6 to 100 A)
- Finger-safe construction with 10 AWG wire or larger
- Built-in switch interlock prohibits removing or installing the fuse while in the ON position
- Padlockable for lockout/tagout procedures with a 1/4 in lock
- 200 kA AC, 100 kA DC short circuit current rating
CCP2-1-30CF Standards
UL 98SKU #2401240Part Number #CCP2-1-30CFUNSPSC39122233UPC00051712709248
