Part Number # CCP2-3-200CF
SKU # 2442561
Image Disclaimers Message
CCP2-3-200CF

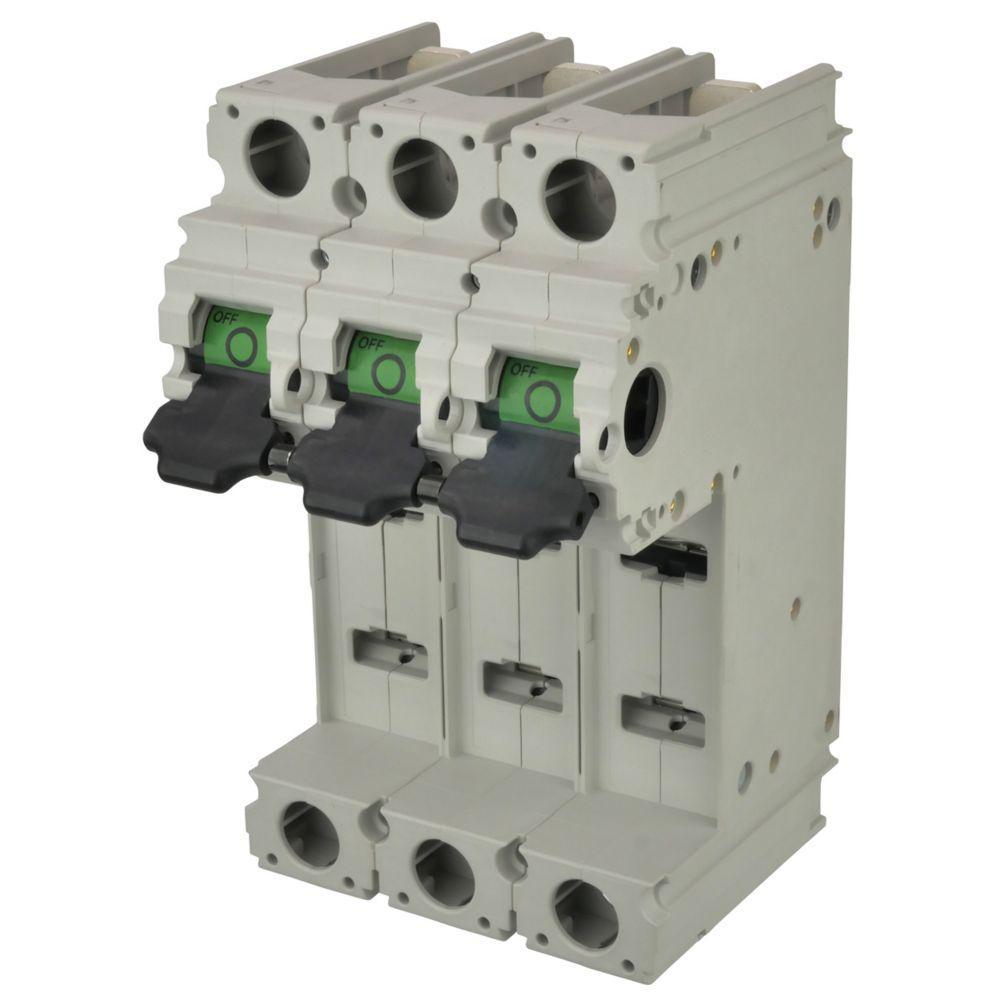

Bussmann CCP2-3-200CF N Cubefuse Circuit Protector Disconnect Switch
Part Number # CCP2-3-200CF
SKU # 2442561
$963.44 / Each
Typical price:$1416.26 / Each
Bussmann CCP2-3-200CF Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CCP2-3-200CF |
| SKU #: | 2442561 |
| Amperage Rating: | 200 A |
| Contact Form: | 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Horsepower: | 50/100/150 hp |
| Number of Poles: | 3 |
| Short Circuit Current Rating (kA): | 200 kA |
| Temperature Rating (Degrees F): | -4 to 167 deg F |
| Terminal Type: | Screw |
| Type: | Compact Fused |
| Country of origin: | MX |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122233 |
| UPC: | 00051712690089 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$963.44 / Each
Typical price:$1416.26 / Each
Quantity:
- EATON Bussmann CUBEFuse Circuit Protector Disconnect Switch, Compact Fused, 600 V AC/125 V DC, 200 A, 50/100/150 hp, 3 Pole, 200 kA Short Circuit Current Rating, 1NO-1NC 1 Form A/1 Form B, DIN Rail Mount, Screw Terminal, -4 to 167 deg F
CCP2-3-200CF Application
For use with class CF cube fuses, electrical assemblies, panels and OEMs applicationsCCP2-3-200CF Item Features
- Footprint half the space required by traditional fusible switches saves valuable panel space
- Multi-wire lug kit with terminal shrouds reduces wire connection and control panel components by allowing for power distribution to multiple loads
- Built-in switch interlock prohibits removing the fuse under load
- Standard open fuse indication speeds troubleshooting
- 1/4 in lockout/tagout provision enhances safety
- Straight voltage rated for application flexibility
- 50 hp at 240 VAC, 100 hp at 480 VAC, 150 hp at 600 VAC horsepower rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
CCP2-3-200CF Standards
Not ApplicableSKU #2442561Part Number #CCP2-3-200CFUNSPSC39122233UPC00051712690089
