Part Number # CCP2RL-3-30CF
SKU # 2436756
Brand: Bussmann
CCP2RL-3-30CF

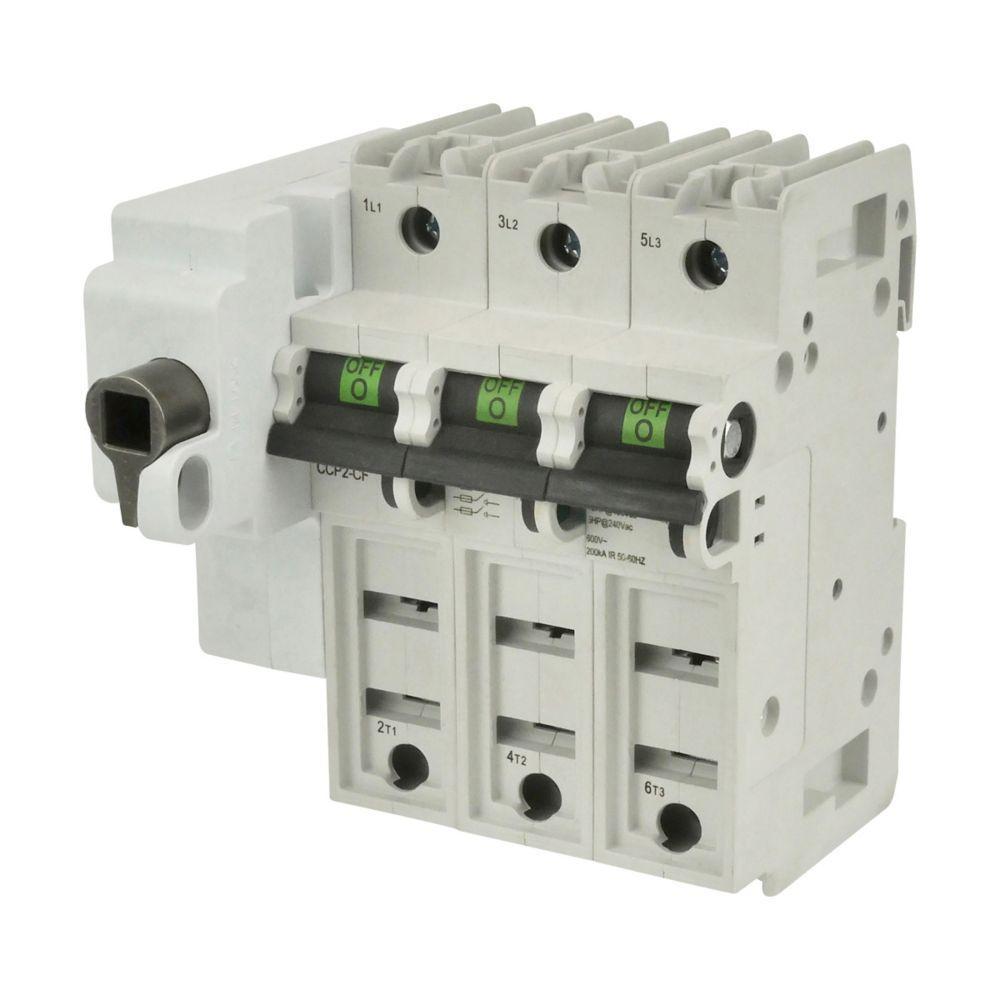

Bussmann CCP2RL-3-30CF Compact Circuit Protector Disconnect Switch
Part Number # CCP2RL-3-30CF
SKU # 2436756
$360.24 / Each
Typical price:$613.78 / Each
Bussmann CCP2RL-3-30CF Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CCP2RL-3-30CF |
| SKU #: | 2436756 |
| Amperage Rating: | 225 A |
| Fuse Type: | Class CF |
| Number of Poles: | 3 |
| Operator: | Rotary |
| Type: | Left Front |
| Depth: | 2.9 in |
| Height: | 3.7 in |
| Width: | 0.3 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122233 |
| UPC: | 00051712709873 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$360.24 / Each
Typical price:$613.78 / Each
Quantity:
Bussmann CCP2RL-3-30CF Compact Circuit Protector Disconnect Switch
Brand: Bussmann
Part Number: CCP2RL-3-30CF
Additional Description: BUSS-CCP2RL-3-30CF CCP2 3P 30A CF W/ ROTARY H&M LEFT
Catalog Description: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Three-pole, 200 kA - CCP2RL-3-30CF
CCP2RL-3-30CF Application
Electrical Assemblies, Panels and EOEMsCCP2RL-3-30CF Item Features
- Uses UL Class CF time-delay or fast-acting CUBEFuse with class J electrical performance
- Extremely compact design at 25.4 mm W per pole
- Amp rating rejection disconnects will not accept a CUBEFuse amp rating greater than switch rating
- Visible contact separation
- Finger safe, lock-on provision
CCP2RL-3-30CF Standards
cULus Listed|IEC Standard|UL 98SKU #2436756Part Number #CCP2RL-3-30CFUNSPSC39122233UPC00051712709873
Image provided may only be a representation of final product and may include optional equipment
