Bussmann CCP2S-3-30CF Circuit Protector Disconnect Switch
Part Number # CCP2S-3-30CF
SKU # 2410888
CCP2S-3-30CF
Bussmann CCP2S-3-30CF Circuit Protector Disconnect Switch
Part Number # CCP2S-3-30CF
SKU # 2410888
Bussmann CCP2S-3-30CF Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CCP2S-3-30CF |
| SKU #: | 2410888 |
| Operator: | Right Side Rotary/Clockwise Operated Switch |
| UNSPSC: | 39122233 |
| UPC: | 00051712709897 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

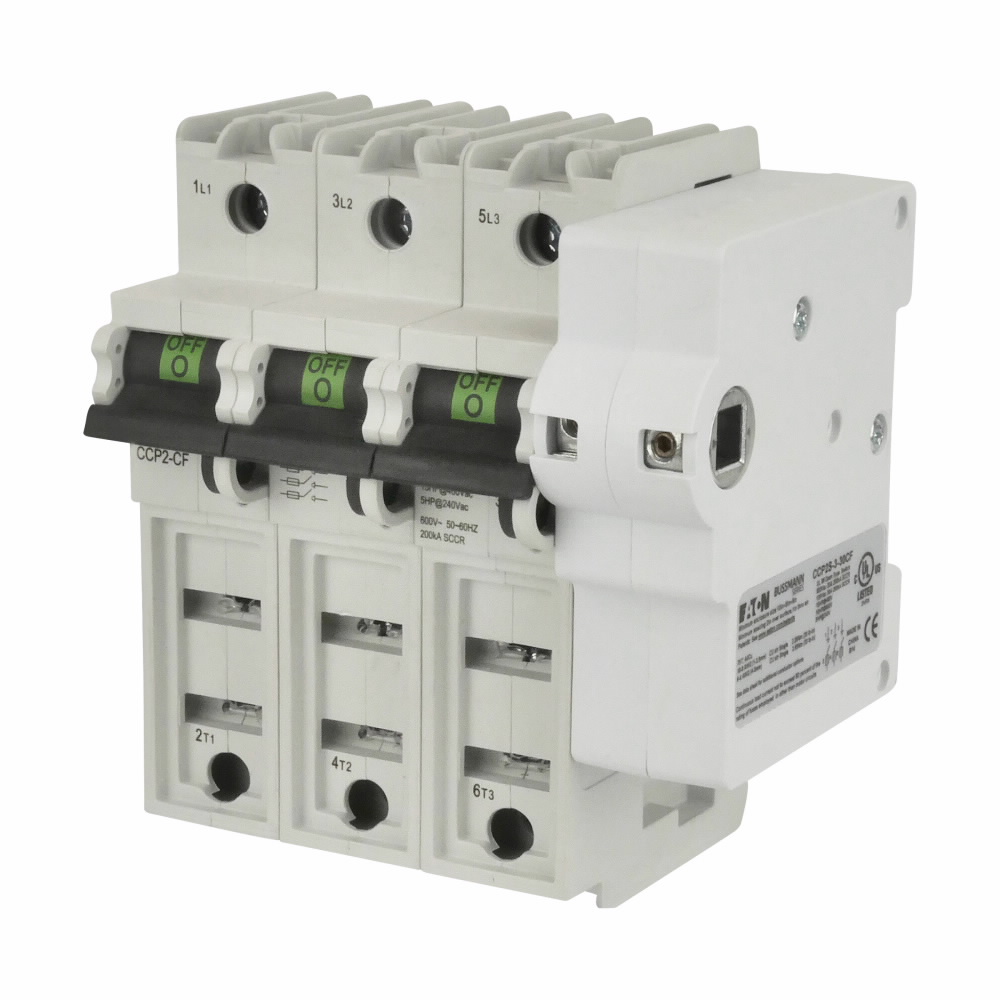

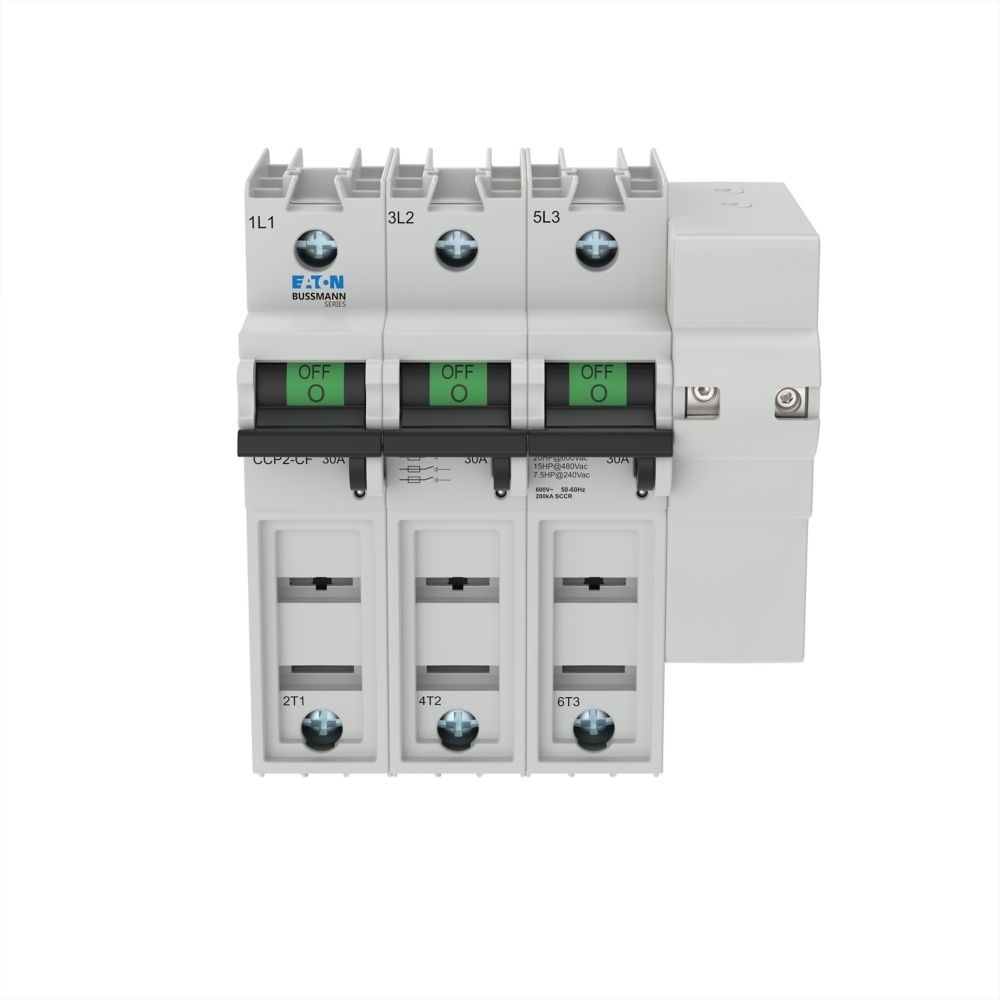

Bussmann CCP2S-3-30CF Circuit Protector Disconnect Switch
Brand: Bussmann
Part Number: CCP2S-3-30CF
EATON Bussmann Circuit Protector Disconnect Switch, Compact Fused, 600 V AC/125 V DC, 30 A, 3 Pole, 35 mm DIN Rail Mounting, Right Side Rotary/Clockwise Operated Switch Operator, -4 to 167 deg F Operating, 0.3 in Width, 3.7 in Height
Additional Description: BUSS-CCP2S-3-30CF CCP2 3P 30A CF W/ SIDE H&M RIGHT
Catalog Description: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Three-pole, 200 kA - CCP2S-3-30CF
CCP2S-3-30CF Application
Electrical Assemblies, Panels and EOEMsCCP2S-3-30CF Item Features
- Uses UL class CF time delay or fast acting CUBEFuse with class J electrical performance
- Extremely compact design at 25.4 mm wide per pole
- Amp rating rejection disconnects will not accept a CUBEFuse amp rating greater than switch rating
- Disconnect rated to provide a means for load isolation
- UL 98 listed and suitable for branch circuit disconnect and branch circuit protection with installed fuses
- Open fuse indication - local open fuse indication light standard on each pole
- Additional open fuse indication can be provided by the indicating time delay CUBEFuse (6 to 100 A)
- Finger-safe construction with 10 AWG wire or larger
- Built-in switch interlock prohibits removing or installing the fuse while in the ON position
- Padlockable for lockout/tagout procedures with a 1/4 in lock
- 200 kA AC, 100 kA DC short circuit current rating
CCP2S-3-30CF Standards
UL 98 File No. E302370, Guide WHTY|cULus to Canadian Standard 22.2 No. 4-04 File No. E302370, Guide WHTY7|CE Certified|CCC CertifiedSKU #2410888Part Number #CCP2S-3-30CFUNSPSC39122233UPC00051712709897
Image provided may only be a representation of final product and may include optional equipment
