Part Number # CH222DU
SKU # 2437750
CH222DU

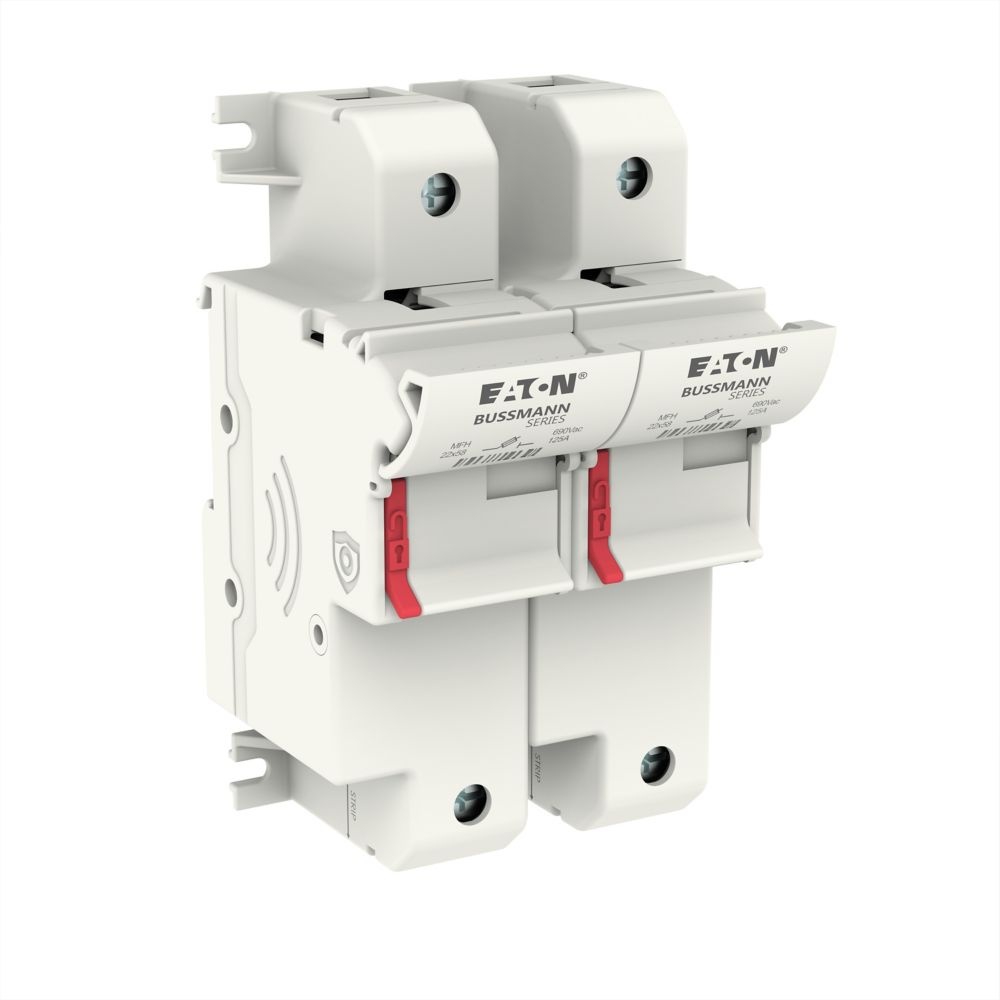

Bussmann CH222DU Low Voltage Cylindrical Fuse Holder, 690 VAC, 125 A, 2 Poles
Part Number # CH222DU
SKU # 2437750
Bussmann CH222DU Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CH222DU |
| SKU #: | 2437750 |
| Amperage Rating: | 125 A |
| Dimensions: | 237 mm L x 135 mm W x 90 mm H |
| Fuse Diameter: | 22 mm |
| Fuse Length: | 58 mm |
| Number of Poles: | 2 |
| Suitable For Use With: | Standard Cylindrical Fuse-Links and FW Type Ferrule Fuse-Links |
| Temperature Rating (Degrees F): | -20 to 70 deg C |
| Type: | Low Voltage Cylindrical |
| Country of origin: | CN |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712685399 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann CH222DU Low Voltage Cylindrical Fuse Holder, 690 VAC, 125 A, 2 Poles
Brand: Bussmann
Part Number: CH222DU
Bussmann Fuse Holder, Low Voltage Cylindrical, 690 VAC, 125 A, 2 Pole, DIN Rail Mounting, 58 mm Fuse Length, 22 mm Diameter Fuse, -20 to 70 deg C, For Use With: Standard Cylindrical Fuse-Links and FW Type Ferrule Fuse-Links, 237 mm L x 135 mm W x 90 mm H Dimensions
Additional Description: BUSS-CH222DU (N) 2P 22x58 Fuse Holder NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse accessory, Fuse-holder, low voltage, 125 A, AC 690 V, 22 x 58 mm, 2P, IEC, UL, C22M and C22G fuses, IEC 60269-1, IEC 60269-2, IP20
CH222DU Application
Electrical Assemblies, Panels and EOEMs - Aftermarket, Panel Builders, Control Panels for Machines, Industrial Facilities and Factories - Power Distribution and ControlCH222DU Item Features
- Compact dimensions
- Ventilation zones optimized for a better heat dissipation
- Inbuilt padlocking facility
- IP20 degree of protection
- Toolless DIN rail mounting, improves ease of use and reduces installation time and costs
- https://www.youtube.com/watch?v=YMvqUyoETXk
CH222DU Standards
EAC ,IEC 60269-2 ,UL Listed File E14853 ,IEC 60269-1 ,EAC ,UL Listed File E14853 ,IEC 60269-1 ,IEC 60269-2 ,UL Listed File E14853 ,IEC 60269-1 ,EAC ,IEC 60269-2 ,IEC 60269-1 ,EAC ,UL Listed File E14853 ,IEC 60269-2,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,CE-markering,RoHS-compliantSKU #2437750Part Number #CH222DUUNSPSC39121606UPC00051712685399
Image provided may only be a representation of final product and may include optional equipment
