Part Number # CH30J2I
SKU # 1715751
Image Disclaimers Message
Brand: Bussmann
CH30J2I

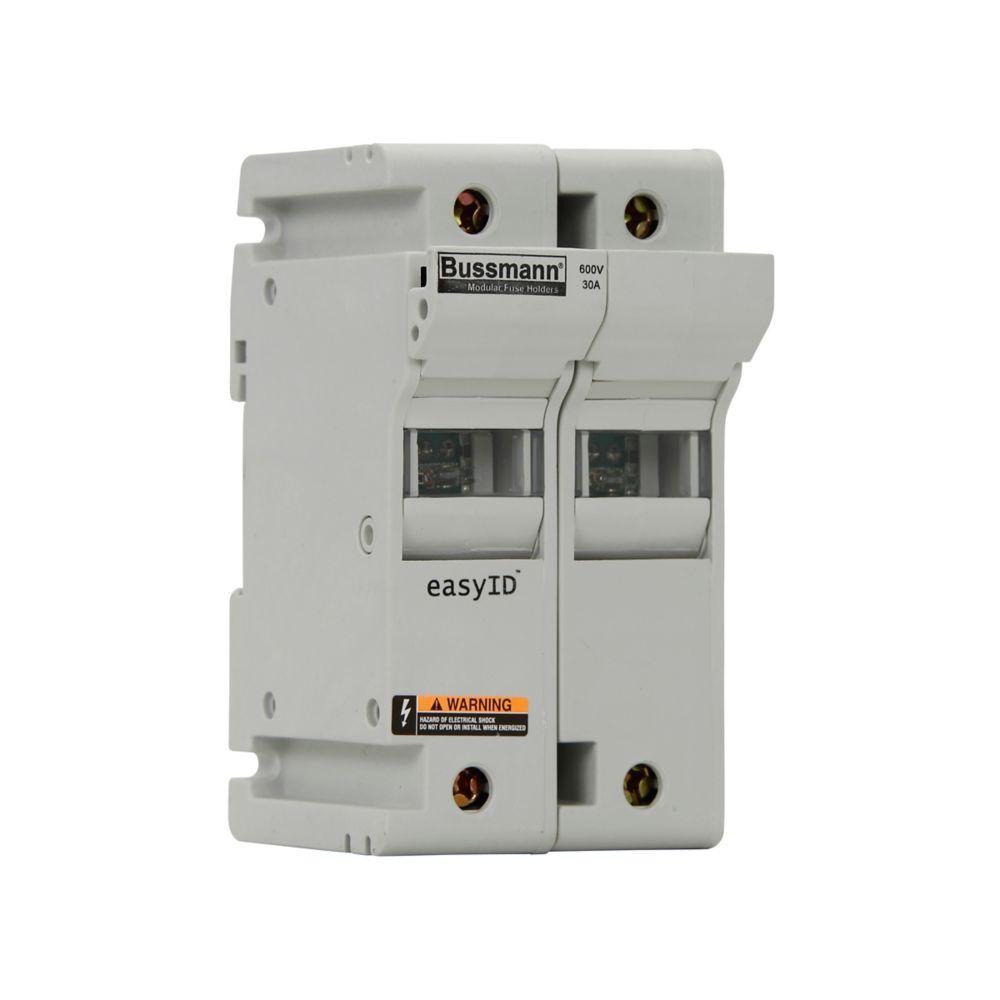

Bussmann CH30J2I Fuse Holder
Part Number # CH30J2I
SKU # 1715751
$630.27 / 3Each
Typical price:$1281.63 / Each
Bussmann CH30J2I Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CH30J2I |
| SKU #: | 1715751 |
| Amperage Rating: | 30, 30 A |
| Class: | J |
| Dimensions: | 2.56 in L x 2.83 in W x 4.59 in H |
| Fuse Diameter: | 0.81, 0.81 in |
| Fuse Length: | 2-1/4, 2-1/4 in |
| Number of Phases: | 3 |
| Number of Poles: | 2 |
| Series: | CH, CH Series |
| Suitable For Use With: | LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series Class J High Speed Fuse, LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed Class J Fuse |
| Temperature Rating (Degrees F): | 85, 85 deg C |
| Type: | Finger Safe Modular |
| Wire Size: | 18 to 1, 18 to 1 AWG |
| Color: | White |
| Connection type: | Box Lug |
| Material: | Copper/Thermoplastic, Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712630856 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$630.27 / 3Each
Typical price:$1281.63 / Each
Quantity:
- Bussmann easyID Fuse Holder, Finger Safe Modular, Series: CH, 600 V AC/DC, 30 A, 2 Pole, 3, Class: J, Box Lug, 18 to 1 AWG Wire, DIN Rail/Panel Mount, 2-1/4 in Fuse Length, 0.81 in Fuse Dia, 85 deg C, For Use With: LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series Class J High Speed Fuse, Copper/Thermoplastic, White, 2.56 in L x 2.83 in W x 4.59 in H
CH30J2I Application
Electrical Assemblies, Panels and EOEMs ApplicationsCH30J2I Item Features
- Neon lamp open fuse indicator
- Improved electrical safety with IP20 finger safe construction with lock out/tag out feature
- 3 ph fuse extraction assures all phases are opened for service work
- Tin plated copper clip
- https://www.youtube.com/watch?v=YMvqUyoETXk
CH30J2I Standards
CE Certified|CSA File No.47235|IEC 60529|RoHS Compliant|UL 4248 File No.14853 Guide IZLTSKU #1715751Part Number #CH30J2IUNSPSC39121624UPC00051712630856
