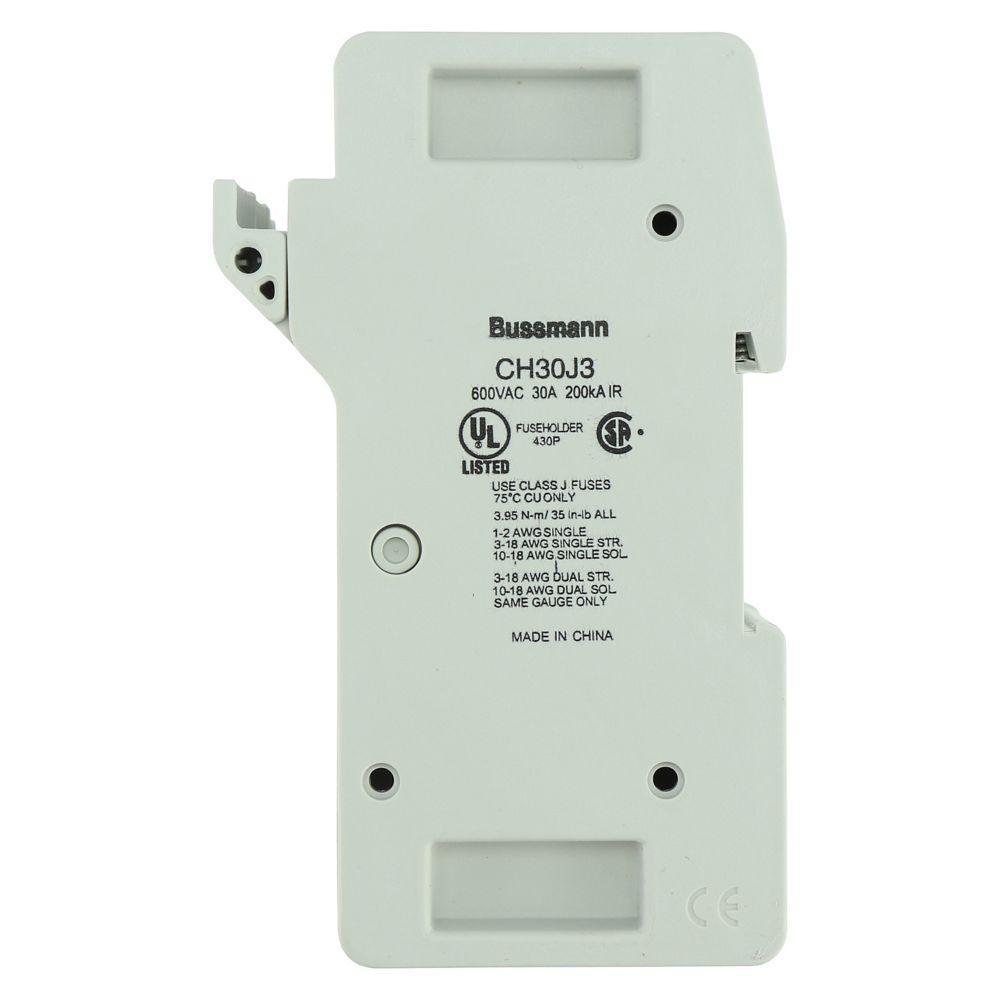

Bussmann CH30J3 Fuse Holder
Part Number # CH30J3
SKU # 2236339
$558.14 / 2Each
Bussmann CH30J3 Key Features
Brand: Bussmann
Part Number # CH30J3
SKU #2236339
Amperage Rating: 30, 30 A
Class: J
Dimensions: 3.84 in L x 2.83 in W x 4.59 in H
Fuse Diameter: 0.81, 0.81 in
Fuse Length: 2-1/4, 2-1/4 in
Number of Phases: 3
Number of Poles: 3
Series: CH Series
Suitable For Use With: LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed Class J Fuse, LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed J Fuse
Temperature Rating (Degrees F): 85, 85 deg C
Type: Finger Safe Modular
Voltage Rating: 600, 600 VAC/VDC
Wire Size: 18 to 1, 18 to 1 AWG
Color: White
Connection type: Box Lug
Material: Thermoplastic
Mounting type: DIN Rail/Panel
Manufacturer Name: Eaton
UNSPSC: 39121624
UPC: 00051712630863
$558.14 / 2Each
Bussmann CH30J3 Fuse Holder
Brand: Bussmann
Part Number: CH30J3
Bussmann easyID Fuse Holder, Finger Safe Modular, Series: CH Series, 600 VAC/VDC, 30 A, 3 Pole, 3, Class: J, Box Lug, 18 to 1 AWG Wire, DIN Rail/Panel Mount, 2-1/4 in Fuse Length, 0.81 in Fuse Dia, 85 deg C, For Use With: LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed J Fuse, Thermoplastic, White, 3.84 in L x 2.83 in W x 4.59 in H
Additional Description: BUSS-CH30J3 30AJ MODULAR FUSEHOLDER 3 POLE
Catalog Description: Eaton Bussmann series CH modular fuse holder, 30 A, Three-pole, 85, Celsius, Class J, Tin-plated copper clip, Thermoplastic housing, Panel, 35 mm DIN rail, 600 Vac/dc
CH30J3 Application
Electrical Assemblies, Panels and OEMs ApplicationsCH30J3 Item Features
- easyID window to view indicator on Cooper Bussmann
- Improved electrical safety with IP20 finger safe construction with lockout or tagout feature
- 3 ph fuse extraction assures all phases are opened for service work
- Tin plated copper clip
- https://www.youtube.com/watch?v=YMvqUyoETXk
CH30J3 Standards
CE Certified|CSA C22.2 No. 39/6225-01|CSA File No. LR47235|IEC 60529|RoHS Compliant|UL 512|UL File No. E14853|UL Guide IZLTSKU #2236339Part Number #CH30J3UNSPSC39121624UPC00051712630863
