Part Number # CH30J3I
SKU # 1715752
Image Disclaimers Message
CH30J3I

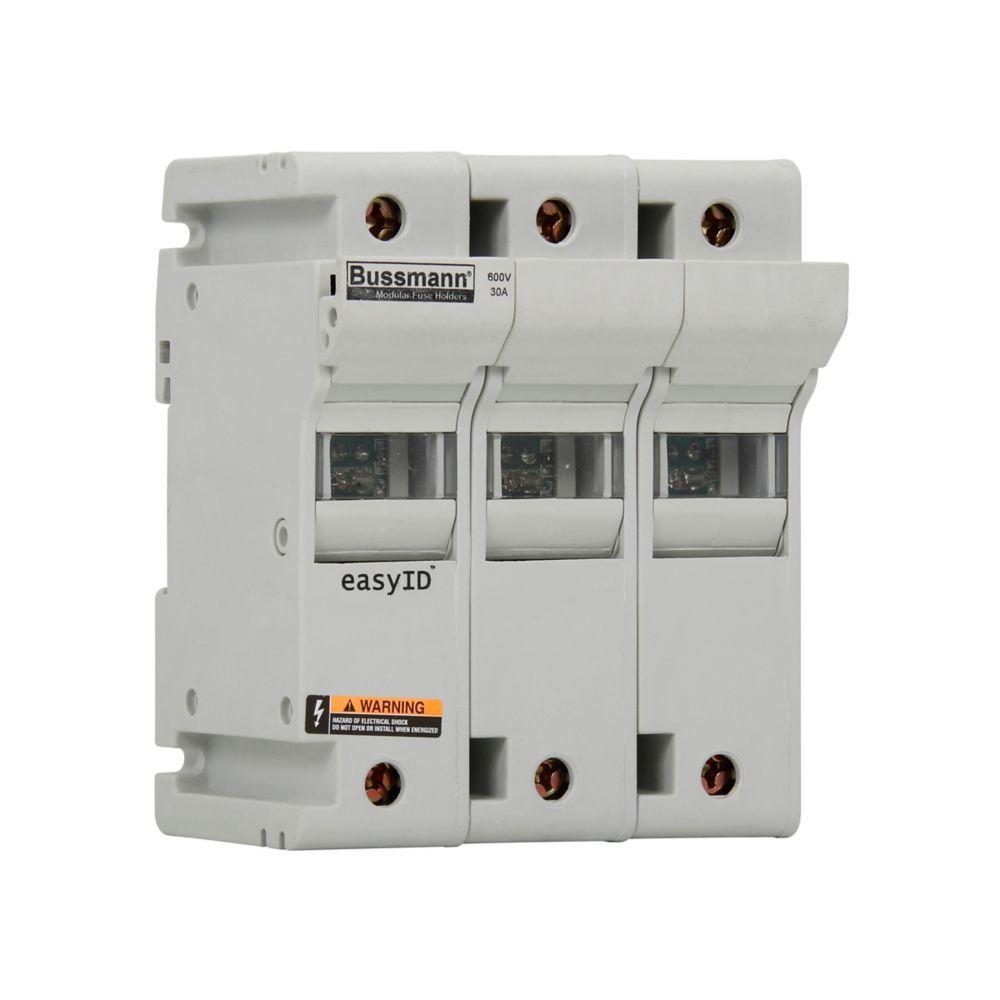

Bussmann CH30J3I Fuse Holder
Part Number # CH30J3I
SKU # 1715752
$316.40 / Each
Typical price:$643.40 / Each
Bussmann CH30J3I Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CH30J3I |
| SKU #: | 1715752 |
| Amperage Rating: | 30, 30 A |
| Class: | J |
| Dimensions: | 3.84 in L x 2.83 in W x 4.59 in H |
| Fuse Diameter: | 0.81, 0.81 in |
| Fuse Length: | 2-1/4, 2-1/4 in |
| Number of Phases: | 3 |
| Number of Poles: | 3 |
| Series: | CH Series |
| Suitable For Use With: | LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed Class J Fuse, LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed J Fuse |
| Temperature Rating (Degrees F): | 85, 85 deg C |
| Type: | Finger Safe Modular |
| Wire Size: | 18 to 1, 18 to 1 AWG |
| Color: | White |
| Connection type: | Box Lug |
| Country of origin: | CN |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712630870 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$316.40 / Each
Typical price:$643.40 / Each
Quantity:
- Bussmann easyID Fuse Holder, Finger Safe Modular, Series: CH Series, 600 V AC/DC, 30 A, 3 Pole, 3, Class: J, Box Lug, 18 to 1 AWG Wire, DIN Rail/Panel Mount, 2-1/4 in Fuse Length, 0.81 in Fuse Dia, 85 deg C, For Use With: LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed J Fuse, Thermoplastic, White, 3.84 in L x 2.83 in W x 4.59 in H
CH30J3I Application
Electrical Assemblies, Panels and OEMs ApplicationsCH30J3I Item Features
- Neon lamp open fuse indicator
- Improved electrical safety with IP20 finger safe construction with lockout or tagout feature
- 3 ph fuse extraction assures all phases are opened for service work
- Tin plated copper clip
- https://www.youtube.com/watch?v=YMvqUyoETXk
CH30J3I Standards
CE Certified|CSA C22.2 No. 39/6225-01|CSA File No. LR47235|IEC 60529|RoHS Compliant|UL 512|UL File No. E14853|UL Guide IZLTSKU #1715752Part Number #CH30J3IUNSPSC39121624UPC00051712630870
