CH60J2I

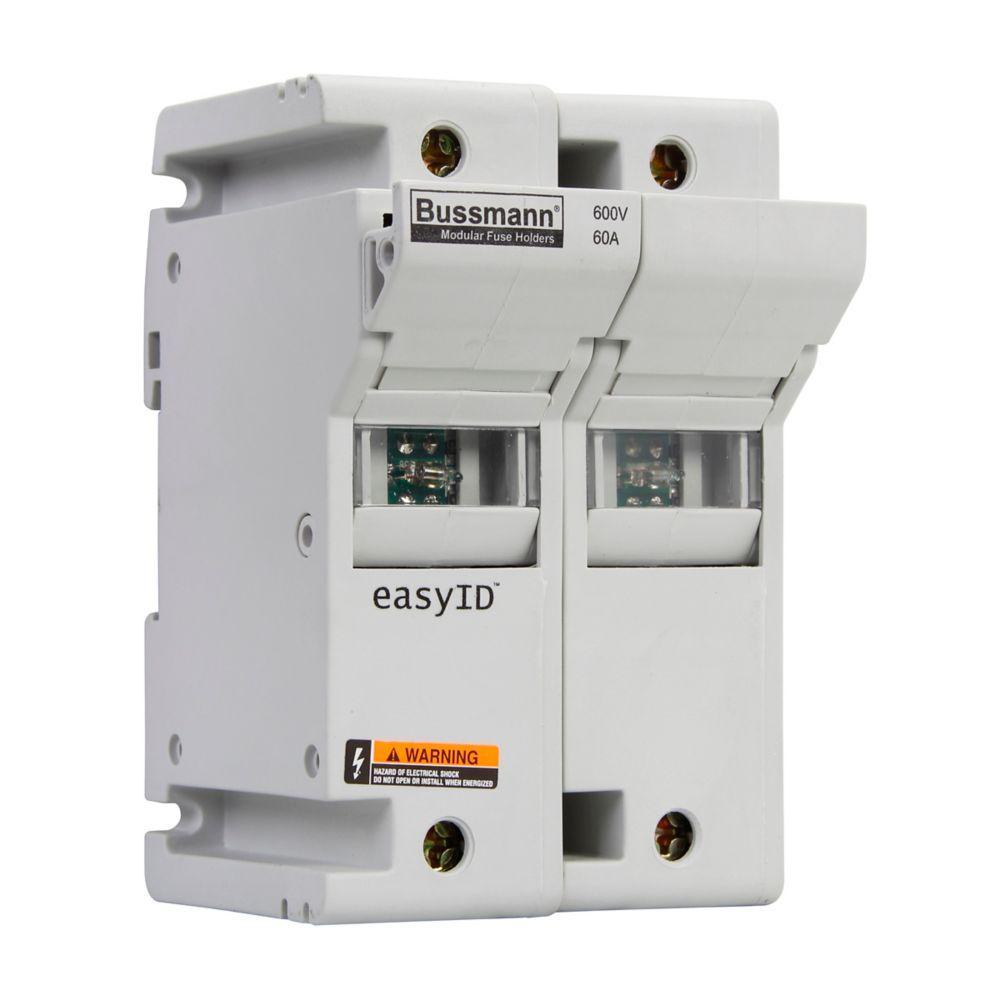

Bussmann CH60J2I Fuse Holder
Part Number # CH60J2I
SKU # 2151823
Bussmann CH60J2I Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CH60J2I |
| SKU #: | 2151823 |
| Amperage Rating: | 60 A |
| Class: | J |
| Dimensions: | 3.16 in L x 3.31 in W x 4.88 in H |
| Fuse Diameter: | 1.06, 1.06 in |
| Fuse Length: | 2.38, 2.38 in |
| Number of Phases: | 3 |
| Number of Poles: | 2 |
| Series: | CH, CH Series |
| Suitable For Use With: | LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series Class J High Speed Fuse, LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed Class J Fuse |
| Temperature Rating (Degrees F): | 85, 85 deg C |
| Type: | Finger Safe Modular |
| Wire Size: | 18 to 1, 18 to 1 AWG |
| Connection type: | Box Lug |
| Country of origin: | CN |
| Material: | Copper/Thermoplastic, Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712630924 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann CH60J2I Fuse Holder
Brand: Bussmann
Part Number: CH60J2I
Bussmann easyID Fuse Holder, Finger Safe Modular, Series: CH, 600 VAC/VDC, 60 A, 2 Pole, 3, Class: J, Box Lug, 18 to 1 AWG Wire, DIN Rail/Panel Mount, 2.38 in Fuse Length, 1.06 in Fuse Dia, 85 deg C, For Use With: LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series Class J High Speed Fuse, Copper/Thermoplastic, White, 3.16 in L x 3.31 in W x 4.88 in H
Additional Description: BUSS-CH60J2I 60A INDICATOR FUSEHOLDER 2 POLE
Catalog Description: Eaton Bussmann series CH modular fuse holder, 60 A, Two-pole, 85, Celsius, Class J, Thermoplastic housing, Tin-plated copper clip, Panel, 35 mm DIN rail, 600 Vac/dc
CH60J2I Application
Electrical Assemblies, Panels and EOEMs ApplicationsCH60J2I Item Features
- Neon lamp open fuse indicator
- Improved electrical safety with IP20 finger safe construction with lock out/tag out feature
- 3 ph fuse extraction assures all phases are opened for service work
- Tin plated copper clip
- https://www.youtube.com/watch?v=YMvqUyoETXk
CH60J2I Standards
Contact Manufacturer ,UL Listed ,CSA Certified,RoHS Compliant,CE MarkedSKU #2151823Part Number #CH60J2IUNSPSC39121624UPC00051712630924
