Part Number # CHCC1DIU
SKU # 2222401
Image Disclaimers Message
Brand: Bussmann
CHCC1DIU

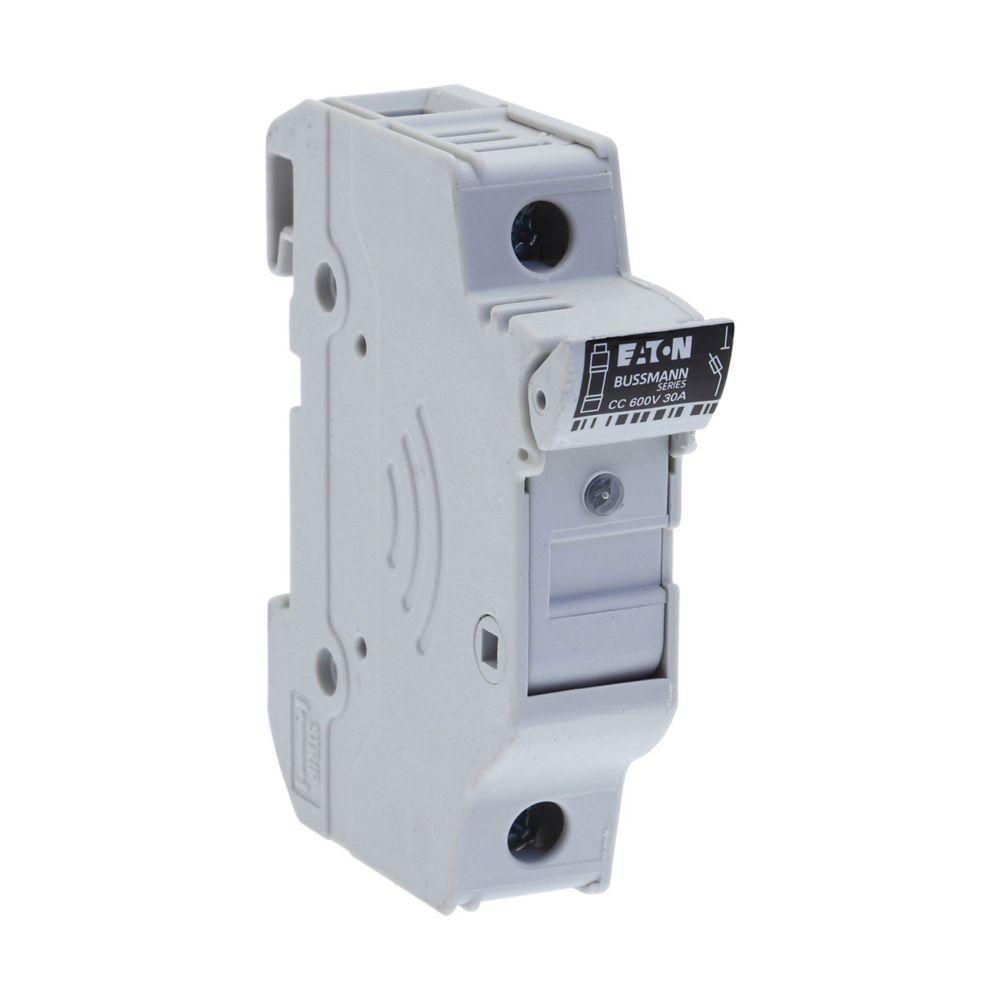

Bussmann CHCC1DIU Fuse Holder
Part Number # CHCC1DIU
SKU # 2222401
$57.81 / Each
Typical price:$125.06 / Each
Bussmann CHCC1DIU Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CHCC1DIU |
| SKU #: | 2222401 |
| Amperage Rating: | 30, 30 A |
| Class: | CC |
| Dimensions: | 0.689 in W x 3.275 in D x 2.909 in H, 2.909 in H x 0.689 in W x 3.275 in D |
| Fuse Diameter: | 10, 10 mm |
| Fuse Length: | 38, 38 mm |
| Number of Phases: | 1/3 |
| Number of Poles: | 1 |
| Series: | CH Series |
| Suitable For Use With: | KTK-R, LP-CC and FNQ-R Series CC Fuse, KTK-R, LP-CC and FNQ-R Series Class CC Fuse, KTK-R/LP-CC/FNQ-R Series Class CC Fuse |
| Temperature Rating (Degrees F): | -20 to 90, -20 to 90 deg C |
| Type: | Finger Safe Modular, Finger-Safe |
| Wire Size: | 18 to 4, 18 to 4 AWG |
| Color: | White |
| Connection type: | Spade Lug |
| Material: | Polyester |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712362665 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$57.81 / Each
Typical price:$125.06 / Each
Quantity:
- Bussmann Fuse Holder, Finger Safe Modular, Series: CH Series, 48 V DC, 30 A, 1 Pole, Class: CC, Fuse Holder Code: W, Spade Lug, 18 to 4 AWG Wire, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: KTK-R, LP-CC and FNQ-R Series CC Fuse, Polyester, White, 0.689 in W x 3.275 in D x 2.909 in H
CHCC1DIU Application
Electrical Assemblies, Electrical System Applications, Panels and OEMsCHCC1DIU Item Features
- Withstands 200 kA (RMS Symmetrical) interrupt rating
- Tool less ganging for multiple poles
- Wire strip gauge
- Captive fully backed out Phillips slotted screw
- 18 to 4 AWG copper wire
- https://www.youtube.com/watch?v=YMvqUyoETXk
CHCC1DIU Standards
CCC Certified|CSA 47235|CSA 6225-01|RoHS Compliant|UL File No. E14853|UL Guide IZLT/IZLT2SKU #2222401Part Number #CHCC1DIUUNSPSC39121624UPC00051712362665
