Part Number # CHCC2DU
SKU # 2238252
Image Disclaimers Message
Brand: Bussmann
CHCC2DU

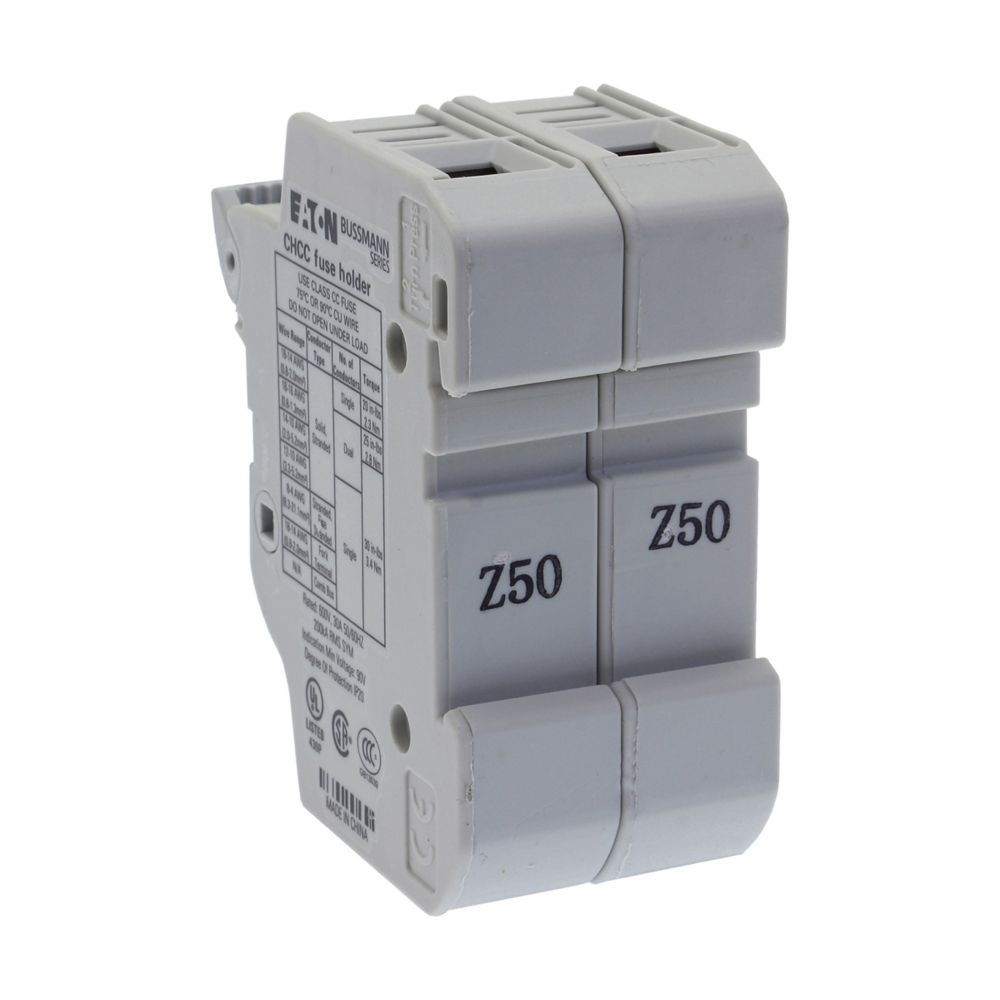

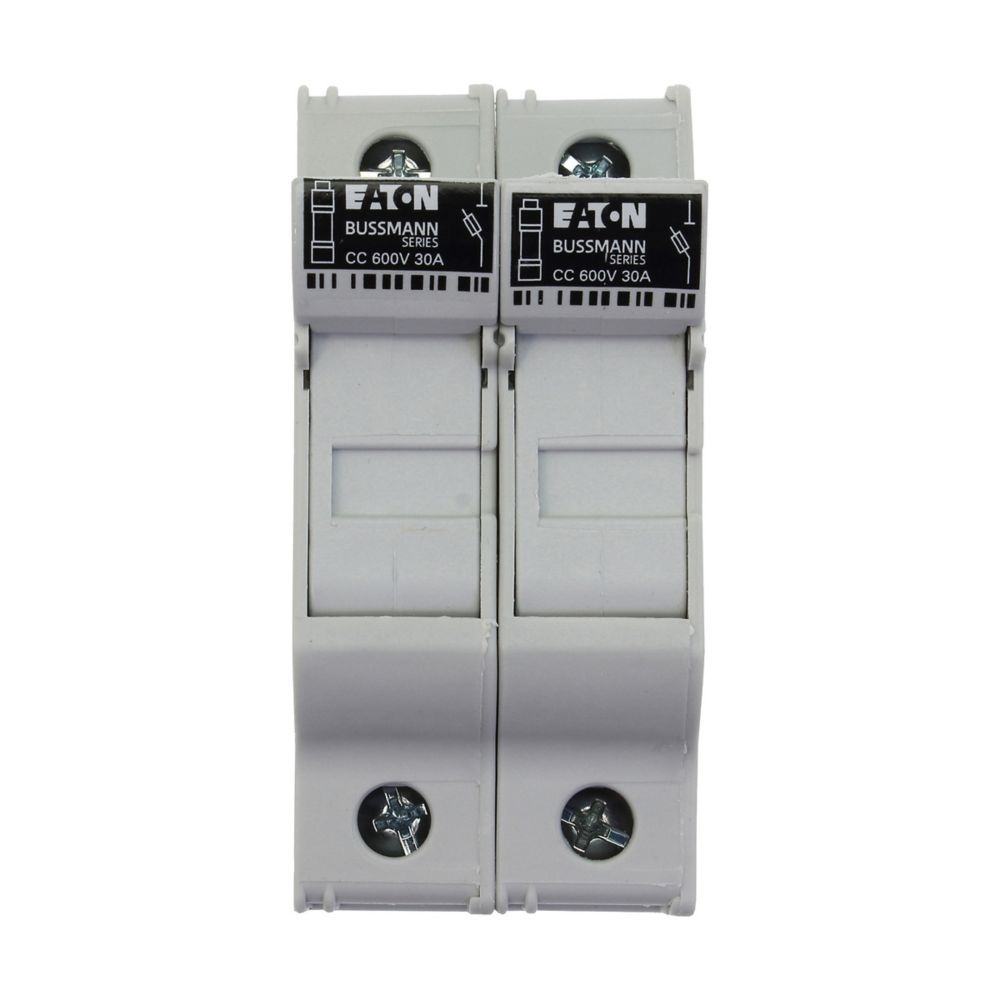

Bussmann CHCC2DU Fuse Holder
Part Number # CHCC2DU
SKU # 2238252
$513.66 / 6Each
Typical price:$1044.60 / Each
Bussmann CHCC2DU Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CHCC2DU |
| SKU #: | 2238252 |
| Amperage Rating: | 30 A |
| Class: | CC |
| Dimensions: | 1.378 in W x 3.275 in D x 2.909 in H |
| Fuse Diameter: | 10 mm |
| Fuse Length: | 38 mm |
| Number of Poles: | 2 |
| Series: | CH Series |
| Suitable For Use With: | KTK-R, LP-CC and FNQ-R Fuse |
| Temperature Rating (Degrees F): | -20 to 120 deg C |
| Type: | Modular |
| Wire Size: | 18 to 4 AWG |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712362672 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$513.66 / 6Each
Typical price:$1044.60 / Each
Quantity:
- Bussmann Fuse Holder, Modular, Series: CH Series, 48 V DC, 30 A, 2 Pole, Class: CC, 18 to 4 AWG Wire, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 120 deg C, For Use With: KTK-R, LP-CC and FNQ-R Fuse, 1.378 in W x 3.275 in D x 2.909 in H
CHCC2DU Application
Electrical Assemblies, Panels and OEMs ApplicationsCHCC2DU Item Features
- High SCCR rated, UL listed class CC holder with indicator option for 600 VAC/VDC and 48 VDC
- Complete range of UL listed and high SCCR rated 1/3 ph finger safe combination busbars and power feed lugs
- https://www.youtube.com/watch?v=YMvqUyoETXk
CHCC2DU Standards
CCC Certified|CSA Certified|RoHS Compliant|UL 94-V-0 Flammability Rating|UL ListedSKU #2238252Part Number #CHCC2DUUNSPSC39121624UPC00051712362672
