Brand: Bussmann

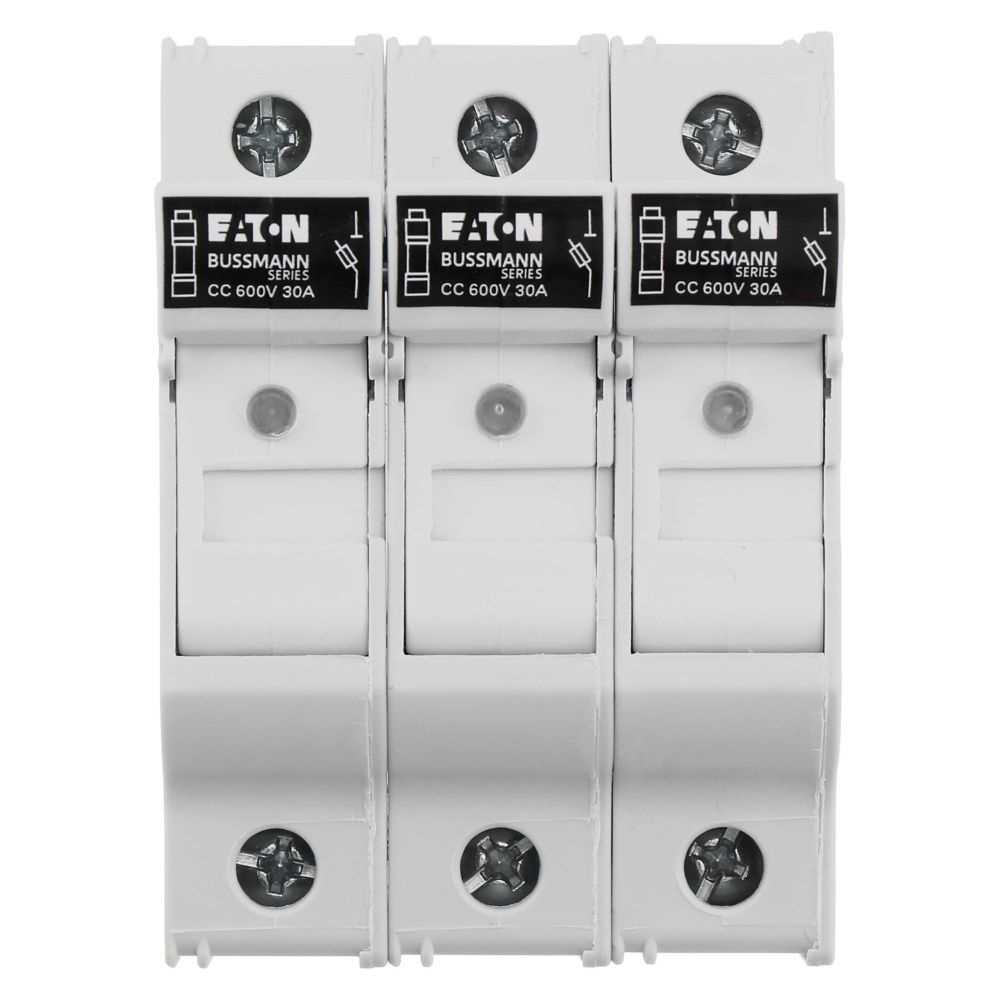

Bussmann CHCC3DIU Modular Fuse Holder
Part Number # CHCC3DIU
SKU # 2224115
$182.83 / Each
28 In Stock
Ships in 1 Business Day
Bussmann CHCC3DIU Key Features
Brand: Bussmann
Part Number # CHCC3DIU
SKU #2224115
Amperage Rating: 30, 30 A
Class: CC
Dimensions: 2.067 in W x 3.275 in D x 2.909 in H, 2.909 in H x 2.067 in W x 3.275 in D
Fuse Diameter: 10, 10 mm
Fuse Length: 38, 38 mm
Number of Phases: 1/3
Number of Poles: 3
Series: CH Series
Suitable For Use With: KTK-R, LP-CC and FNQ-R Series CC Fuse, KTK-R, LP-CC and FNQ-R Series Class CC Fuse, KTK-R/LP-CC/FNQ-R Series Class CC Fuse
Temperature Rating (Degrees F): -20 to 90, -20 to 90 deg C
Type: Finger Safe Modular, Finger-Safe
Voltage Rating: 48, 48 VDC, 600 VAC/48 VDC, 600 VDC
Wire Size: 18 to 4, 18 to 4 AWG
Color: White
Connection type: Spade Lug
Material: Polyester
Mounting type: DIN Rail
Manufacturer Name: Eaton
UNSPSC: 39121624
UPC: 00051712362702
$182.83 / Each
Bussmann CHCC3DIU Modular Fuse Holder
Brand: Bussmann
Part Number: CHCC3DIU
Bussmann Fuse Holder, Finger Safe Modular, Series: CH Series, 48 VDC, 30 A, 3 Pole, Class: CC, Fuse Holder Code: W, Spade Lug, 18 to 4 AWG Wire, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: KTK-R, LP-CC and FNQ-R Series CC Fuse, Polyester, White, 2.067 in W x 3.275 in D x 2.909 in H
Additional Description: BUSS-CHCC3DIU CCP CC-indicator
Catalog Description: Eaton Bussmann series CHCC modular fuse holder, 48 Vdc, 30 A, Three-pole, With indicator
CHCC3DIU Application
Electrical Assemblies, Electrical System Applications, Panels and OEMsCHCC3DIU Item Features
- Withstands 200 kA (RMS Symmetrical) interrupt rating
- Tool less ganging for multiple poles
- Wire strip gauge
- Captive fully backed out Phillips slotted screw
- 18 to 4 AWG copper wire
- https://www.youtube.com/watch?v=YMvqUyoETXk
CHCC3DIU Standards
CCC Certified|CSA 47235|CSA 6225-01|RoHS Compliant|UL File No. E14853|UL Guide IZLT/IZLT2SKU #2224115Part Number #CHCC3DIUUNSPSC39121624UPC00051712362702
