Brand: Bussmann

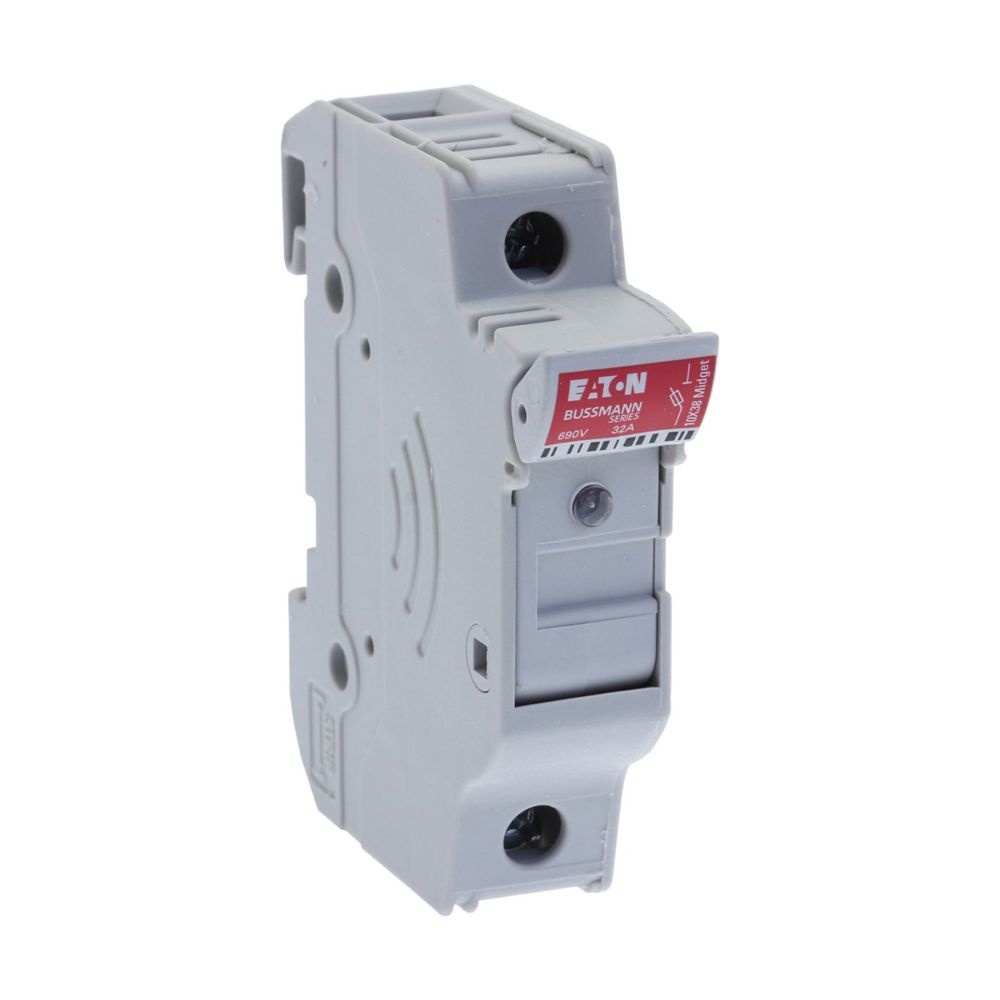

Bussmann CHM1DIU Fuse Holder
Part Number # CHM1DIU
SKU # 2225366
$55.30 / Each
50 In Stock
Ships in 1 Business Day
Bussmann CHM1DIU Key Features
Brand: Bussmann
Part Number # CHM1DIU
SKU #2225366
Amperage Rating: 30/32, 30/32 A
Class: Midget
Dimensions: 0.689 in W x 3.275 in D x 2.909 in H, 2.909 in H x 0.689 in W x 3.275 in D
Fuse Diameter: 10, 10 mm
Fuse Length: 38, 38 mm
Number of Poles: 1
Series: CH Series
Suitable For Use With: AGU, C10G, C10M, BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, CHM Fuse, AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse, FNQ, KLM, FNM, KTK, BAF, FWA, DCM, C10, AGU, BAN, FWC 10 x 38 mm Midget Fuses
Temperature Rating (Degrees F): -20 to 90, -20 to 90 deg C
Type: Modular
Voltage Rating: 600/690, 600/690 V
Wire Size: 18 to 4, 18 to 4 AWG
Mounting type: DIN Rail
Manufacturer Name: Eaton
UNSPSC: 39121624
UPC: 00051712362757
$55.30 / Each
Bussmann CHM1DIU Fuse Holder
Brand: Bussmann
Part Number: CHM1DIU
Bussmann Fuse Holder, Modular, Series: CH Series, 600/690 V, 30/32 A, 1 Pole, Class: Midget, 18 to 4 AWG Wire, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse, 0.689 in W x 3.275 in D x 2.909 in H
Additional Description: BUSS-CHM1DIU 1P 10X38MFH30A 600VMidget -indicator/Neu INDICATING
Catalog Description: Eaton Bussmann series CHM modular fuse holder, 600V (UL), 690V (IEC), 30A (UL), 32A (IEC), Modular fuse holder, Single-pole - CHM1DIU
CHM1DIU Application
Electrical Assemblies, Panels and OEMs ApplicationsCHM1DIU Item Features
- UL Recognized midget and 10 x 38 holders with factory assembled neutral pole option
- Complete range of UL listed and high SCCR rated 1/3 ph finger safe combination busbars and power feed lugs
- 30 A, 600 VAC UL, 32 A, 690 VAC IEC rated
- https://www.youtube.com/watch?v=YMvqUyoETXk
CHM1DIU Standards
CCC Certified|CSA Certified|IEC 60269-2|RoHS Compliant|UL 94-V-0 Flammability Rating|UL Listed|UL RecognizedSKU #2225366Part Number #CHM1DIUUNSPSC39121624UPC00051712362757
